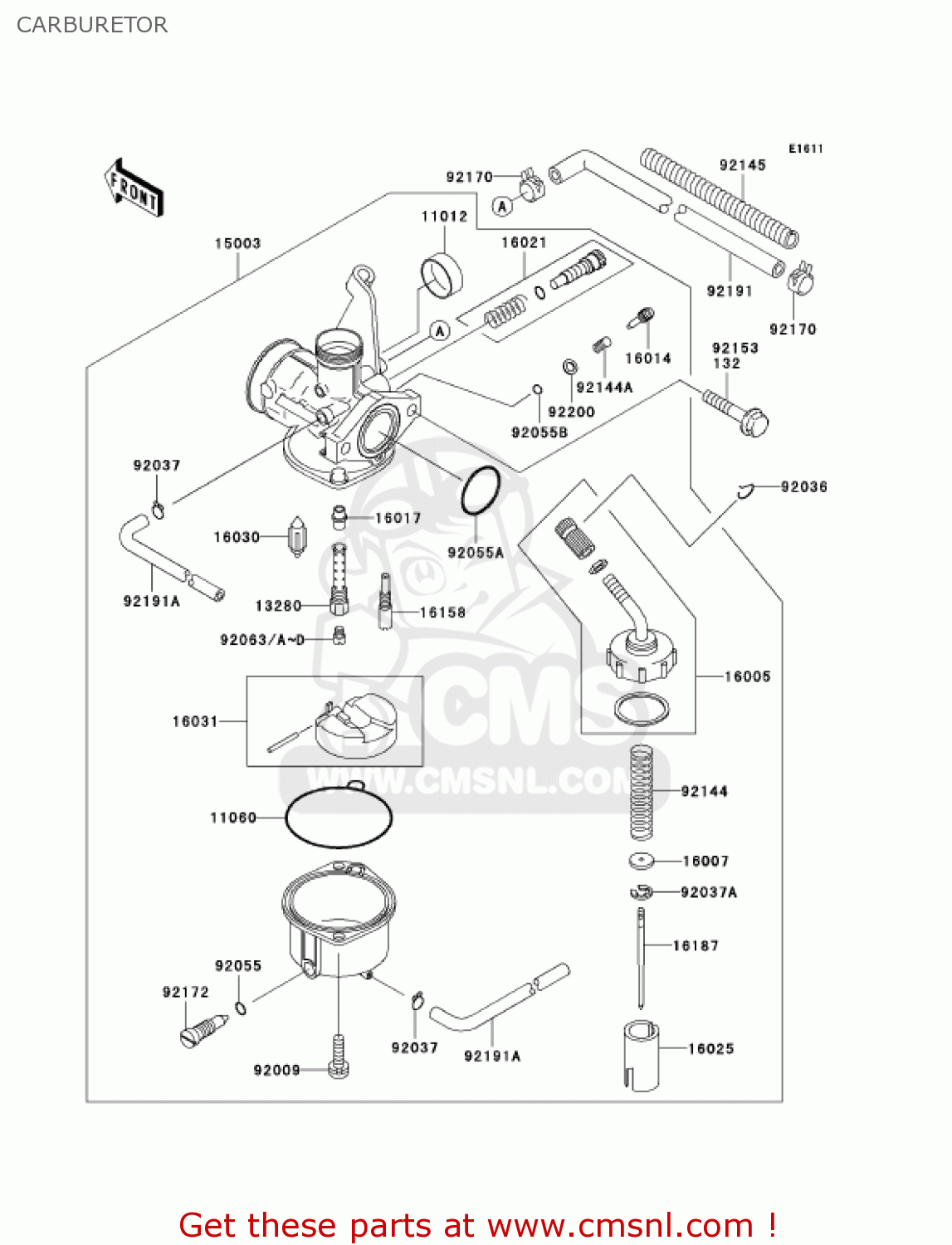

CARBURETOR

ref

part #

description

quantity

132

132Y0630
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

11012

110121940
ref: 11012

CAP,CHOKE

€ 7.00

11060

110601700
ref: 11060

GASKET,FLOAT CHAMBER (NAS)

€ 15.00

13280

132801092
ref: 13280

HOLDER,NEEDLE JET

€ 10.50

15003

150031694
ref: 15003

CARBURETOR-ASSY

€ 206.50

16005

160051091
ref: 16005

TOP-CHAMBER

€ 16.50

16007

160071103
ref: 16007

SEAT-SPRING

€ 4.00

16014

160141093
ref: 16014

SCREW-PILOT AIR

€ 11.00

16017

160171434
ref: 16017

JET-NEEDLE

€ 35.50

16021

160211241
ref: 16021

SCREW-THROTTLE STOP

€ 12.00

16025

160251209
ref: 16025

VALVE-THROTTLE,CA3.0

€ 85.50

16030

160301082
ref: 16030

VALVE-FLOAT,FLOAT

€ 42.50

16031

160311088
ref: 16031

FLOAT

€ 40.50

16158

161581063
ref: 16158

JET-SLOW,#38

€ 10.50

16187

161871228
ref: 16187

NEEDLE-JET,NCFA

€ 26.50

92009

920091750
ref: 92009

SCREW, 4X8

€ 2.00

92036

92036018
ref: 92036

CIRCLIP

€ 2.50

92037

920371142
ref: 92037

CLAMP,TUBE

€ 2.50

92037A

920371401
ref: 92037A

CLAMP,JET NEEDLE

€ 2.50

92055

920551053
ref: 92055

O RING,DRAIN SCREW

€ 3.00

92055A

920551541
ref: 92055A

RING-O

€ 2.00

92055B

920551542
ref: 92055B

RING-O

€ 2.50

92063

920631326
ref: 92063
(OPTION)

JET-MAIN,#85

€ 10.00

92063A

920631393
ref: 92063A
(OPTION)

JET-MAIN,#78

€ 9.50

92063B

920631395
ref: 92063B
(OPTION)

JET-MAIN,#75

€ 9.50

92063C

920631396
ref: 92063C

JET-MAIN,#80

€ 9.50

92063D

920631397
ref: 92063D
(OPTION)

JET-MAIN,#82

€ 9.50

92144

921441875
ref: 92144

SPRING,THROTTLE

€ 11.00

92144A

921441876
ref: 92144A

SPRING

€ 3.50

92145

921451481
ref: 92145

SPRING,HOSE PROTECTER

€ 3.50

92170

921701872
ref: 92170

CLAMP

€ 1.50

92172

921721057
ref: 92172

SCREW,DRAIN

€ 7.00

92191

921911700
ref: 92191

TUBE,FUEL

€ 11.50

92191A

921911735
ref: 92191A

TUBE,3.5X6.5X418

€ 12.50

92200

922001270
ref: 92200

WASHER

€ 2.00

all assemblies
