RADIATOR
KLE500A8 1998 SWEDEN

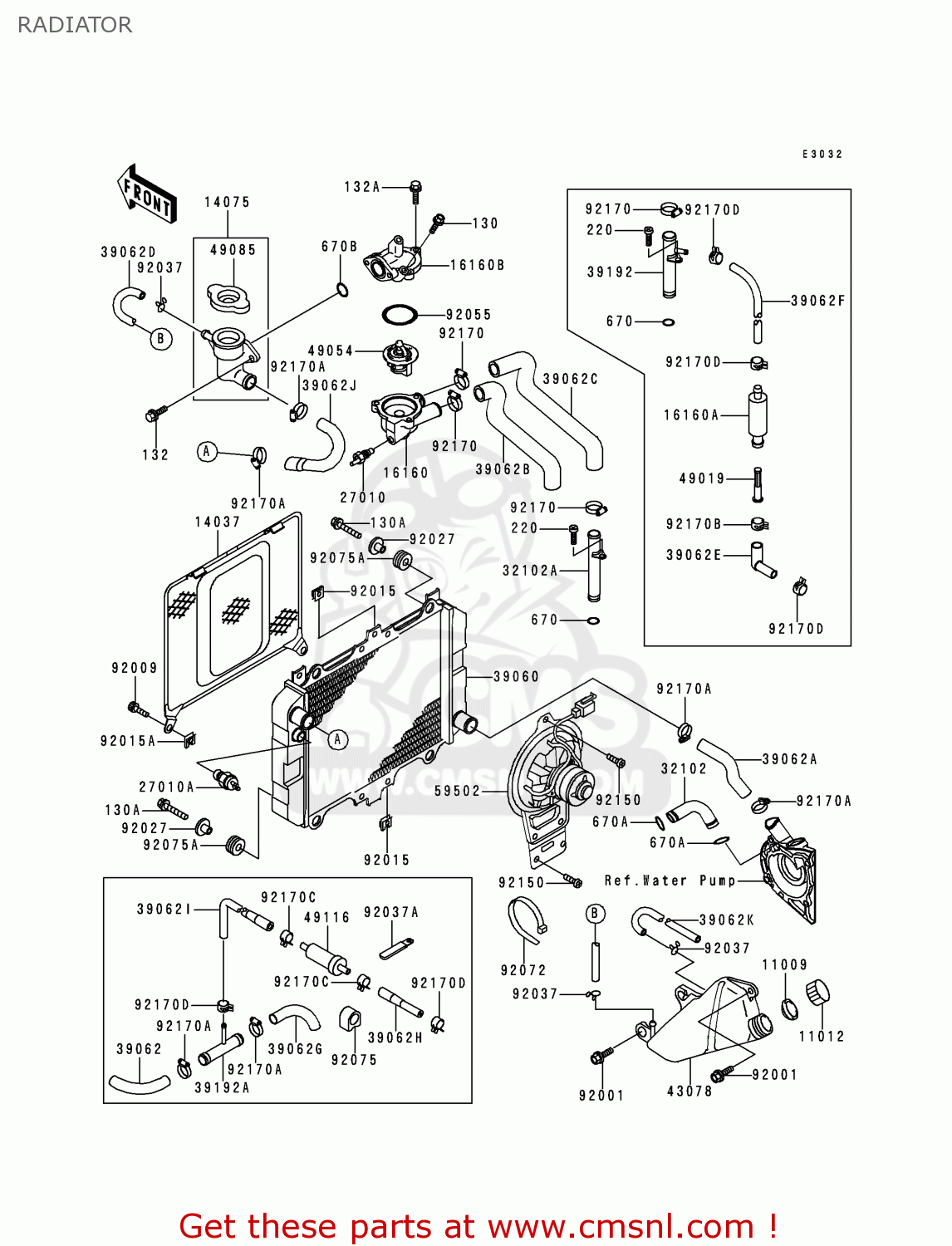

Radiator diagram KLE500A8 1998 SWEDEN
RADIATOR KLE500A8 1998 SWEDEN
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14037
140371143
ref: 14037
SCREEN
€ 69.50
14075
140751085
ref: 14075
CAP-ASSY,RADIATOR
€ 120.00
16160
161601138
ref: 16160
BODY,THERMOSTAT,LWR
€ 24.50
16160B
161601170
ref: 16160B
BODY,THERMOSTAT,UPP
€ 49.00
27010
270101239
ref: 27010
SWITCH,SENSOR WATER
€ 104.50
27010A
270101304
ref: 27010A
SWITCH,THERMOSTAT
€ 63.00
32102
321021405
ref: 32102
PIPE,PUMP-CYLINDER
€ 29.50
32102A
321021473
ref: 32102A
PIPE
€ 25.50
39060
390601084
ref: 39060
RADIATOR
€ 681.50
39062A
390621222
ref: 39062A
HOSE-COOLING,RADIATOR
€ 18.00
39062B
390621224
ref: 39062B
HOSE-COOLING,THERMO-H
€ 20.50
39062C
390621225
ref: 39062C
HOSE-COOLING,THERMO-H
€ 24.00
39062D
390621226
ref: 39062D
HOSE-COOLING
€ 25.00
39062J
390621460
ref: 39062J
HOSE-COOLING
€ 21.50
39062K
390621488
ref: 39062K
HOSE-COOLING
€ 8.00
43078
430781123
ref: 43078
RESERVOIR
€ 36.00
49054
490541059
ref: 49054
THERMOSTAT
€ 41.50
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
59502
595021070
ref: 59502
FAN-ASSY
€ 570.50
92001
920011771
ref: 92001
BOLT,6X12
€ 2.50
92009
920091480
ref: 92009
SCREW
€ 2.00
92015
920151487
ref: 92015
NUT
€ 3.00
92015A
920151758
ref: 92015A
NUT
€ 4.50
92027
920271651
ref: 92027
COLLAR
€ 2.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92055
920551279
ref: 92055
RING-O,45MM
€ 4.50
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
130
130B0614
ref: 130
BOLT-FLANGED
€ 0.50
130A
130J0620
ref: 130A
BOLT-FLANGED,6X20
€ 2.50
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
132A
132G0620
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
670
670B2014
ref: 670
O RING,14MM
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
€ 1.00
670B
670B2020
ref: 670B
O RING,20MM
€ 1.00
92075A
92075277
ref: 92075A
DAMPER
€ 1.00
92150
921501186
ref: 92150
BOLT
€ 3.00
92170
921701077
ref: 92170
CLAMP,COOLING HOSE
€ 6.50
92170A
921701286
ref: 92170A
CLAMP
€ 13.00
