CYLINDER HEAD

KLE500A8 1998 SWEDEN

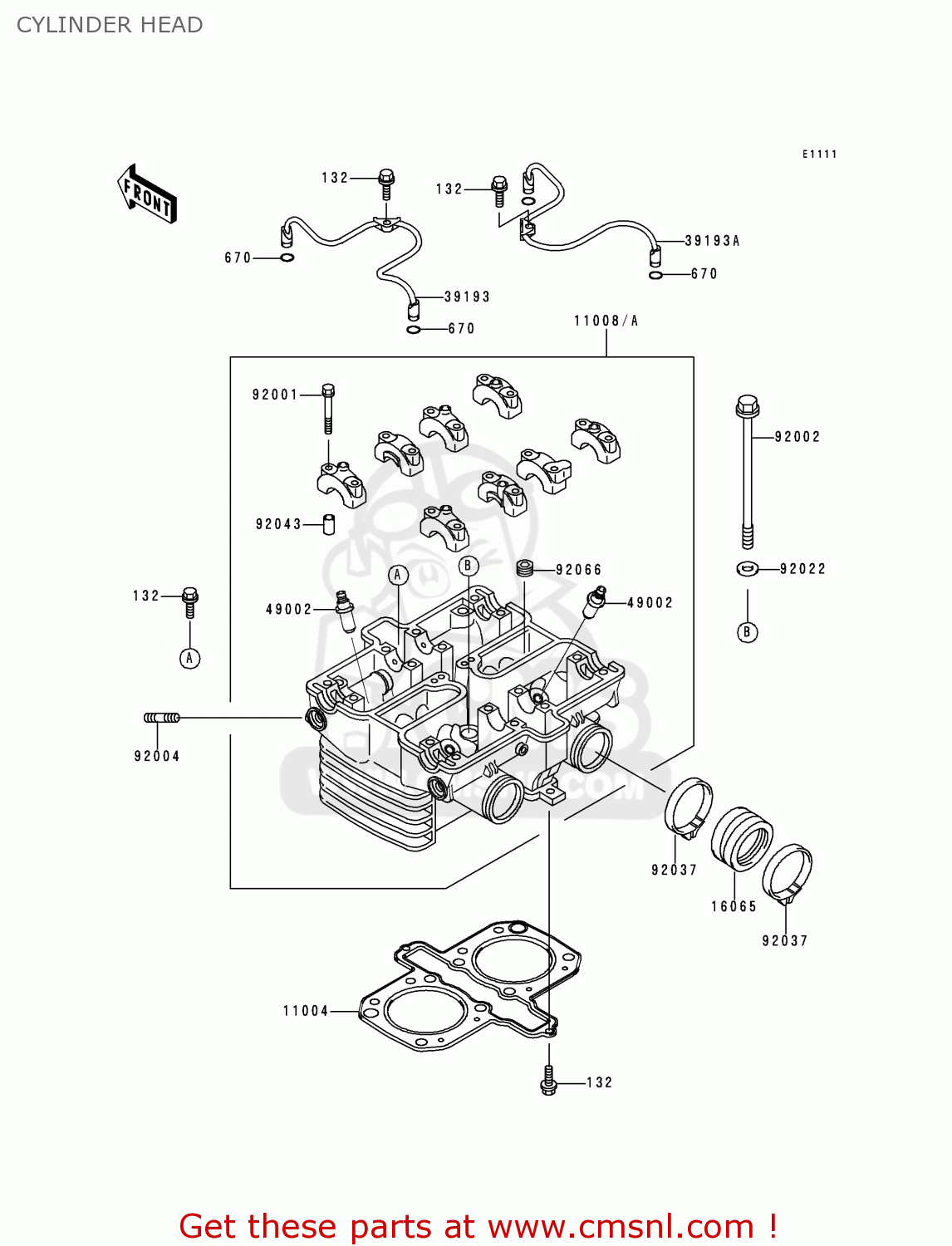

Cylinder head diagram KLE500A8 1998 SWEDEN

CYLINDER HEAD KLE500A8 1998 SWEDEN
CYLINDER HEAD KLE500A8 1998 SWEDEN
CYLINDER HEAD KLE500A8 1998 SWEDEN
prices are in EUR
ref
part #
description
quantity
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
132G0620
€ 1.50
670
670D1507
ref: 670
O RING,7MM
670D1507
€ 1.00
11004
110041159
ref: 11004
GASKET-HEAD (NAS)
110041159
€ 61.00
11008
110081258
ref: 11008
HEAD-COMP-CYLINDER
€ 1,383.50
16065
160651128
ref: 16065
HOLDER-CARBURETOR
160651128
€ 17.00
39193
391931038
ref: 39193
PIPE-OIL,LH
€ 44.00
39193A
391931039
ref: 39193A
PIPE-OIL,RH
391931039
€ 44.00
49002
490021052
ref: 49002
GUIDE-VALVE
490021052
€ 26.00
92001
920011872
ref: 92001
BOLT,6X46
920011872
€ 2.50
92002
920021943
ref: 92002
BOLT,10X164
920021943
€ 10.50
92004
920041214
ref: 92004
STUD
920041214
€ 3.50
92022
920221591
ref: 92022
WASHER,10.5X20X1.6
920221591
€ 3.00
92037
920371523
ref: 92037
CLAMP
920371523
€ 8.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92066
920661253
ref: 92066
PLUG,PT1/2X12.5
920661253
€ 6.50
