HANDLEBAR
KLE500A8 1998 SWEDEN

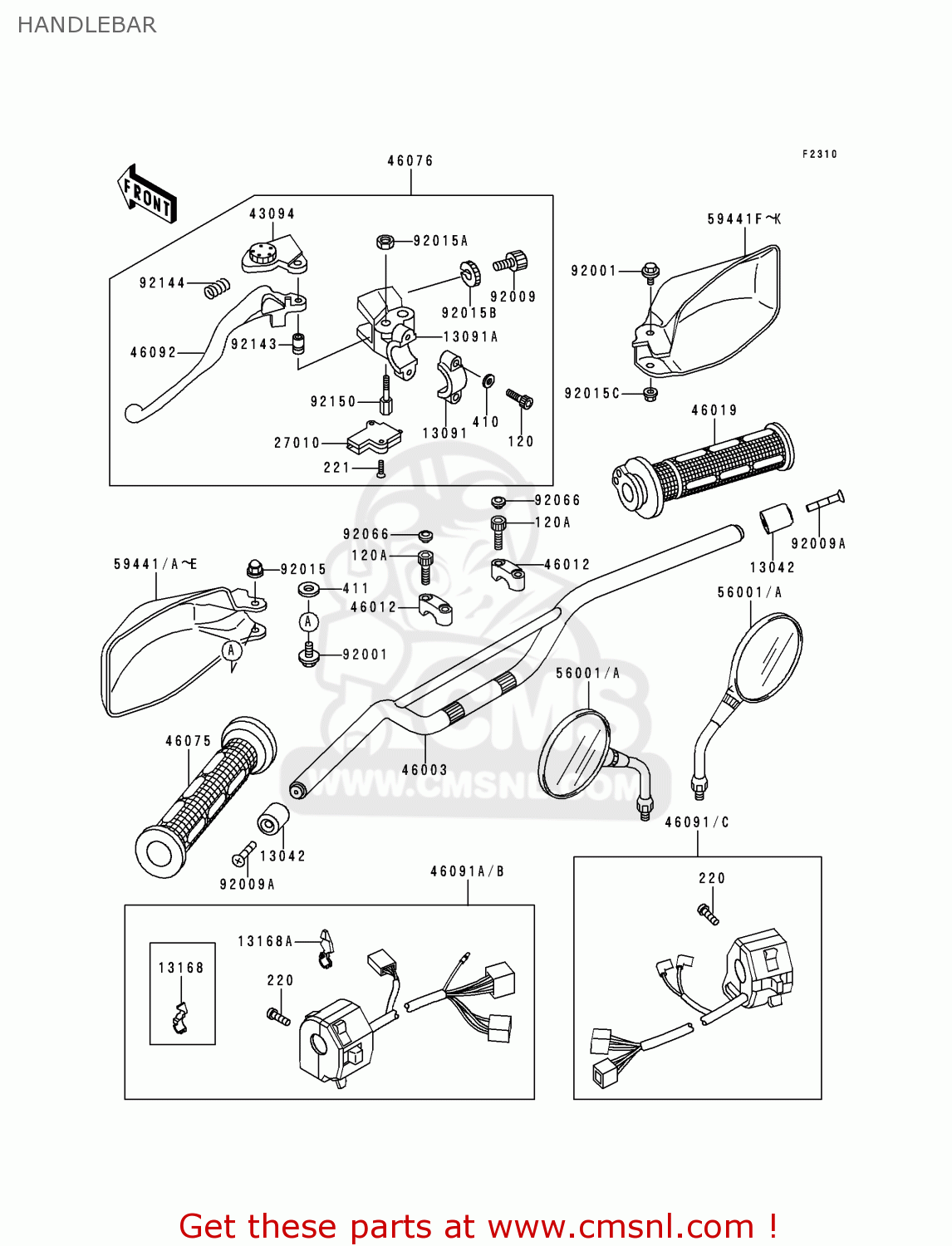

Handlebar diagram KLE500A8 1998 SWEDEN
HANDLEBAR KLE500A8 1998 SWEDEN
×
prices are in EUR
ref
part #
description
quantity
13042
130421077
ref: 13042
WEIGHT,HANDLE
€ 21.00
13091
130911624
ref: 13091
HOLDER,CLUTCH LEVER
€ 26.00
13091A
130911652
ref: 13091A
HOLDER,CLUTCH LEVER
€ 40.50
13168
131681374
ref: 13168
LEVER,CHOKE
€ 7.00
27010
270101094
ref: 27010
SWITCH,CLUTCH
€ 20.50
43094
430941053
ref: 43094
ADJUSTER,CLUTCH LEVER
€ 26.00
46003
460031350
ref: 46003
HANDLE
€ 112.50
46012
460121102
ref: 46012
HOLDER-HANDLE,UPP
€ 17.00
46019
460191077
ref: 46019
GRIP-ASSY,THROTTLE
€ 27.50
46075
460751088
ref: 46075
GRIP,LH
€ 11.50
46076
460761183
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 104.50
46091
460911566
ref: 46091
HOUSING-ASSY-CONTROL,
€ 146.50
46091A
460911567
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 148.00
46092
460921161
ref: 46092
LEVER-GRIP,CLUTCH
€ 14.00
56001
560011058
ref: 56001
MIRROR-ASSY
€ 86.50
59441
594411100BA
ref: 59441
COVER-HANDLE,LH,BLUE
€ 22.00
59441D
5944111006L
ref: 59441D
COVER-HANDLE,LH,F.RED
€ 18.50
59441F
594411101BA
ref: 59441F
COVER-HANDLE,RH,BLUE
€ 17.50
59441J
5944111016L
ref: 59441J
COVER-HANDLE,RH,F.RED
€ 18.00
92001
920011034
ref: 92001
BOLT,HEX HEAD,6X10
€ 7.00
92009
920091134
ref: 92009
SCREW,CBL ADJUST,8MM
€ 10.50
92009A
920091727
ref: 92009A
SCREW
€ 2.50
92015
920151153
ref: 92015
NUT,CAP,6M/M
€ 1.00
92015A
920151191
ref: 92015A
NUT,LOCK,6MM,BLACK
€ 2.00
92015B
920151197
ref: 92015B
NUT,CABLE ADJUST LOCK
€ 6.50
92015C
920151603
ref: 92015C
NUT
€ 3.00
92066
920661216
ref: 92066
PLUG,HANDLE HOLDER
€ 3.00
92143
921431379
ref: 92143
COLLAR
€ 6.50
92144
921441467
ref: 92144
SPRING
€ 4.00
92150
921501498
ref: 92150
BOLT
€ 16.00
120
120S0620
ref: 120
BOLT-SOCKET,6X20
€ 1.00
120A
120S0830
ref: 120A
BOLT-SOCKET,8X30,BLAC
€ 3.00
220
220C0520
ref: 220
SCREW-PAN-CROS
€ 0.50
221
221C0316
ref: 221
SCREW-CSK-CROS
€ 2.50
410
410F0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
