FRONT FORK
KLE500A8 1998 SWEDEN

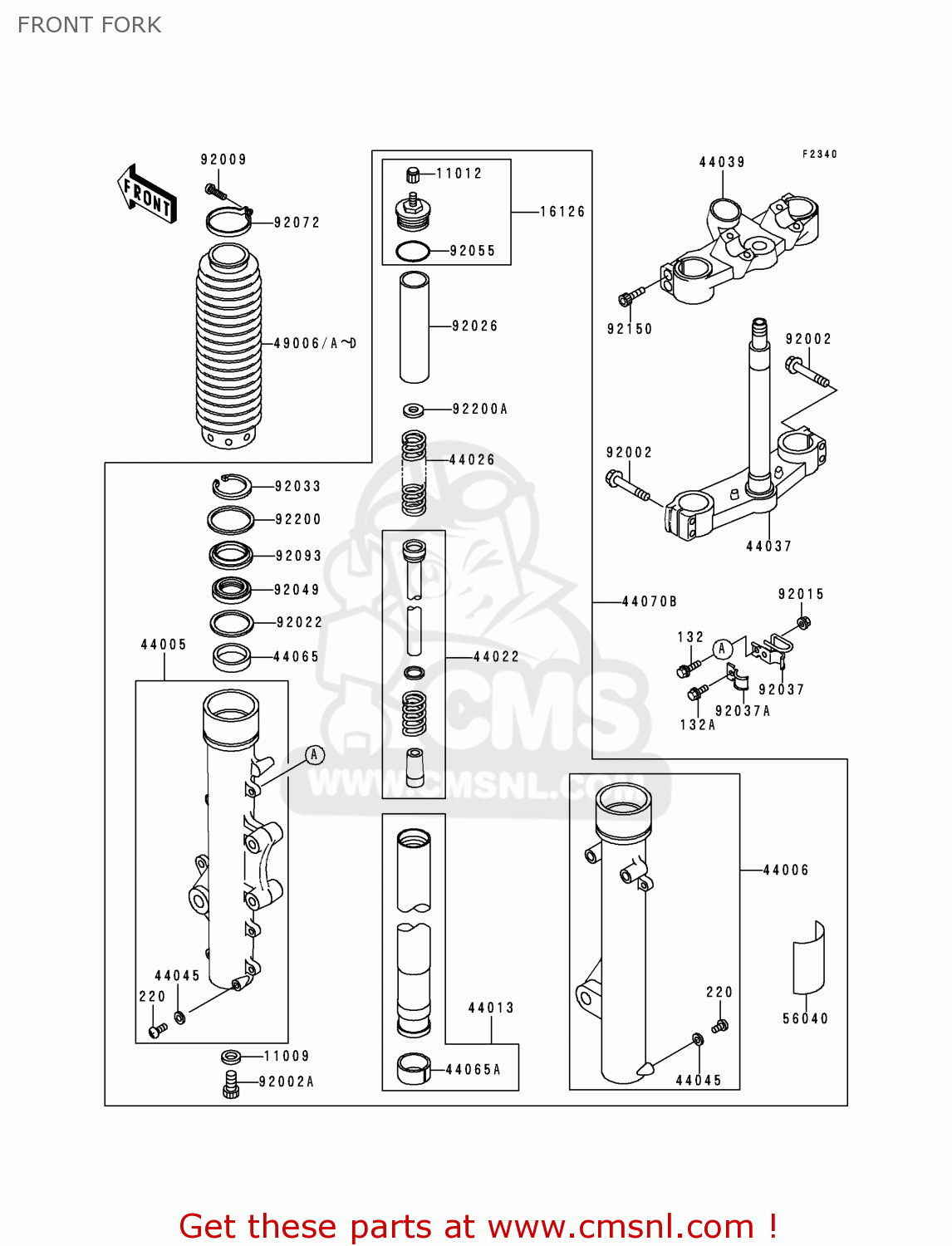

Front fork diagram KLE500A8 1998 SWEDEN
FRONT FORK KLE500A8 1998 SWEDEN
×
prices are in EUR
ref
part #
description
quantity
11009
110091553
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11012
110121391
ref: 11012
CAP,VALVE AIR
€ 3.50
16126
161261147
ref: 16126
VALVE
€ 51.00
44005
440051338
ref: 44005
PIPE-LEFT FORK OUTER
€ 385.50
44006
440061336
ref: 44006
PIPE-RIGHT FORK OUTER
€ 385.50
44013
440131398
ref: 44013
PIPE-FORK INNER
€ 229.50
44022
440221265
ref: 44022
CYLINDER-FORK
€ 157.00
44026
440261494
ref: 44026
SPRING-FRONT FORK
€ 57.50
44037
440371286
ref: 44037
HOLDER-FORK UNDER
€ 355.50
44039
440391215
ref: 44039
HOLDER-FORK UPPER
€ 219.50
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
44065
440651085
ref: 44065
BUSHING-FRONT FORK
€ 21.00
44065A
440651086
ref: 44065A
BUSHING-FRONT FORK,IN
€ 21.00
44070B
440705178
ref: 44070B
DAMPER-ASSY,FORK
€ 1,430.00
49006
490061266BD
ref: 49006
BOOT,FORK,BLACK
€ 49.50
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92002
920021476
ref: 92002
BOLT,FLANGED,8X40
€ 6.50
92002A
920021650
ref: 92002A
BOLT,FORK DRAIN
€ 10.00
92009
920091348
ref: 92009
SCREW
€ 3.50
92015
920151603
ref: 92015
NUT
€ 3.00
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
€ 5.50
92026
920261404
ref: 92026
SPACER
€ 5.50
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
92037
920371897
ref: 92037
CLAMP,HOSE
€ 8.50
92037A
920371898
ref: 92037A
CLAMP,HOSE
€ 5.50
92049
920491389
ref: 92049
SEAL-OIL,FORK OUTER T
€ 16.00
132
132E0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
€ 2.50
92055
920551321
ref: 92055
RING-O
€ 1.00
92072
920721077
ref: 92072
BAND,BOOT
€ 7.00
92093
920931206
ref: 92093
SEAL,FORK
€ 14.00
92150
921501307
ref: 92150
BOLT
€ 3.00
92200
922001091
ref: 92200
WASHER,FORK OUTER TUB
€ 5.50
92200A
922001191
ref: 92200A
WASHER
€ 6.50
