CARBURETOR(1/4)
KLE500A8 1998 SWEDEN

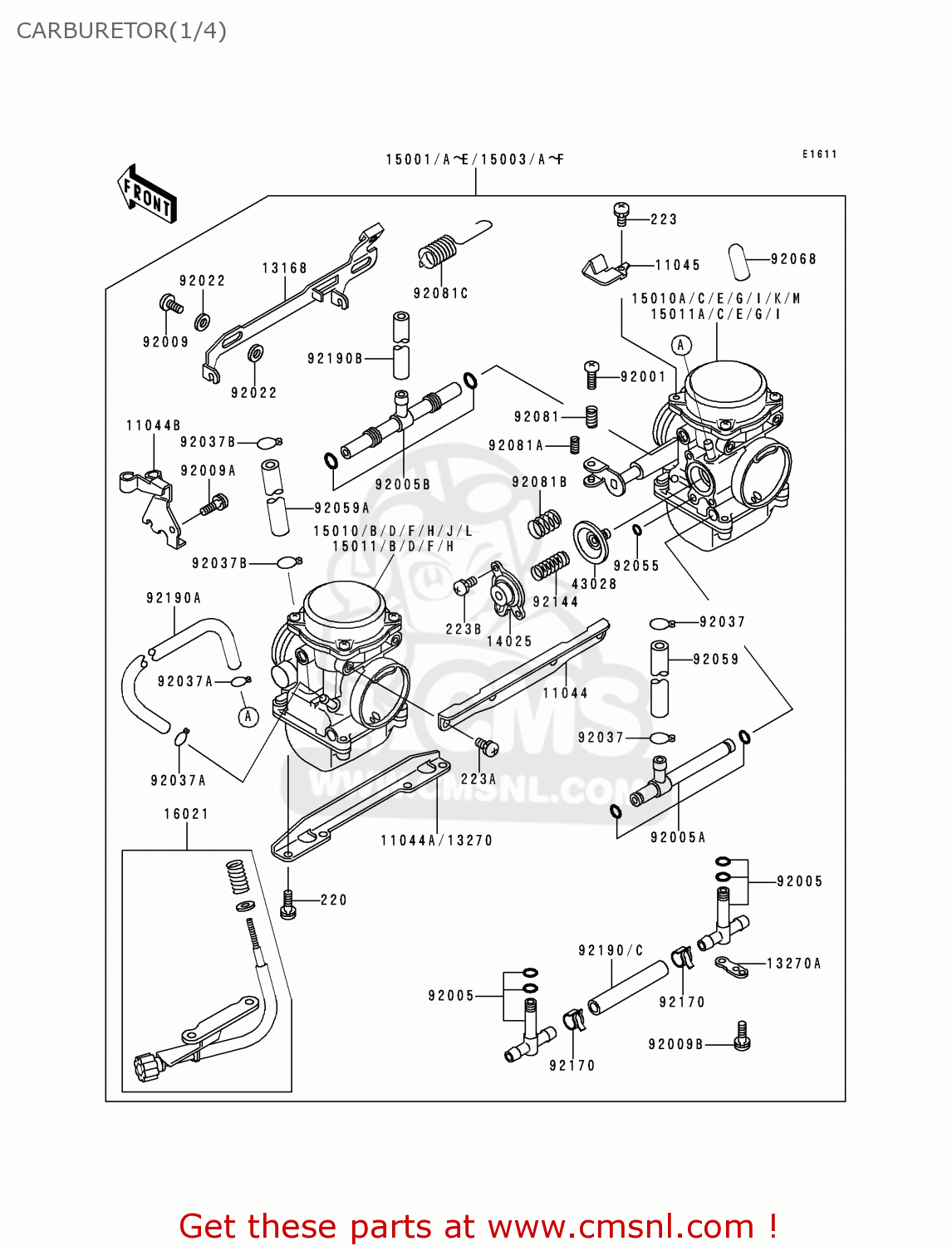

Carburetor(1/4) diagram KLE500A8 1998 SWEDEN
CARBURETOR(1/4) KLE500A8 1998 SWEDEN
×
prices are in EUR
ref
part #
description
quantity
11044
110441313
ref: 11044
BRACKET,CARBURETOR ST
€ 43.50
11044A
110441314
ref: 11044A
BRACKET,CARBURETOR ST
€ 45.50
11044B
110441546
ref: 11044B
BRACKET,THROTTLE CABL
€ 41.00
11045
110451824
ref: 11045
BRACKET,STARTER LEVER
€ 44.50
13168
131681360
ref: 13168
LEVER
€ 55.50
14025
140251903
ref: 14025
COVER,AIR CUT VALVE
€ 43.00
15003B
150031243
ref: 15003B
CARBURETOR-ASSY
€ 1,545.50
15011B
150111237
ref: 15011B
CARBURETOR,LH
€ 1,011.50
15011C
150111238
ref: 15011C
CARBURETOR,RH
€ 1,011.50
16021
160211182
ref: 16021
SCREW-THROTTLE STOP
€ 79.50
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
€ 62.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005A
920051325
ref: 92005A
FITTING
€ 37.00
92005B
920051326
ref: 92005B
FITTING
€ 37.00
92009
920091262
ref: 92009
SCREW
€ 4.00
92009A
920091365
ref: 92009A
SCREW
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371142
ref: 92037A
CLAMP,TUBE
€ 2.50
92037B
920371477
ref: 92037B
CLAMP,TUBE
€ 3.00
92055
920551245
ref: 92055
RING-O
€ 3.50
92059
920591236
ref: 92059
TUBE,FUEL
€ 25.00
92059A
920591713
ref: 92059A
TUBE,5X9X120
€ 16.50
92068
92068006
ref: 92068
RUBBER PLUG
€ 2.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811876
ref: 92081B
SPRING
€ 6.00
92081C
920811893
ref: 92081C
SPRING,STARTER LEVER
€ 12.50
92144
921441072
ref: 92144
SPRING,AIR CUT VALVE
€ 6.50
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
223B
223D0408
ref: 223B
SCREW-PAN-WS-CROS
€ 1.00
92190A
921901218
ref: 92190A
TUBE,3.5X6.5X240
€ 5.50
92190B
921901246
ref: 92190B
TUBE,6.5X9.5X450
€ 20.50
