SIDE COVERS/CHAIN COVER(KLE500-A2)

KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

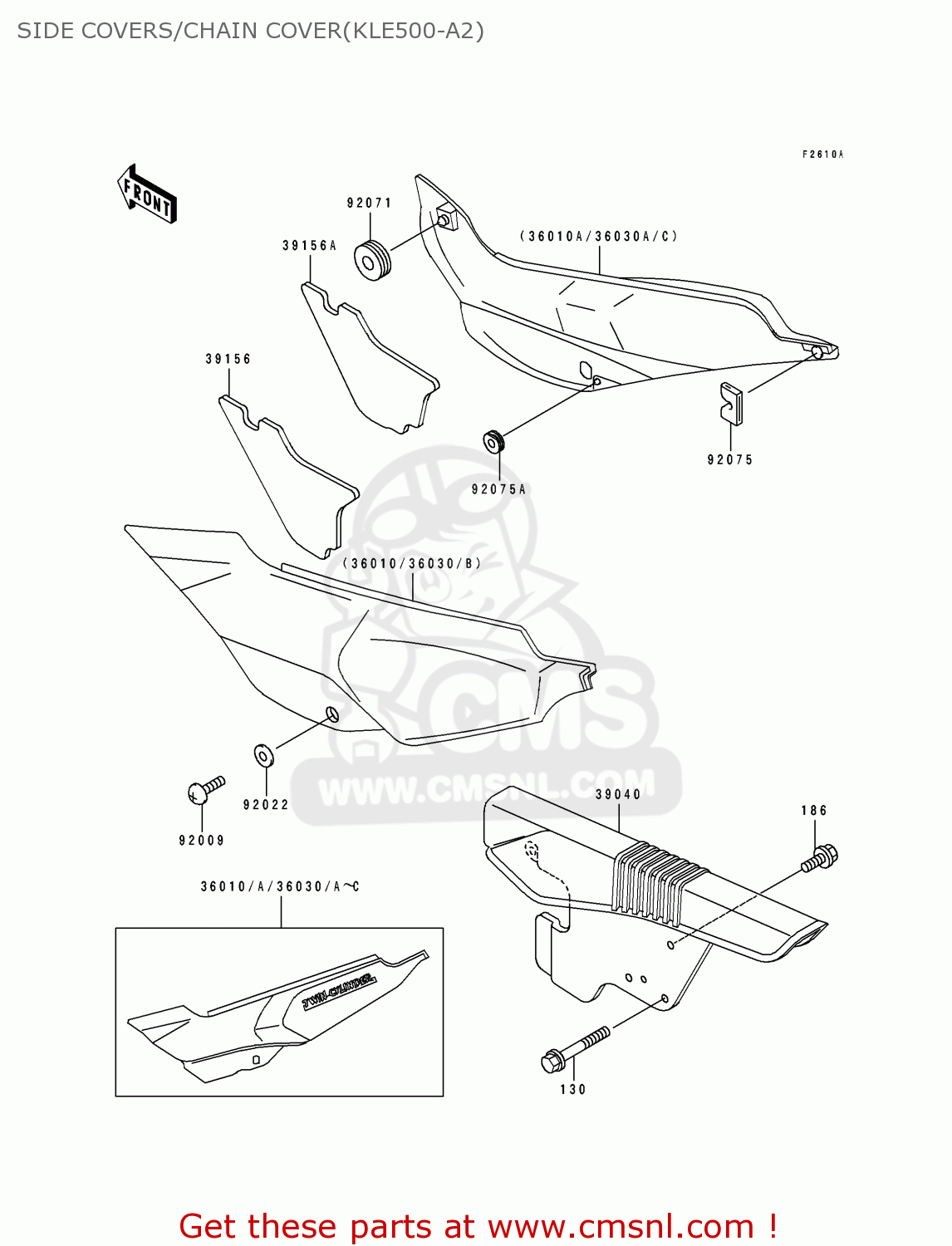

Side covers/chain cover(kle500-a2) diagram KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130H0640
ref: 130

BOLT-FLANGED

€ 0.50

186

186C0612
ref: 186

BOLT-UPSET-WP

€ 0.50

36010

360105478KJ
ref: 36010
AREUFGFRGRITNRSPST

COVER-SIDE,LH,VIOLET/

€ 267.50

36010A

360105479KJ
ref: 36010A
AREUFGFRGRITNRSPST

COVER-SIDE,RH,VIOLET/

€ 267.50

36030

360305093GR
ref: 36030
AREUFRGRITNRSDSPSTUK

COVER-SIDE,LH,RED/BLA

€ 239.00

36030A

360305094GR
ref: 36030A
AREUFRGRITNRSDSPSTUK

COVER-SIDE,RH,RED/BLA

€ 267.50

36030B

360305095RJ
ref: 36030B
AREUFGGRNRSDUK

COVER-SIDE,LH,BLUE/BL

€ 251.00

36030C

360305096RJ
ref: 36030C
AREUFGGRNRSDUK

COVER-SIDE,RH,BLUE/BL

€ 251.00

39040

390401056
ref: 39040

COVER-ASSY-CHAIN CASE

€ 70.00

39156

391561284
ref: 39156

PAD,SIDE COVER,LH

€ 15.00

39156A

391561285
ref: 39156A

PAD,SIDE COVER,RH

€ 13.00

92009

920091288
ref: 92009

SCREW,6X14

€ 2.00

92022

920221143
ref: 92022

WASHER,6.5X16X1

€ 2.50

92071

92071056
ref: 92071

GROMMET

€ 2.50

92075

920751967
ref: 92075

DAMPER

€ 3.50

92075A

920751986
ref: 92075A

DAMPER

€ 3.00
