COWLING(KLE500-A2)

KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

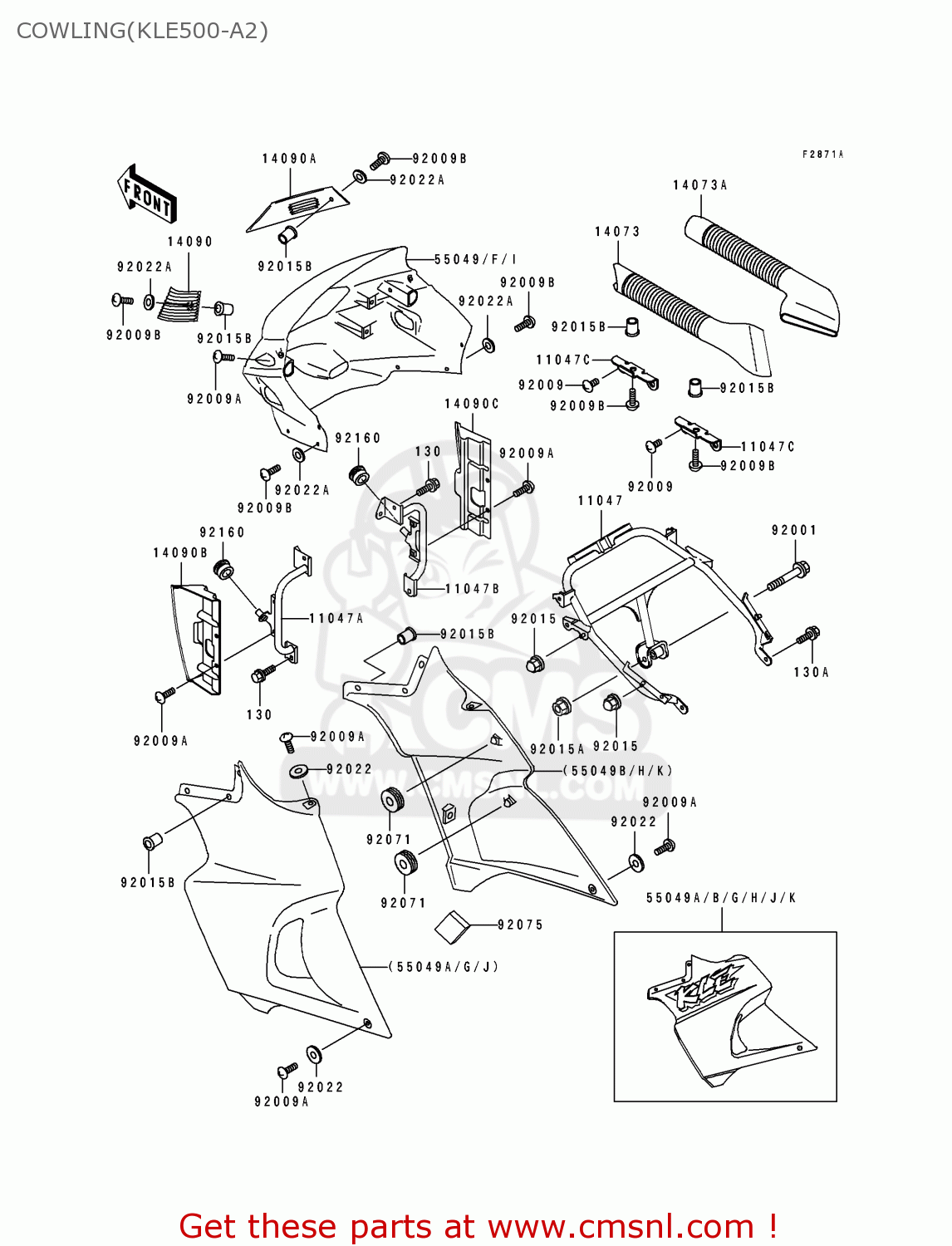

Cowling(kle500-a2) diagram KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

COWLING(KLE500-A2) KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
COWLING(KLE500-A2) KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
COWLING(KLE500-A2) KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11047
110471356
ref: 11047
BRACKET,UPP COWLING
110471356
€ 145.50
11047A
110471357
ref: 11047A
BRACKET,SIDE COWLING,
110471357
€ 47.00
11047B
110471358
ref: 11047B
BRACKET,SIDE COWLING,
110471358
€ 47.00
11047C
110471390
ref: 11047C
BRACKET,DUCT
110471390
€ 5.00
14073
140731486
ref: 14073
DUCT,LH
140731486
€ 30.00
14073A
140731487
ref: 14073A
DUCT,RH
140731487
€ 32.50
14090
140901092
ref: 14090
COVER,UPP COWLING,LH
140901092
€ 28.50
14090A
140901093
ref: 14090A
COVER,UPP COWLING,RH
140901093
€ 31.00
14090B
140901100
ref: 14090B
COVER,SIDE COWLING,LH
140901100
€ 35.00
14090C
140901101
ref: 14090C
COVER,SIDE COWLING,RH
140901101
€ 35.00
55049
550495043JW
ref: 55049
AREUFGFRGRITNRSPST
COWLING.,UPP,M.VIOLET
€ 160.00
55049A
550495044JW
ref: 55049A
AREUFGFRGRITNRSPST
COWLING.,SIDE,LH,M.VI
550495044JW
€ 350.00
55049B
550495045JW
ref: 55049B
AREUFGFRGRITNRSPST
COWLING.,SIDE,RH,M.VI
550495045JW
€ 350.00
55049F
550495076L1
ref: 55049F
AREUFRGRITNRSDSPSTUK
COWLING.,UPP,C.C.RED
€ 146.50
55049G
550495077L1
ref: 55049G
AREUFRGRITNRSDSPSTUK
COWLING.,SIDE,LH,C.C.
550495077L1
€ 338.00
55049H
550495078L1
ref: 55049H
AREUFRGRITNRSDSPSTUK
COWLING.,SIDE,RH,C.C.
€ 332.00
55049I
550495079GW
ref: 55049I
AREUFGGRNRSDUK
COWLING.,UPP,M.S.BLUE
€ 168.50
55049J
550495080GW
ref: 55049J
AREUFGGRNRSDUK
COWLING.,SIDE,LH,M.S.
€ 332.00
55049K
550495081GW
ref: 55049K
AREUFGGRNRSDUK
COWLING.,SIDE,RH,M.S.
550495081GW
€ 316.00
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130A
130J0614
ref: 130A
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
92001
920011614
ref: 92001
BOLT,FLANGED,8X50
920011614
€ 3.50
92009
920091530
ref: 92009
SCREW,6X10
920091530
€ 2.50
92009A
920091611
ref: 92009A
SCREW,6X14
920091611
€ 2.50
92009B
920091654
ref: 92009B
SCREW
920091654
€ 0.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92015A
920151183
ref: 92015A
NUT,FLANGED,8MM,BLACK
€ 1.00
92015B
920151757A
ref: 92015B
NUT,5MM
920151757A
€ 5.00
92022
920221143
ref: 92022
WASHER,6.5X16X1
920221143
€ 2.50
92022A
920221521
ref: 92022A
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92071
92071056
ref: 92071
GROMMET
92071056
€ 2.50
92075
920751925
ref: 92075
DAMPER
920751925
€ 5.50
92160
921601141
ref: 92160
DAMPER
921601141
€ 3.00
