CARBURETOR(1/4)

KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

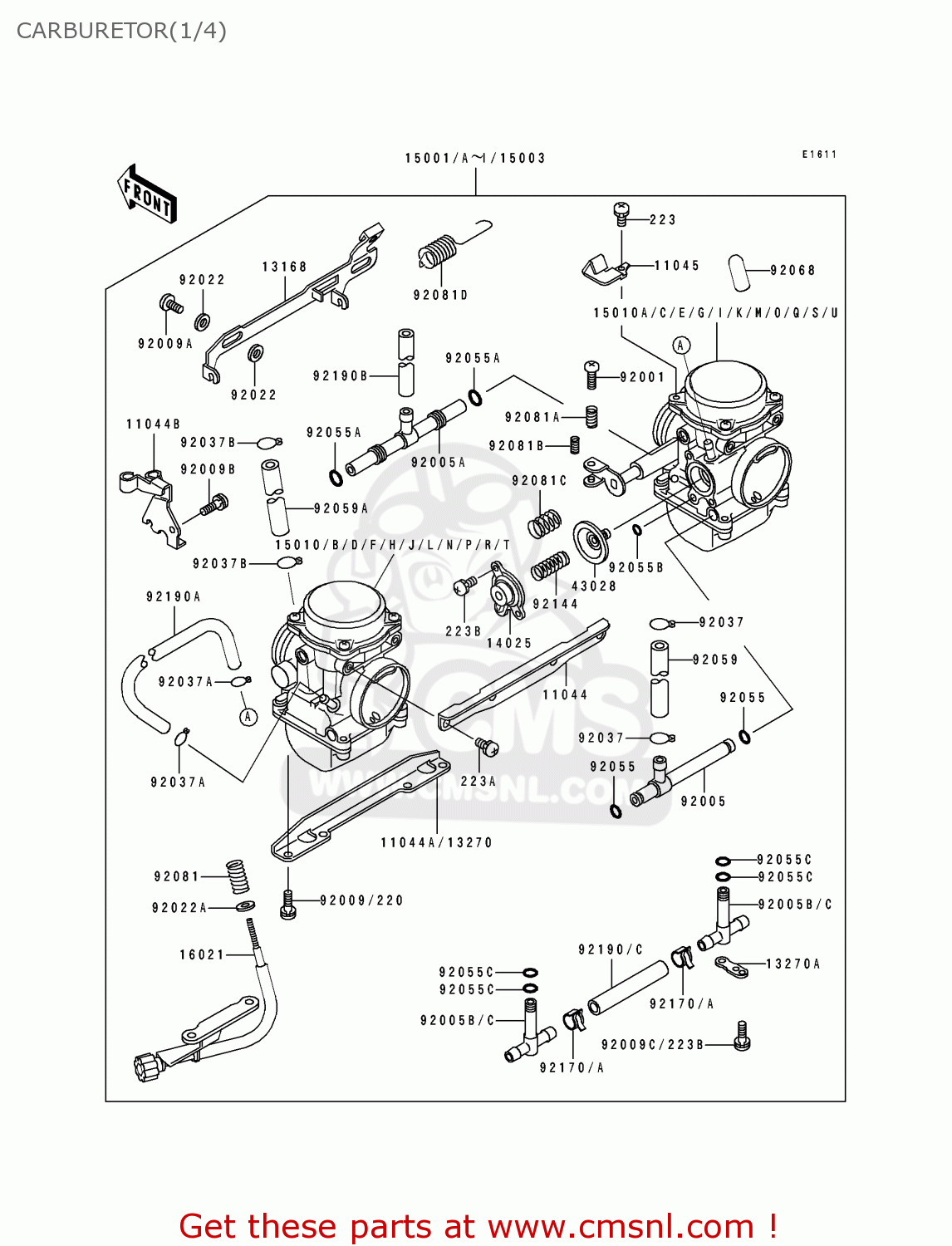

Carburetor(1/4) diagram KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

CARBURETOR(1/4) KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
CARBURETOR(1/4) KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
CARBURETOR(1/4) KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11044
110441313
ref: 11044
BRACKET,CARBURETOR ST
€ 43.50
11044A
110441314
ref: 11044A
AREUFGFRGRITNRSDSPST
BRACKET,CARBURETOR ST
110441314
€ 45.50
11044B
110441546
ref: 11044B
BRACKET,THROTTLE CABL
110441546
€ 41.00
11045
110451824
ref: 11045
BRACKET,STARTER LEVER
€ 44.50
13168
131681360
ref: 13168
LEVER
€ 55.50
13270
132701062
ref: 13270
UK
PLATE,LWR,STAY
€ 47.00
13270A
132701063
ref: 13270A
UK
PLATE,JOINT STAY
132701063
€ 21.00
14025
140251903
ref: 14025
COVER,AIR CUT VALVE
140251903
€ 43.00
15001
150011709
ref: 15001
EUFRGRITNRSP
CARBURETOR-ASSY
€ 1,181.50
15001A
150011710
ref: 15001A
FG
CARBURETOR-ASSY
€ 1,125.50
15001B
150011711
ref: 15001B
UK
CARBURETOR-ASSY
€ 1,104.50
15001C
150011712
ref: 15001C
SD
CARBURETOR-ASSY
€ 1,181.50
15001D
150011713
ref: 15001D
ST
CARBURETOR-ASSY
€ 1,120.00
15001E
150011714
ref: 15001E
AR
CARBURETOR-ASSY
€ 1,104.50
15010
150101214
ref: 15010
EUFRGRITNRSP
CARBURETOR,LH
€ 727.00
15010A
150101215
ref: 15010A
EUFRGRITNRSP
CARBURETOR,RH
€ 727.00
15010B
150101216
ref: 15010B
FG
CARBURETOR,LH
€ 692.00
15010C
150101217
ref: 15010C
FG
CARBURETOR,RH
€ 692.00
15010D
150101218
ref: 15010D
ST
CARBURETOR,LH
€ 689.00
15010E
150101219
ref: 15010E
ST
CARBURETOR,RH
€ 689.00
15010F
150101273
ref: 15010F
UK
CARBURETOR,LH
€ 679.00
15010G
150101274
ref: 15010G
UK
CARBURETOR,RH
€ 679.00
15010H
150101275
ref: 15010H
SD
CARBURETOR,LH
€ 727.00
15010I
150101276
ref: 15010I
SD
CARBURETOR,RH
€ 727.00
15010J
150101279
ref: 15010J
AR
CARBURETOR,LH
€ 679.00
15010K
150101280
ref: 15010K
AR
CARBURETOR,RH
€ 679.00
16021
160211144
ref: 16021
SCREW-THROTTLE STOP
€ 89.00
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
430281053
€ 62.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051133
ref: 92005
FITTING
920051133
€ 37.50
92005A
920051134
ref: 92005A
FITTING
920051134
€ 43.00
92005B
920051235
ref: 92005B
UK
FITTING
920051235
€ 8.50
92009
920091129
ref: 92009
AREUFGFRGRITNRSDSPST
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
920091262
€ 4.00
92009B
920091365
ref: 92009B
SCREW
920091365
€ 4.50
92009C
920091705
ref: 92009C
UK
SCREW 4X8
920091705
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
920371075
€ 2.50
92037A
920371142
ref: 92037A
CLAMP,TUBE
920371142
€ 2.50
92037B
920371477
ref: 92037B
CLAMP,TUBE
920371477
€ 3.00
92055
920551004
ref: 92055
O RING
920551004
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
920551223
€ 3.50
92055B
920551245
ref: 92055B
RING-O
920551245
€ 3.50
92055C
920551427
ref: 92055C
UK
RING-O,4.5X1.5
920551427
€ 3.00
92059
920591236
ref: 92059
TUBE,FUEL
€ 25.00
92059A
920591713
ref: 92059A
TUBE,5X9X120
920591713
€ 16.50
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
223C0420
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
223B
223D0408
ref: 223B
SCREW-PAN-WS-CROS
€ 1.00
92068
92068006
ref: 92068
EUFGFRGRITNRSDSPUK
RUBBER PLUG
92068006
€ 2.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
920811617
€ 3.50
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081B
920811621
ref: 92081B
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081C
920811876
ref: 92081C
SPRING
€ 6.00
92081D
920811893
ref: 92081D
SPRING,STARTER LEVER
€ 12.50
92144
921441072
ref: 92144
SPRING,AIR CUT VALVE
921441072
€ 6.50
92170
921701054
ref: 92170
UK
CLAMP,TUBE
921701054
€ 5.00
92190
921901039
ref: 92190
UK
TUBE,L=105
€ 8.00
92190A
921901218
ref: 92190A
TUBE,3.5X6.5X240
921901218
€ 5.50
92190B
921901246
ref: 92190B
TUBE,6.5X9.5X450
€ 20.50
