CAMSHAFT(S)/TENSIONER

KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

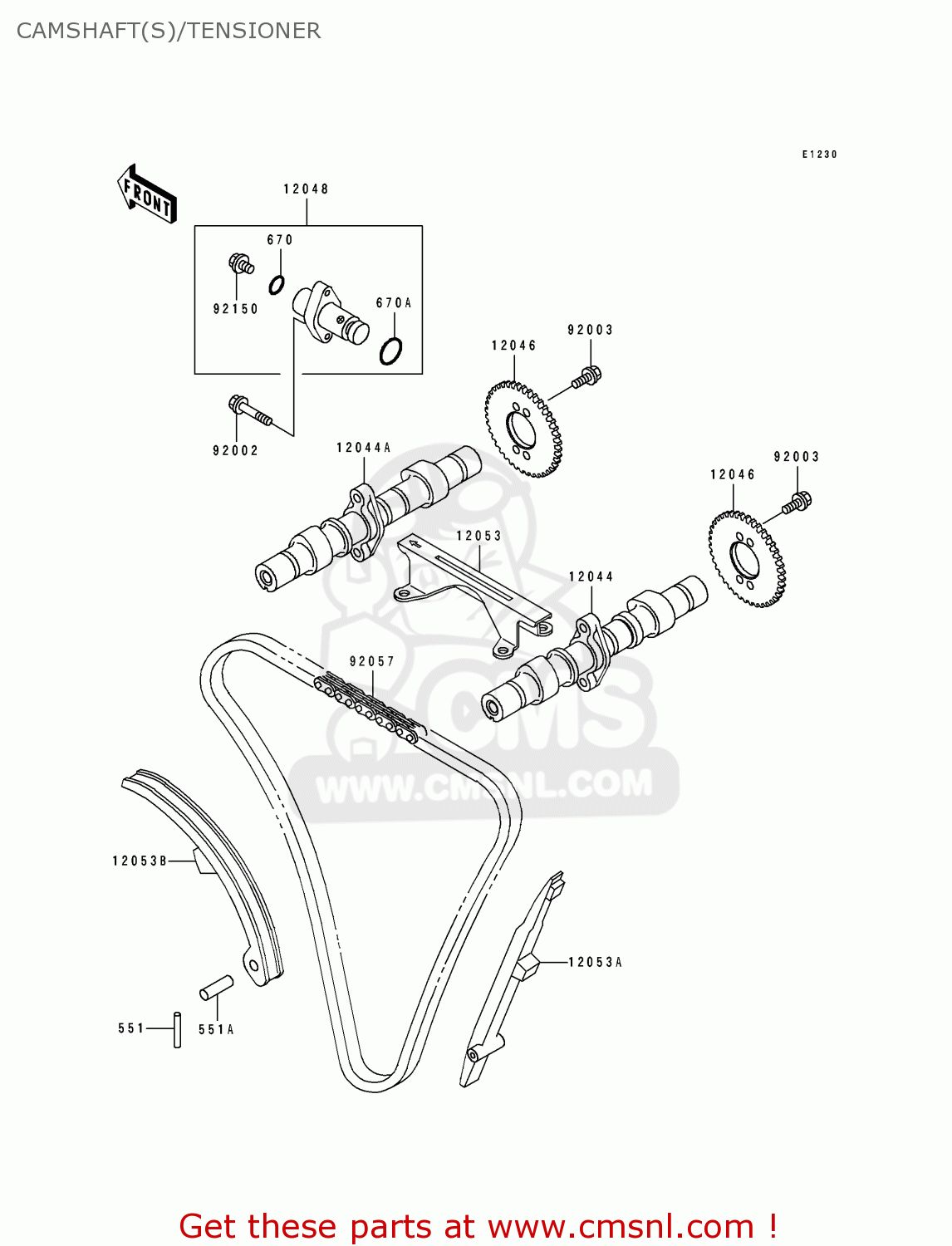

Camshaft(s)/tensioner diagram KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

551

551A0432
ref: 551

PIN-DOWEL

€ 2.50

551A

551A0840
ref: 551A

PIN-DOWEL,8X40

€ 3.00

670

670D2010
ref: 670

O RING,10MM

€ 1.00

670A

670D2021
ref: 670A

O RING,21MM

€ 5.00

12044

120441285
ref: 12044

CAMSHAFT-VALVE,INTAKE

€ 163.00

12044A

120441286
ref: 12044A

CAMSHAFT-VALVE,EXHAUS

€ 342.00

12046

120461075
ref: 12046

SPROCKET,CAMSHAFT,46T

€ 69.00

12048

120481134
ref: 12048

TENSIONER-ASSY,CAM CH

€ 117.50

12053

120531145
ref: 12053

GUIDE-CHAIN,UPP

€ 32.00

12053A

120531150
ref: 12053A

GUIDE-CHAIN,RR

€ 58.50

12053B

120531151
ref: 12053B

GUIDE-CHAIN,FR

€ 43.50

92002

920021086
ref: 92002

BOLT,6X25

€ 3.50

92003

92003208
ref: 92003

BOLT,SPROCKET FITTING

€ 2.50

92057

920571188
ref: 92057

CHAIN,CAMSHAFT,79RH20

€ 34.50

92150

921501380
ref: 92150

BOLT TENSIONER

€ 4.50

CAMSHAFT(S)/TENSIONER

all assemblies
