REAR BRAKE

KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

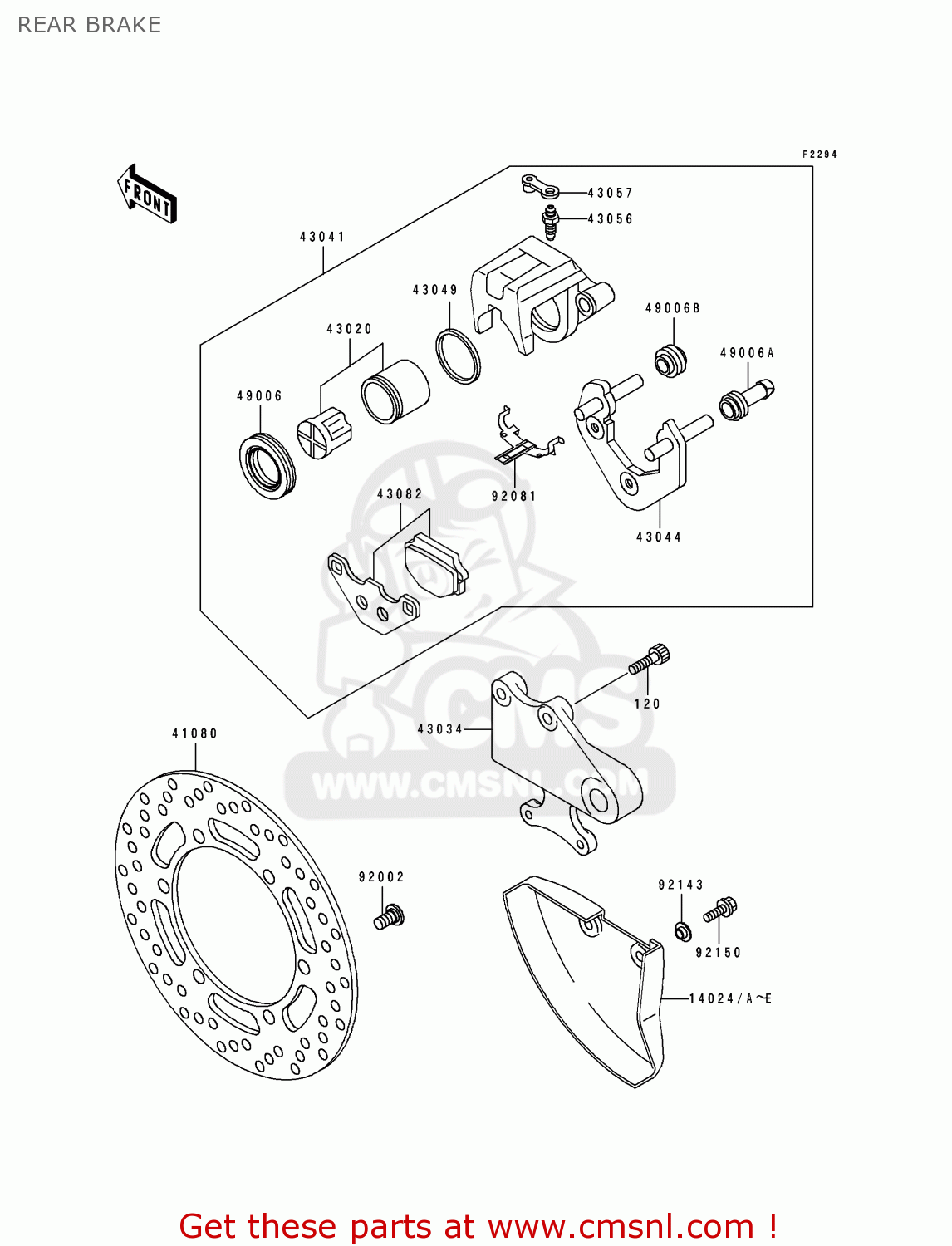

Rear brake diagram KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

REAR BRAKE KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
REAR BRAKE KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
REAR BRAKE KLE500A2 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
120
120P0816
ref: 120
BOLT-SOCKET
120P0816
€ 2.50
14024
140241759PG
ref: 14024
AREUFGFRGRITNRSPST
COVER,REAR DISC,LWR,R
140241759PG
€ 17.00
14024A
140241759PH
ref: 14024A
AREUFGGRNRSDUK
COVER,REAR DISC,LWR,D
€ 19.00
14024E
1402417596F
ref: 14024E
AREUFRGRITNRSDSPSTUK
COVER,REAR DISC,LWR,P
1402417596F
€ 19.50
41080
410801238
ref: 41080
DISC,RR
410801238
€ 157.50
43020
430201084
ref: 43020
PISTON-COMP-BRAKE
430201084
€ 44.50
43034
430341117
ref: 43034
HOLDER-BRAKE,REAR CAL
430341117
€ 95.50
43041
430411384FE
ref: 43041
CALIPER-ASSY,RR,M.F.G
€ 380.00
43044
430441028
ref: 43044
HOLDER-COMP-CALIPER
430441028
€ 121.50
43049
430491016
ref: 43049
PACKING,CALIPER (NAS)
430491016
€ 7.50
43056
430561054
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
43057003
€ 3.00
43082
430821116
ref: 43082
PAD-ASSY-BRAKE (NAS)
430821116
€ 42.50
49006
490061053
ref: 49006
BOOT,PISTON SEAL
490061053
€ 14.00
49006A
490061054
ref: 49006A
BOOT,CALIPER
490061054
€ 8.00
49006B
490061055
ref: 49006B
BOOT,CALIPER
490061055
€ 4.50
92002
920021878
ref: 92002
BOLT
920021878
€ 3.00
92081
920811341
ref: 92081
SPRING
920811341
€ 10.00
92143
921431331
ref: 92143
COLLAR
921431331
€ 2.00
92150
921501235
ref: 92150
BOLT,FLANGED,6X12
921501235
€ 3.50
