SWINGARM

KL650C5 KLR650 1999 UNITED KINGDOM FR NL FG IT SP ST

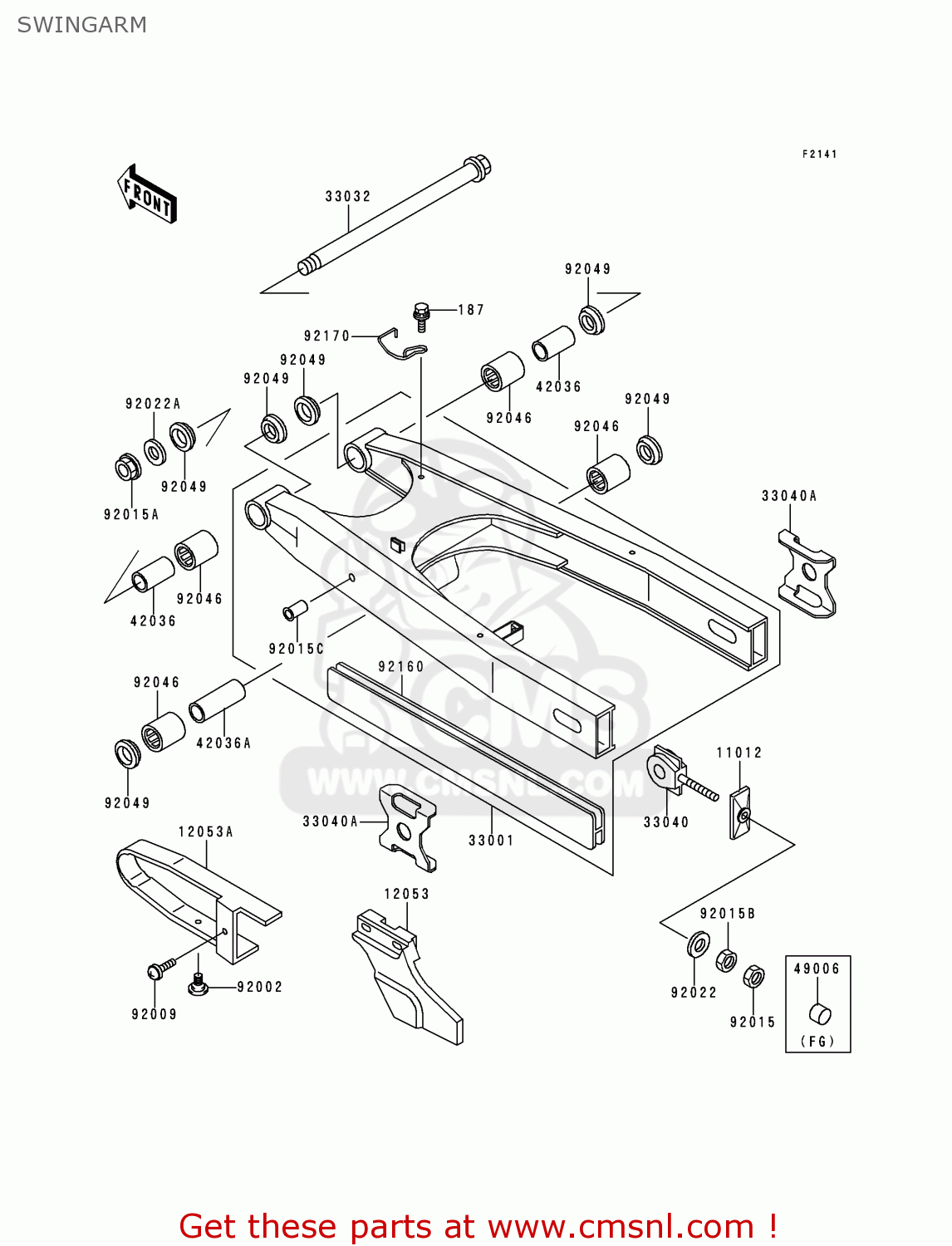

Swingarm diagram KL650C5 KLR650 1999 UNITED KINGDOM FR NL FG IT SP ST

SWINGARM KL650C5 KLR650 1999 UNITED KINGDOM FR NL FG IT SP ST
SWINGARM KL650C5 KLR650 1999 UNITED KINGDOM FR NL FG IT SP ST
SWINGARM KL650C5 KLR650 1999 UNITED KINGDOM FR NL FG IT SP ST
prices are in EUR
ref
part #
description
quantity
187
187D0616
ref: 187
BOLT-UPSET-WSP
€ 0.50
11012
110121780
ref: 11012
CAP,CHAIN ADJUSTER
110121780
€ 17.50
12053
120531104
ref: 12053
GUIDE-CHAIN,RR
120531104
€ 46.00
12053A
120531360
ref: 12053A
GUIDE-CHAIN,DRIVE,FR
120531360
€ 37.50
33001
330011478TX
ref: 33001
ARM-COMP-SWING,SILVER
€ 807.50
33032
330321128
ref: 33032
SHAFT-SWING ARM
330321128
€ 56.00
33040
330401116
ref: 33040
ADJUSTER-CHAIN,INNER
330401116
€ 20.50
33040A
330401122
ref: 33040A
ADJUSTER-CHAIN,OUTER
330401122
€ 12.00
42036
420361204
ref: 42036
SLEEVE,15X20X47.5
420361204
€ 12.50
42036A
420361205
ref: 42036A
SLEEVE,15X20X82
420361205
€ 18.50
49006
490061218
ref: 49006
FG
BOOT
490061218
€ 3.50
92002
920021775
ref: 92002
BOLT,DISC PLATE,6MM
920021775
€ 2.50
92009
920091181
ref: 92009
SCREW,6X18
920091181
€ 2.00
92015
920151364
ref: 92015
NUT,8MM
920151364
€ 2.50
92015A
920151459
ref: 92015A
NUT,14MM
920151459
€ 6.50
92015B
920151658
ref: 92015B
NUT,FLANGED,8MM
920151658
€ 3.00
92015C
920151791
ref: 92015C
NUT,POP,6MM
920151791
€ 3.00
92022
920221582
ref: 92022
WASHER,8.5X16X1.2
€ 0.50
92022A
920221701
ref: 92022A
WASHER
920221701
€ 3.00
92046
920461110
ref: 92046
BEARING-NEEDLE,BM2027
920461110
€ 22.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
920491109
€ 6.50
92160
921601614
ref: 92160
DAMPER,SWING ARM
€ 21.00
92170
921701566
ref: 92170
CLAMP,HOSE
€ 4.00
