GEAR CHANGE DRUM/SHIFT FORK(S)

KL650C5 KLR650 1999 UNITED KINGDOM FR NL FG IT SP ST

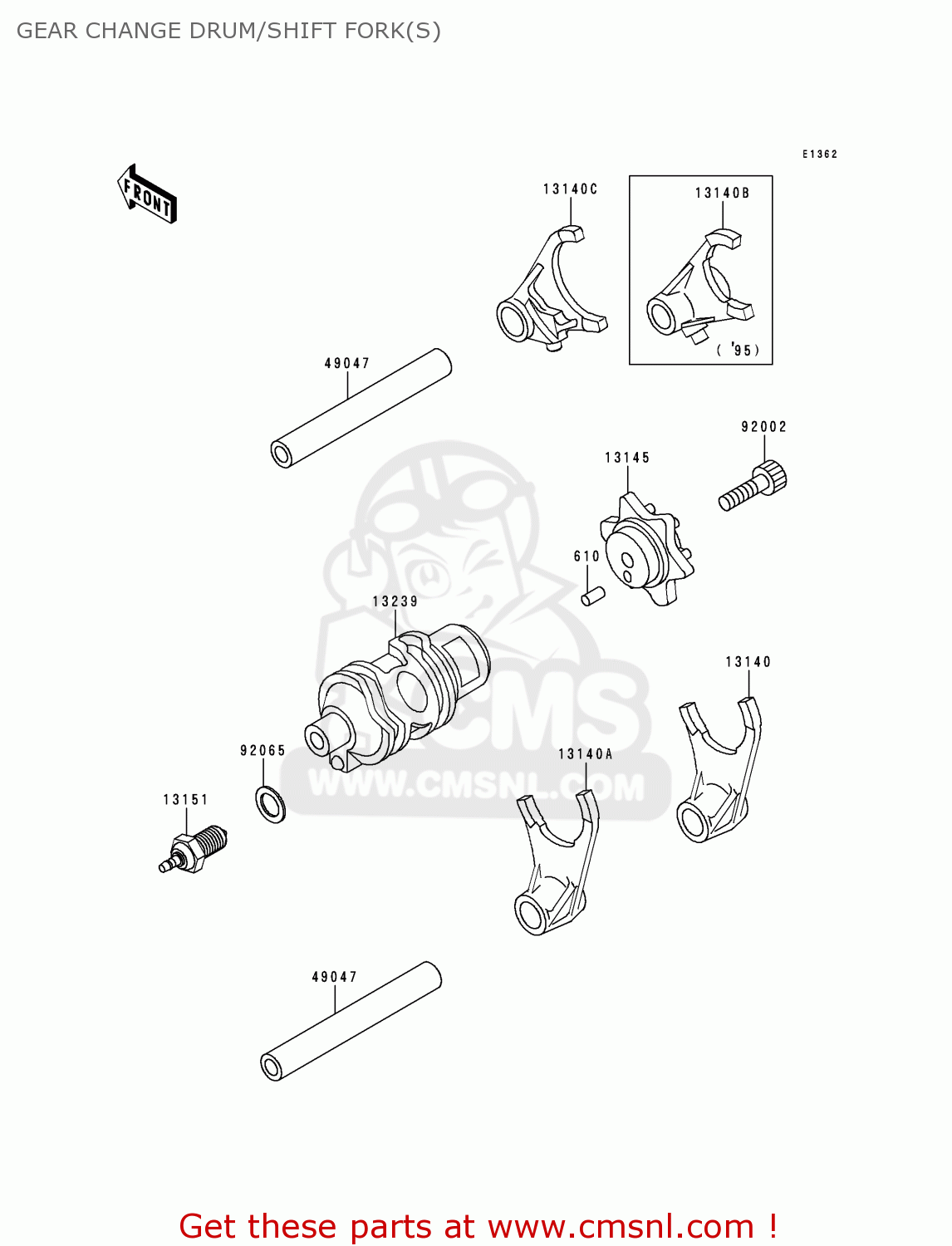

Gear change drum/shift fork(s) diagram KL650C5 KLR650 1999 UNITED KINGDOM FR NL FG IT SP ST

prices are in EUR

ref

part #

description

quantity

610

610A0410
ref: 610

ROLLER,4X10

€ 2.50

13140

131401023
ref: 13140

FORK,SHIFT,LOW

€ 76.00

13140A

131401024
ref: 13140A

FORK,SHIFT,2ND&3RD

€ 76.00

13140C

131401257
ref: 13140C

FORK-SHIFT

€ 80.50

13145

131451051
ref: 13145

CAM-CHANGE DRUM

€ 36.00

13151

131511080
ref: 13151

SWITCH-COMP,NEUTRAL

€ 9.00

13239

132391103
ref: 13239

DRUM-ASSY-CHANGE

€ 179.50

49047

490471003
ref: 49047

ROD,SHIFT 93.7MM

€ 18.00

92002

920021696
ref: 92002

BOLT,SOCKET,6X25

€ 1.50

92065

92065058
ref: 92065

GASKET, 10,5X16X1 (NAS)

€ 2.50
