STARTER MOTOR

KL650C5 KLR650 1999 UNITED KINGDOM FR NL FG IT SP ST

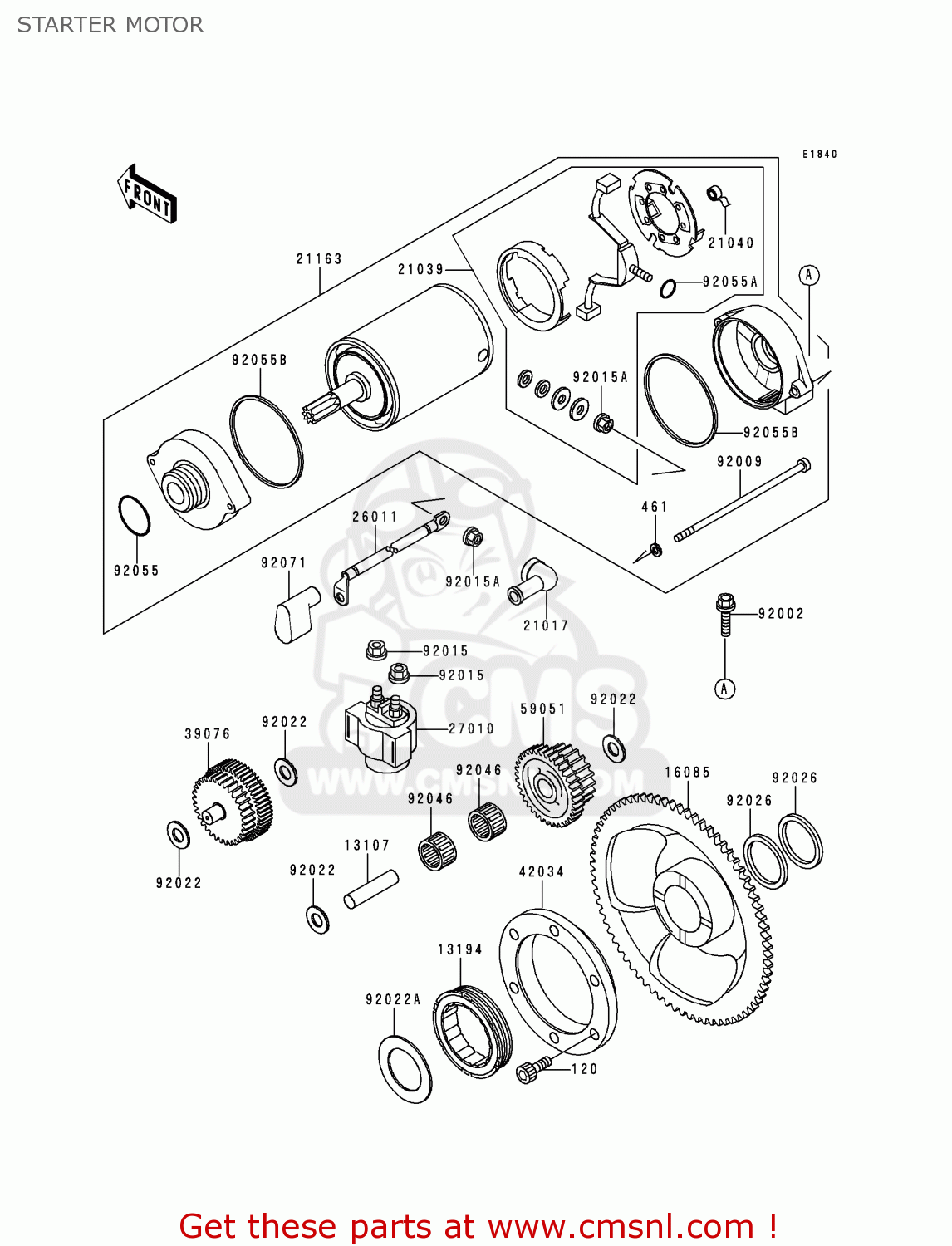

Starter motor diagram KL650C5 KLR650 1999 UNITED KINGDOM FR NL FG IT SP ST

STARTER MOTOR KL650C5 KLR650 1999 UNITED KINGDOM FR NL FG IT SP ST
STARTER MOTOR KL650C5 KLR650 1999 UNITED KINGDOM FR NL FG IT SP ST
STARTER MOTOR KL650C5 KLR650 1999 UNITED KINGDOM FR NL FG IT SP ST
prices are in EUR
ref
part #
description
quantity
120
120P0818
ref: 120
BOLT-SOCKET
120P0818
€ 2.00
461
461F0500
ref: 461
WASHER-SPRING,5MM
461F0500
€ 0.50
13107
131071135
ref: 13107
SHAFT,IDLER
131071135
€ 13.00
13194
131941089
ref: 13194
CLUTCH-ONEWAY
131941089
€ 90.50
16085
160851205
ref: 16085
GEAR,ONEWAY CLUTCH
160851205
€ 367.50
21017
21017017
ref: 21017
GROMMET-CORD
21017017
€ 6.50
21039
210391060
ref: 21039
BRUSH,CARBON
210391060
€ 74.00
21040
210401055
ref: 21040
SPRING-BRUSH
210401055
€ 5.50
21163
211631108
ref: 21163
STARTER-ELECTRIC
211631108
€ 574.00
26011
260111397
ref: 26011
WIRE-LEAD,STARTER MOT
€ 45.50
27010
270101314
ref: 27010
SWITCH,STARTER
270101314
€ 51.50
39076
390761056
ref: 39076
LIMITER
390761056
€ 189.50
42034
420341094
ref: 42034
COUPLING
420341094
€ 116.00
59051
590511133
ref: 59051
GEAR-SPUR,20T & 37T
590511133
€ 94.50
92002
920021086
ref: 92002
BOLT,6X25
920021086
€ 3.50
92009
920091369
ref: 92009
SCREW
€ 6.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92015A
920151476
ref: 92015A
NUT,6MM
920151476
€ 2.50
92022
920221649
ref: 92022
WASHER,10.2X20X0.5
920221649
€ 2.50
92022A
920221650
ref: 92022A
WASHER,32.2X50X1.0
920221650
€ 4.50
92026
920261474
ref: 92026
SPACER
920261474
€ 14.50
92046
920461134
ref: 92046
BEARING-NEEDLE,K10X14
920461134
€ 17.00
92055
920551276
ref: 92055
RING-O
920551276
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
920551370
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
920551381
€ 6.50
92071
920711130
ref: 92071
GROMMET,TERMINAL
920711130
€ 7.00
