FOOTRESTS

KL650C5 KLR650 1999 UNITED KINGDOM FR NL FG IT SP ST

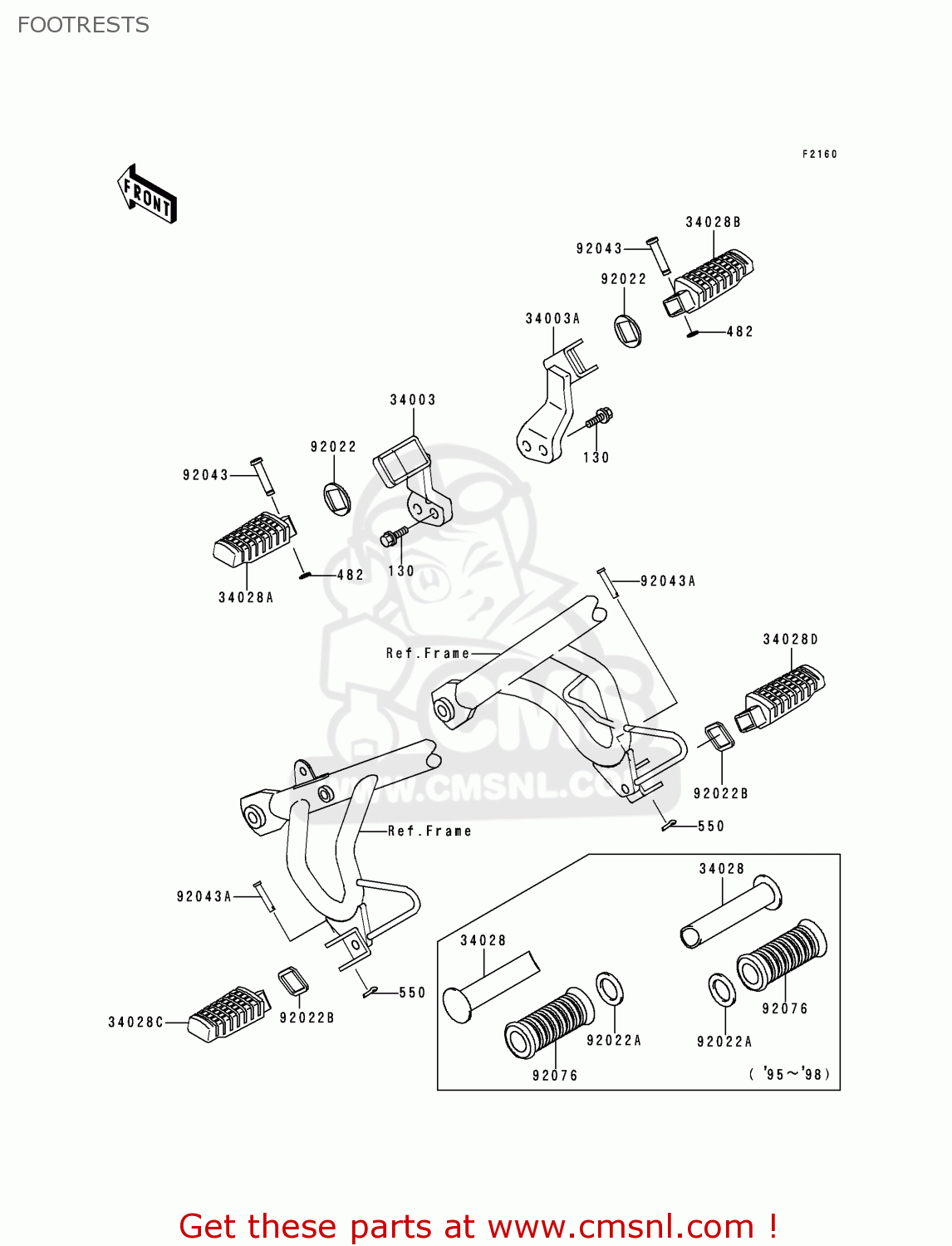

Footrests diagram KL650C5 KLR650 1999 UNITED KINGDOM FR NL FG IT SP ST

prices are in EUR

ref

part #

description

quantity

130

130T0820
ref: 130

BOLT-FLANGED,8X20

€ 1.00

482

482L7000
ref: 482

CIRCLIP-TYPE-E

€ 2.50

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

34003

340031429TX
ref: 34003

HOLDER-STEP,FR,LH,SIL

€ 76.50

34003A

340031430TX
ref: 34003A

HOLDER-STEP,FR,RH,SIL

€ 67.00

34028A

340281193
ref: 34028A

STEP,FR,LH

€ 35.50

34028B

340281194
ref: 34028B

STEP,FR,RH

€ 31.50

34028C

340281195
ref: 34028C

STEP,RR,LH

€ 36.50

34028D

340281196
ref: 34028D

STEP,RR,RH

€ 36.50

92022

920221314
ref: 92022

WASHER,STEP FITTING

€ 3.00

92022B

920221797
ref: 92022B

WASHER,STEP FITTING

€ 3.50

92043

920431339
ref: 92043

PIN

€ 5.00

92043A

920431464
ref: 92043A

PIN

€ 5.50
