FRONT FORK

KL650C2 KLR650 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

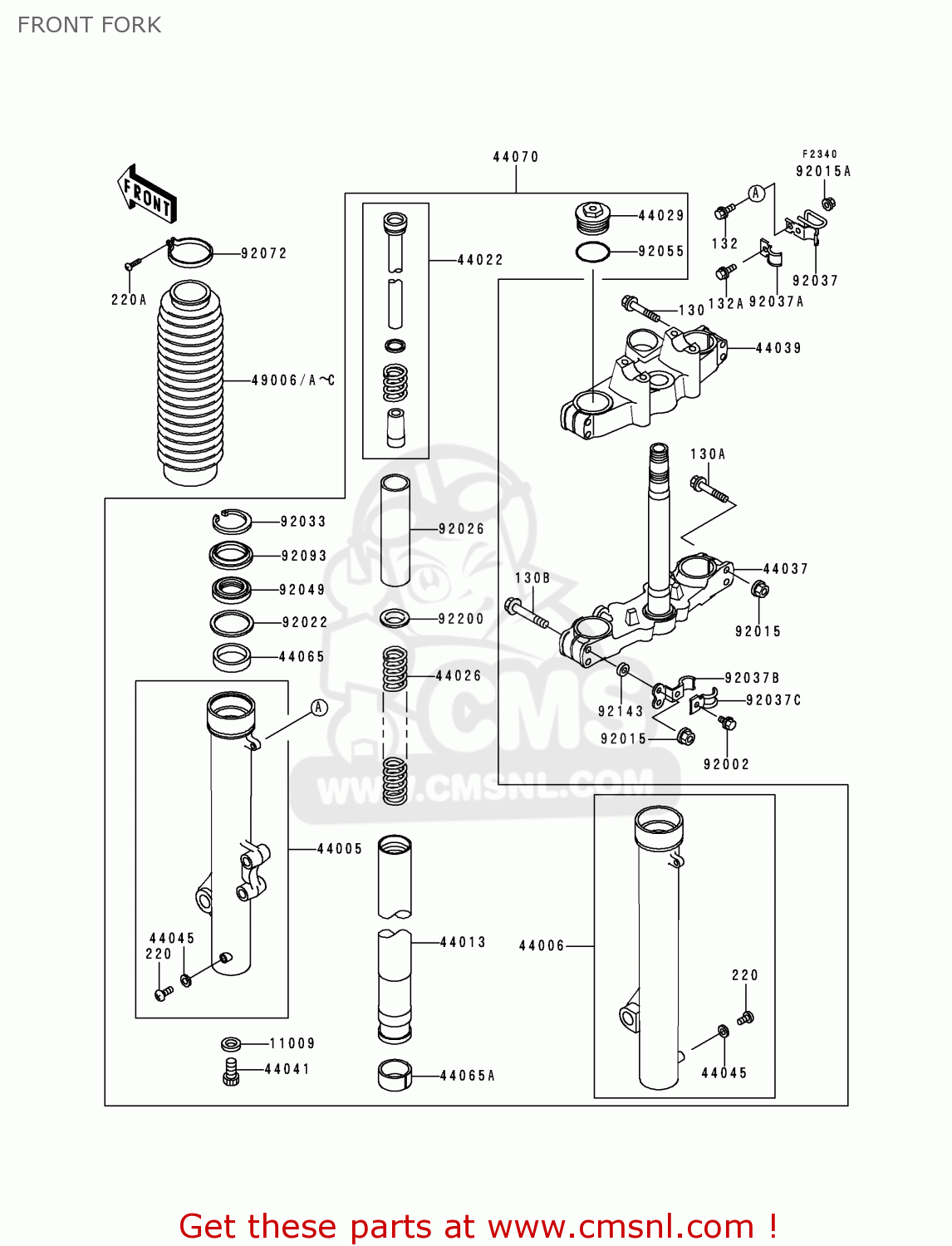

Front fork diagram KL650C2 KLR650 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

FRONT FORK KL650C2 KLR650 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
FRONT FORK KL650C2 KLR650 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
FRONT FORK KL650C2 KLR650 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130V0840
ref: 130
BOLT-FLANGED
€ 1.00
130A
130V0850
ref: 130A
BOLT-FLANGED
€ 1.00
11009
110091325
ref: 11009
GASKET,FORK, CYL BOLT (NAS)
€ 3.00
44005
440051349
ref: 44005
PIPE-LEFT FORK OUTER
€ 439.00
44006
440061347
ref: 44006
PIPE-RIGHT FORK OUTER
440061347
€ 461.00
44013
440131407
ref: 44013
PIPE-FORK INNER
€ 190.50
44022
440221303
ref: 44022
CYLINDER-FORK
€ 165.00
44026
440261577
ref: 44026
SPRING-FRONT FORK
440261577
€ 48.00
44029
440291147
ref: 44029
SEAT-FORK SPRING
440291147
€ 31.50
44037
440371333
ref: 44037
HOLDER-FORK UNDER
440371333
€ 298.00
44039
440391259
ref: 44039
HOLDER-FORK UPPER
440391259
€ 263.00
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
44041040
€ 4.50
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
44065
440651085
ref: 44065
BUSHING-FRONT FORK
440651085
€ 21.00
44065A
440651086
ref: 44065A
BUSHING-FRONT FORK,IN
440651086
€ 21.00
44070
440701382
ref: 44070
DAMPER-ASSY,FORK
€ 1,639.50
49006
490061266BC
ref: 49006
AREUFGFRGRNLNRSPSTUK
BOOT,FORK,BLUE
490061266BC
€ 46.00
49006C
490061266VW
ref: 49006C
BOOT,J.S.VIOLET
490061266VW
€ 53.50
92002
920021982
ref: 92002
BOLT
€ 3.00
92015
920151406
ref: 92015
NUT,8MM
920151406
€ 3.00
92015A
920151603
ref: 92015A
EUFGFRGRITNLNRSDSPST
NUT
920151603
€ 3.00
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
920221298
€ 5.50
92026
920261455
ref: 92026
SPACER,FORK,L=200
€ 5.50
92033
920331036
ref: 92033
CIRCLIP
920331036
€ 4.00
92037
920371897
ref: 92037
CLAMP,HOSE
920371897
€ 8.50
92037A
920371898
ref: 92037A
CLAMP,HOSE
920371898
€ 5.50
92037B
920371913
ref: 92037B
CLAMP
920371913
€ 14.00
92037C
920371931
ref: 92037C
CLAMP
€ 7.00
92049
920491389
ref: 92049
SEAL-OIL,FORK OUTER T
920491389
€ 16.00
92055
920551321
ref: 92055
RING-O
€ 1.00
92072
920721077
ref: 92072
BAND,BOOT
920721077
€ 7.00
92093
920931206
ref: 92093
SEAL,FORK
920931206
€ 14.00
92143
921431770
ref: 92143
COLLAR
€ 8.00
92200
922001191
ref: 92200
WASHER
922001191
€ 6.50
130B
130V0855
ref: 130B
BOLT-FLANGED
€ 1.50
132
132E0620
ref: 132
EUFGFRGRITNLNRSDSPST
BOLT-FLANGED-SMALL
132E0620
€ 2.00
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
132J0612
€ 2.50
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
220B0406
€ 2.50
220A
220C0416
ref: 220A
SCREW-PAN-CROS
220C0416
€ 1.00
