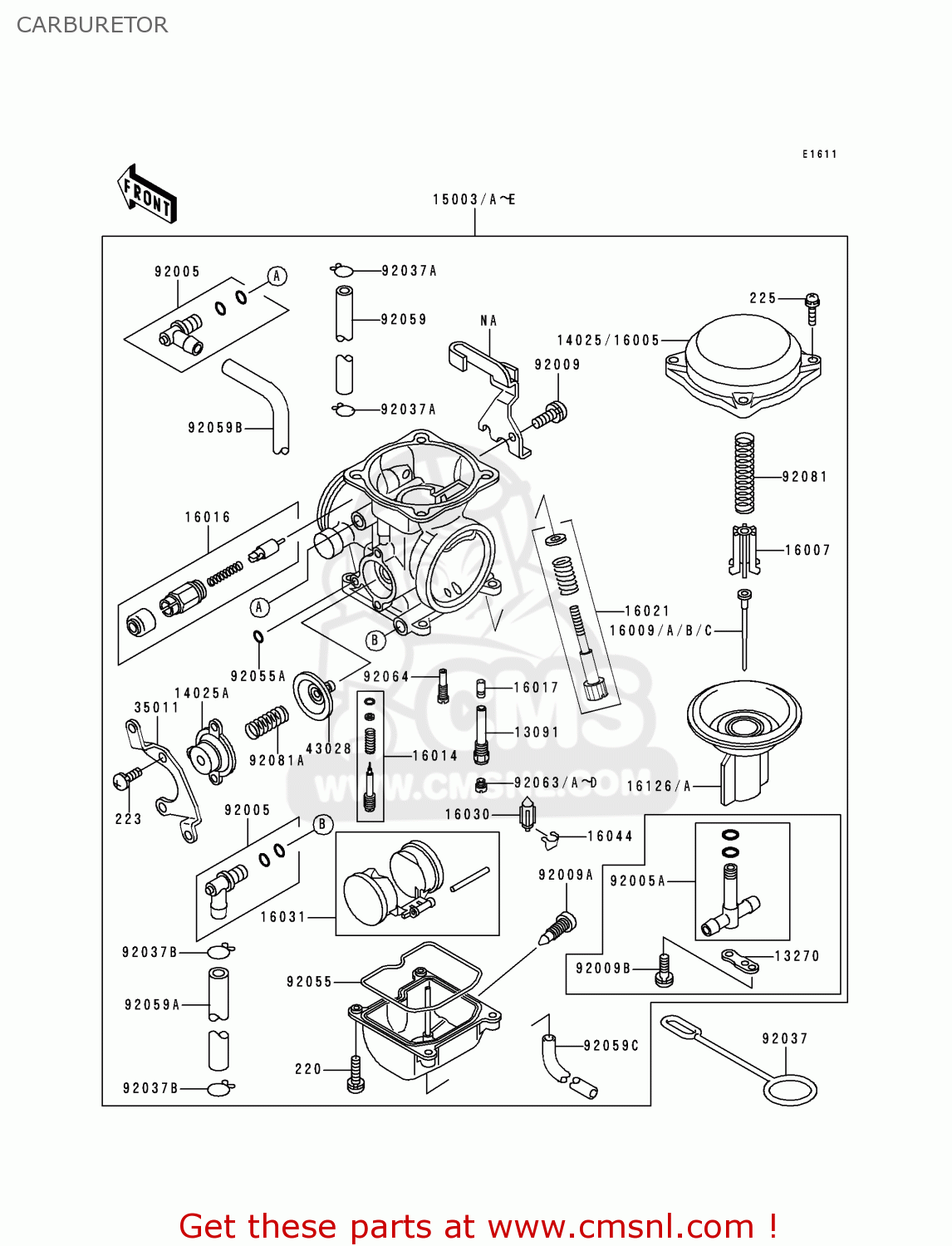

CARBURETOR

ref

part #

description

quantity

13091

130911425
ref: 13091

HOLDER,NEEDLE JET

€ 19.50

13270

132701063
ref: 13270
ARFGFRITNLSTUK

PLATE,JOINT STAY

€ 21.00

14025

140251890
ref: 14025

COVER,MIXING CHAMBER

€ 58.50

14025A

140251903
ref: 14025A

COVER,AIR CUT VALVE

€ 43.00

15003

150031117
ref: 15003
EUGRNRSDSP

CARBURETOR-ASSY

€ 448.50

15003A

150031120
ref: 15003A
FGFRITNLUK

CARBURETOR-ASSY

€ 503.50

15003B

150031160
ref: 15003B
ST

CARBURETOR-ASSY

€ 503.50

15003C

150031161
ref: 15003C
AR

CARBURETOR-ASSY

€ 448.50

16005

160051079
ref: 16005
FG

TOP-CHAMBER,25KW

€ 50.50

16007

160071113
ref: 16007

SEAT-SPRING,DIAPHRAGM

€ 13.50

16009

160091537
ref: 16009
EUFGFRGRITNLNRSDSPUK

NEEDLE-JET,N74C

€ 24.00

16009A

160091846
ref: 16009A
AR

NEEDLE-JET,N2PB

€ 21.50

16009B

160091854
ref: 16009B
ST

NEEDLE-JET,N2PC

€ 20.00

16009C

160091865
ref: 16009C
FG

NEEDLE-JET,N76U

€ 20.00

16014

160141082
ref: 16014

SCREW-PILOT AIR

€ 25.50

16016

160161087
ref: 16016

PLUNGER

€ 67.50

16017

160171254
ref: 16017

JET-NEEDLE,#6

€ 37.50

16021

160211201
ref: 16021

SCREW-THROTTLE STOP

€ 36.00

16030

160301057
ref: 16030

VALVE-FLOAT

€ 37.00

16031

160311077
ref: 16031

FLOAT

€ 39.00

16044

16044007
ref: 16044

CLIP, FLOAT VALVE

€ 4.00

16126

161261294
ref: 16126
AREUFGFRGRITNLNRSDSP

VALVE,VACUUM

€ 161.50

16126A

161261299
ref: 16126A
ST

VALVE,VACUUM

€ 145.50

35011

350111232
ref: 35011

STAY,AIR CUT VALVE

€ 25.00

43028

430281053
ref: 43028

DIAPHRAGM,5.9MM,AIR C

€ 62.50

92005

920051283
ref: 92005

FITTING,L-TYPE

€ 10.00

92005A

920051290
ref: 92005A
ARFGFRITNLSTUK

FITTING

€ 28.00

92009

920091365
ref: 92009

SCREW

€ 4.50

92009A

920091551
ref: 92009A

SCREW,DRAIN

€ 6.50

92009B

920091704
ref: 92009B
ARFGFRITNLSTUK

SCREW

€ 2.50

92037

92037134
ref: 92037

CLAMP,OVER FLOW PIPE

€ 7.50

92037A

920371477
ref: 92037A

CLAMP,TUBE

€ 3.00

92037B

920371531
ref: 92037B

CLAMP,TUBE

€ 3.50

92055

920551222
ref: 92055

RING-O,FLOAT CHAMBER

€ 12.50

92055A

920551245
ref: 92055A

RING-O

€ 3.50

92059

920591377
ref: 92059

TUBE,5X9X180

€ 16.50

92059A

920591463
ref: 92059A

TUBE,6.5X11.5X150

€ 20.00

92059B

920591727
ref: 92059B

TUBE,6.5X9.5X430

€ 18.00

92059C

920591838
ref: 92059C

TUBE,3.5X6.5X390

€ 14.50

92063

920631013
ref: 92063

MAIN JET,#140

€ 9.00

92063A

920631016
ref: 92063A

MAIN JET,#142

€ 9.00

92063B

920631017
ref: 92063B

MAIN JET,#145

€ 9.00

92063C

920631324
ref: 92063C

JET-MAIN,#148

€ 9.00

92063D

920631330
ref: 92063D

JET-MAIN,#150

€ 9.00

92064

920641108
ref: 92064

JET-PILOT,#40

€ 11.00

220

220D0414
ref: 220

SCREW-PAN-CROS

€ 2.00

223

223C0410
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

225

225C0418
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50

92081

920811718
ref: 92081

SPRING,DIAPHRAGM VALV

€ 18.50

92081A

920811719
ref: 92081A

SPRING,AIR CUT VALVE

€ 8.50
