BRAKE PEDAL

KL650C2 KLR650 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

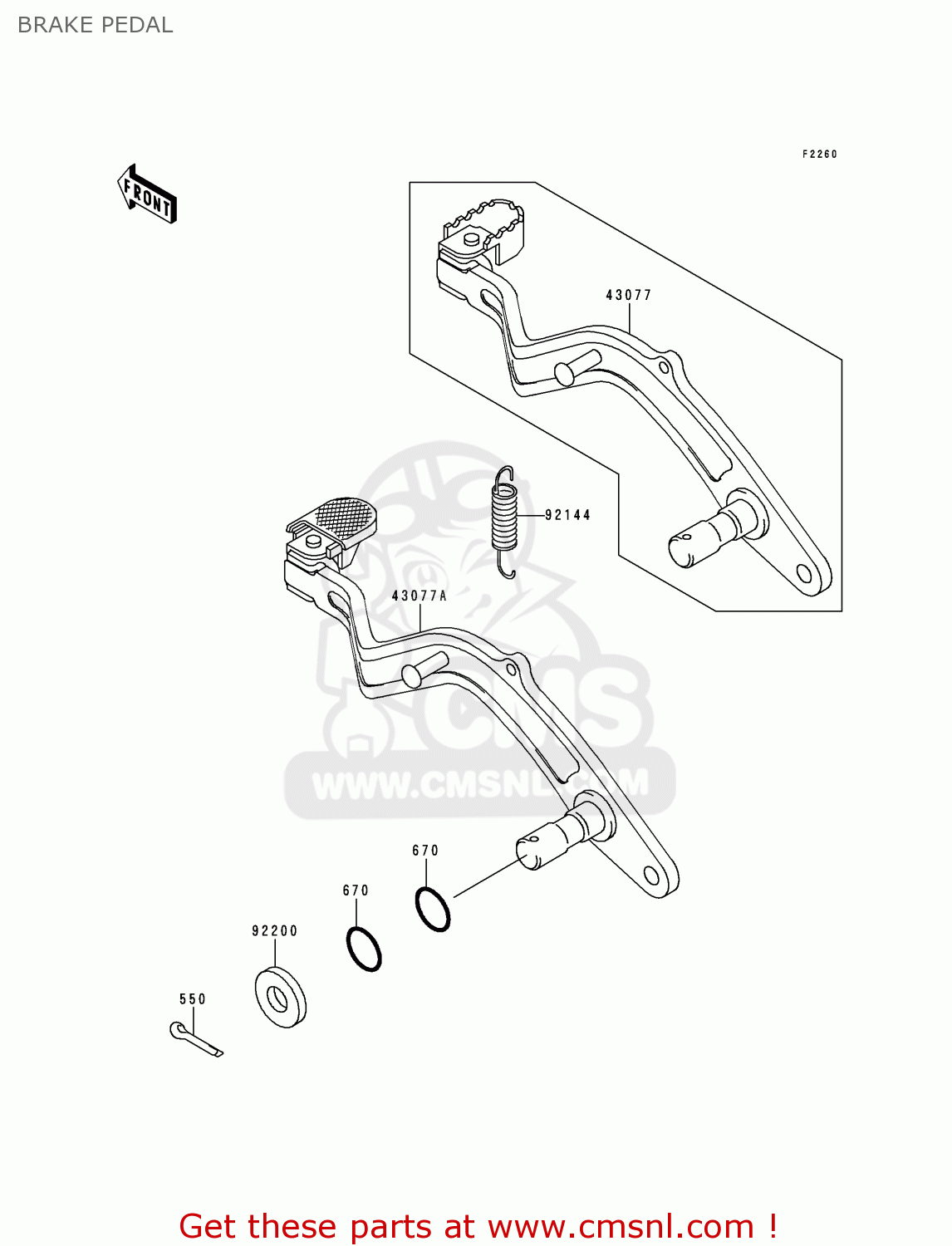

Brake pedal diagram KL650C2 KLR650 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

550

550D2525
ref: 550

PIN-COTTER,2.5X25

€ 1.00

670

670B2014
ref: 670

O RING,14MM

€ 1.00

43077

430771081
ref: 43077
AREUFRGRITNLNRSDSPST

LEVER-ASSY-BRAKE,PEDA

€ 73.00

43077A

430771082
ref: 43077A
FG

LEVER-ASSY-BRAKE,PEDA

€ 73.00

92144

921441853
ref: 92144

SPRING,BRAKE PEDAL RE

€ 4.00

92200

922001171
ref: 92200

WASHER,14.5X24X1.6

€ 2.50
