CHASSIS ELECTRICAL EQUIPMENT

KL650C2 KLR650 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

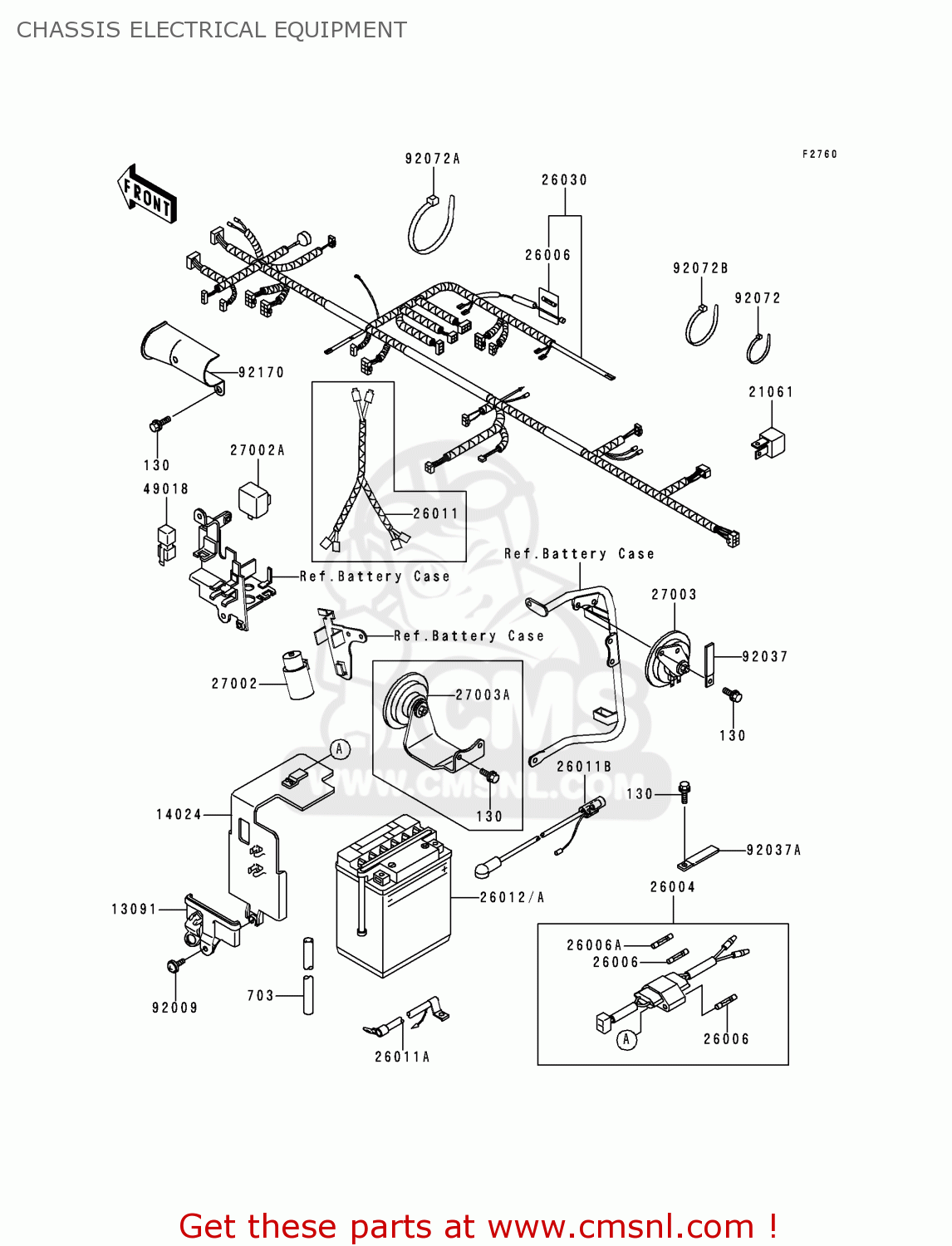

Chassis electrical equipment diagram KL650C2 KLR650 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

CHASSIS ELECTRICAL EQUIPMENT KL650C2 KLR650 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CHASSIS ELECTRICAL EQUIPMENT KL650C2 KLR650 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CHASSIS ELECTRICAL EQUIPMENT KL650C2 KLR650 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130J0610
ref: 130
AREUFGFRGRNLNRSDSPST
BOLT-FLANGED
130J0610
€ 1.50
130
130J0610
ref: 130
IT
BOLT-FLANGED
130J0610
€ 1.50
703
703A08580
ref: 703
TUBE-RUBBER,8X12X580
€ 13.50
13091
130911484
ref: 13091
HOLDER,BATTERY COVER
130911484
€ 13.00
14024
140241375
ref: 14024
COVER,BATTERY
140241375
€ 24.50
21061
210611003
ref: 21061
RECTIFIER
210611003
€ 25.00
26004
260041076
ref: 26004
FUSE-ASSY
260041076
€ 30.50
26006
260061002
ref: 26006
FUSE,10A,L=30M/M
260061002
€ 3.00
26006A
260061056
ref: 26006A
FUSE,20A,L=30
260061056
€ 3.00
26011
260111277
ref: 26011
IT
WIRE-LEAD,HORN
€ 28.50
26011A
260111387
ref: 26011A
WIRE-LEAD,BATTERY(-)
260111387
€ 26.00
26011B
260111623
ref: 26011B
WIRE-LEAD,BATTERY(+)
260111623
€ 26.00
26012
260121219
ref: 26012
BATTERY,12V 14AH,FB14
€ 61.50
26030
260301313
ref: 26030
HARNESS,MAIN
€ 265.50
27002
270021051
ref: 27002
RELAY-ASSY
270021051
€ 32.00
27002A
270021101
ref: 27002A
RELAY-ASSY,TURN SIGNA
270021101
€ 49.50
27003
270031273
ref: 27003
HORN
€ 64.00
27003A
270031386
ref: 27003A
IT
HORN
€ 59.00
49018
490181052
ref: 49018
DIODE
490181052
€ 35.50
92009
920091402
ref: 92009
SCREW,6X10
920091402
€ 1.50
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371608
ref: 92037A
CLAMP
920371608
€ 5.50
92072
920721195
ref: 92072
IT
BAND,L=185
920721195
€ 1.00
92072
920721195
ref: 92072
AREUFGFRGRNLNRSDSPST
BAND,L=185
920721195
€ 1.00
92072A
920721197
ref: 92072A
AREUFGFRGRNLNRSDSPST
BAND
920721197
€ 5.00
92072A
920721197
ref: 92072A
IT
BAND
920721197
€ 5.00
92072B
920721326
ref: 92072B
BAND,L=250
€ 3.00
92170
921701544
ref: 92170
CLAMP,HARNESS
€ 4.50
