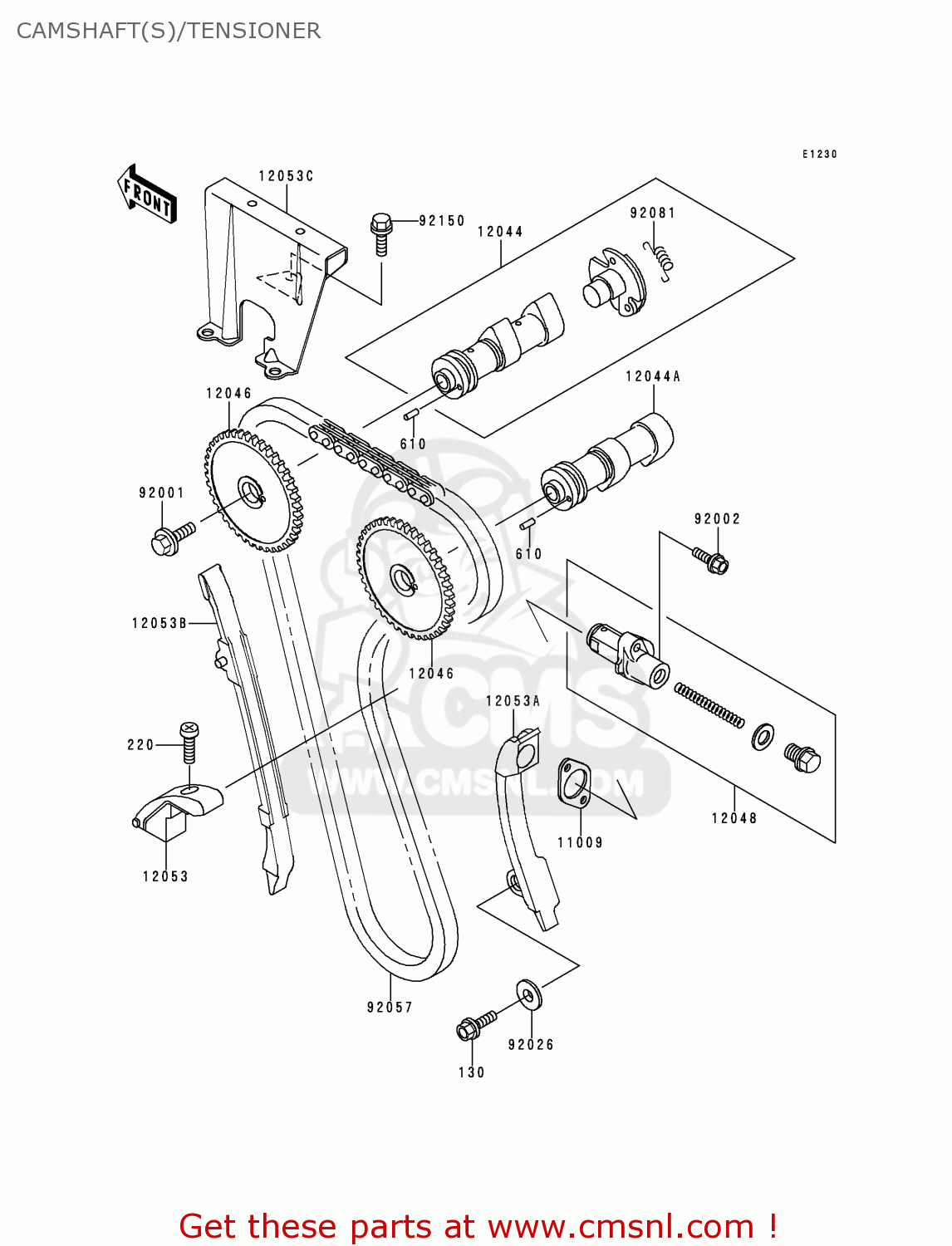

CAMSHAFT(S)/TENSIONER

KL650C2 KLR650 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

Camshaft(s)/tensioner diagram KL650C2 KLR650 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130G0825
ref: 130

BOLT,FLANGED,8X25

€ 0.50

220

220B0614
ref: 220

SCREW-PAN HEAD,6X14

€ 2.00

610

610A0410
ref: 610

ROLLER,4X10

€ 2.50

11009

110091858
ref: 11009

GASKET,TENSIONER (NAS)

€ 3.00

12044

120441370
ref: 12044

CAMSHAFT-VALVE,EXHAUS

€ 242.50

12044A

120441372
ref: 12044A

CAMSHAFT-VALVE,INTAKE

€ 310.50

12046

120461160
ref: 12046

SPROCKET,48T

€ 67.00

12048

120481094
ref: 12048

TENSIONER-ASSY

€ 121.50

12053

120531134
ref: 12053

GUIDE,CHAIN,LWR

€ 14.00

12053A

120531222
ref: 12053A

GUIDE-CHAIN,RR

€ 58.50

12053B

120531223
ref: 12053B

GUIDE-CHAIN,FR

€ 32.50

12053C

120531353
ref: 12053C

GUIDE-CHAIN,UPP

€ 27.00

92001

920011859
ref: 92001

BOLT,10X23

€ 6.50

92002

920021086
ref: 92002

BOLT,6X25

€ 3.50

92026

920261146
ref: 92026

SPACER

€ 5.50

92057

920571402
ref: 92057

CHAIN,CAM,92RH2015

€ 40.50

92081

920811626
ref: 92081

SPRING,DECOMPRESSOR

€ 3.00

92150

921501868
ref: 92150

BOLT,6X12

€ 2.00
