SIDE COVER/CHAIN CASE

KL650B1 TENGAI 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

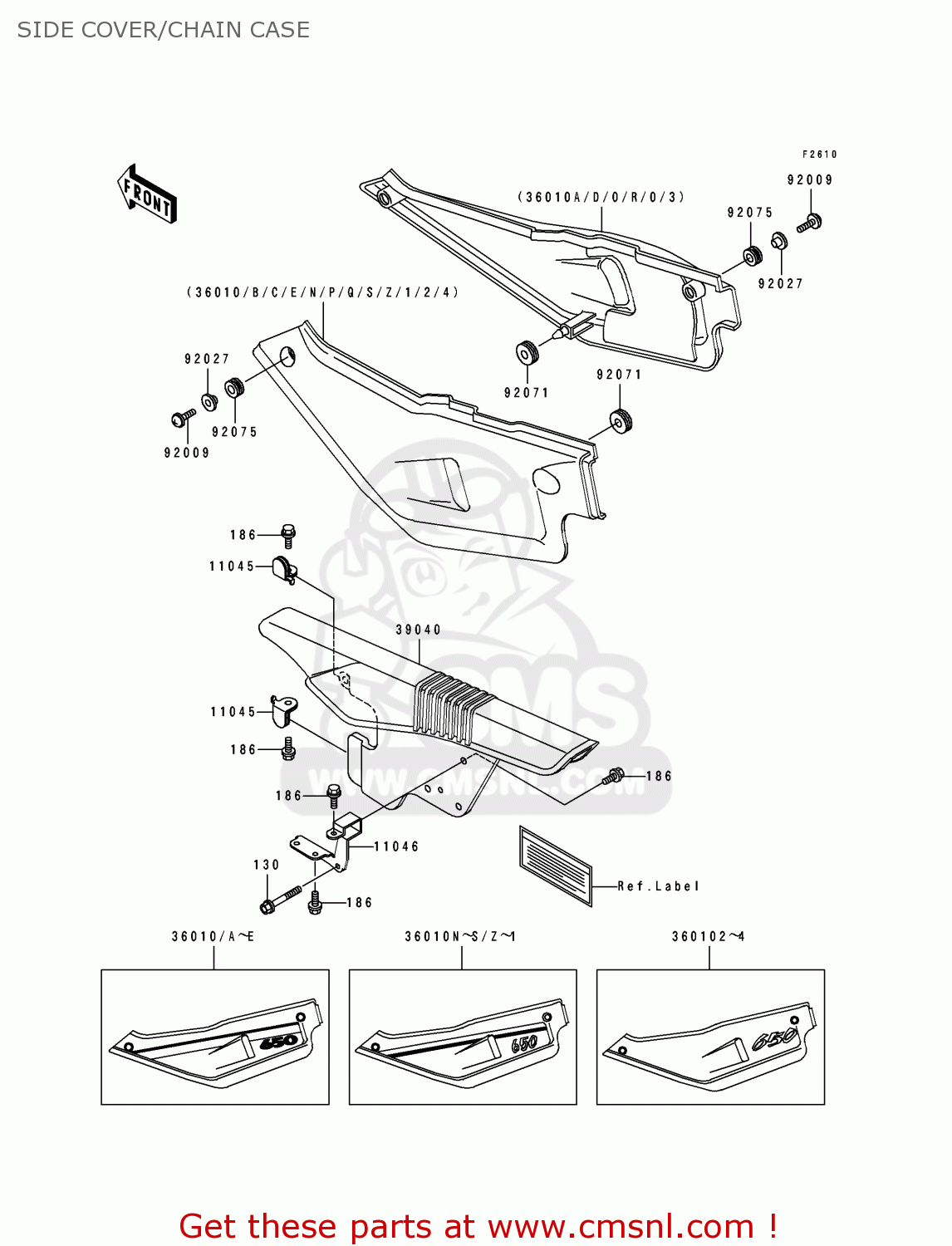

Side cover/chain case diagram KL650B1 TENGAI 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

11045

110451335
ref: 11045

BRACKET,CHAIN CASE,FR

€ 7.00

11046

110461391
ref: 11046

BRACKET,CHAIN CASE,RR

€ 9.00

36010

360105190H1
ref: 36010
EUFRGRITNRSDSPSTUKWG

COVER-SIDE,LH,S.RED

€ 101.50

36010A

360105191H1
ref: 36010A

COVER-SIDE,RH,S.RED

€ 120.50

36010B

360105192H1
ref: 36010B
AR

COVER-SIDE,LH,S.RED

€ 95.50

36010C

360105193EL
ref: 36010C
EUFRGRITNRSDSPSTUKWG

COVER-SIDE,LH,I.BLUE

€ 95.50

36010D

360105194EL
ref: 36010D

COVER-SIDE,RH,I.BLUE

€ 120.50

36010E

360105197EL
ref: 36010E
AR

COVER-SIDE,LH,I.BLUE

€ 95.50

130

130H0640
ref: 130

BOLT-FLANGED

€ 0.50

186

186C0612
ref: 186

BOLT-UPSET-WP

€ 0.50

39040

390401054
ref: 39040

COVER-ASSY-CHAIN CASE

€ 70.00

92009

920091111
ref: 92009

SCREW,6X18

€ 3.00

92027

920271795
ref: 92027

COLLAR,L=9.1,WHITE

€ 4.00

92071

92071056
ref: 92071

GROMMET

€ 2.50

92075

920751634
ref: 92075

DAMPER

€ 3.00

SIDE COVER/CHAIN CASE

all assemblies
