CLUTCH

KL650B1 TENGAI 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

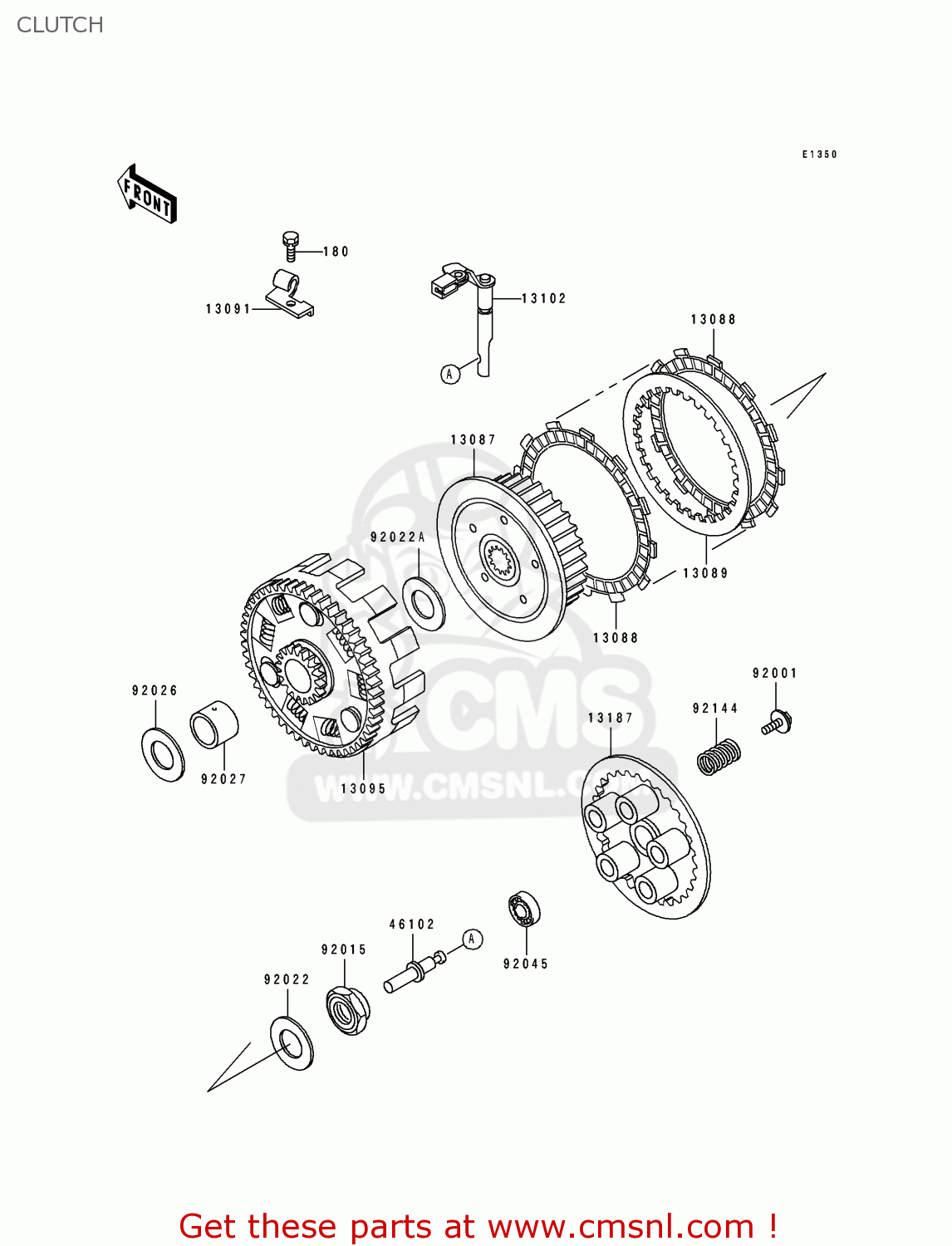

Clutch diagram KL650B1 TENGAI 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

180

180J0612
ref: 180

BOLT-UPSET-WS

€ 2.50

13087

130871052
ref: 13087

HUB-CLUTCH

€ 96.00

13088

13088040
ref: 13088

PLATE,CLUTCH FRICTION (NAS)

€ 12.50

13089

130891068
ref: 13089

PLATE-CLUTCH,T=2.0 (NAS)

€ 6.50

13091

130911257
ref: 13091

HOLDER,CLUTCH CABLE

€ 8.00

13095

130951157
ref: 13095

HOUSING-COMP-CLUTCH

€ 341.50

13102

131021074
ref: 13102

RELEASE-COMP-CLUTCH

€ 33.00

13187

131871012
ref: 13187

PLATE-CLUTCH OPERATIN (NAS)

€ 61.00

46102

461021030
ref: 46102

ROD,CLUTCH

€ 22.00

92001

920011066
ref: 92001

BOLT, CLUTCH SPR FITT

€ 4.00

92015

920151555
ref: 92015

NUT,20MM

€ 9.00

92022

920221116
ref: 92022

WASHER,20.3X36X2.3

€ 5.50

92022A

920221476
ref: 92022A

WASHER,25.5X52.6X2

€ 7.00

92026

920261206
ref: 92026

SPACER,25.1X38X4

€ 14.00

92027

920271684
ref: 92027

COLLAR,25X30X29.2

€ 24.00

92045

920451235
ref: 92045

BEARING-BALL,6001C3ML

€ 15.50

92144

921441151
ref: 92144

SPRING,CLUTCH

€ 5.50
