CAMSHAFT/TENSIONER

KL650B1 TENGAI 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

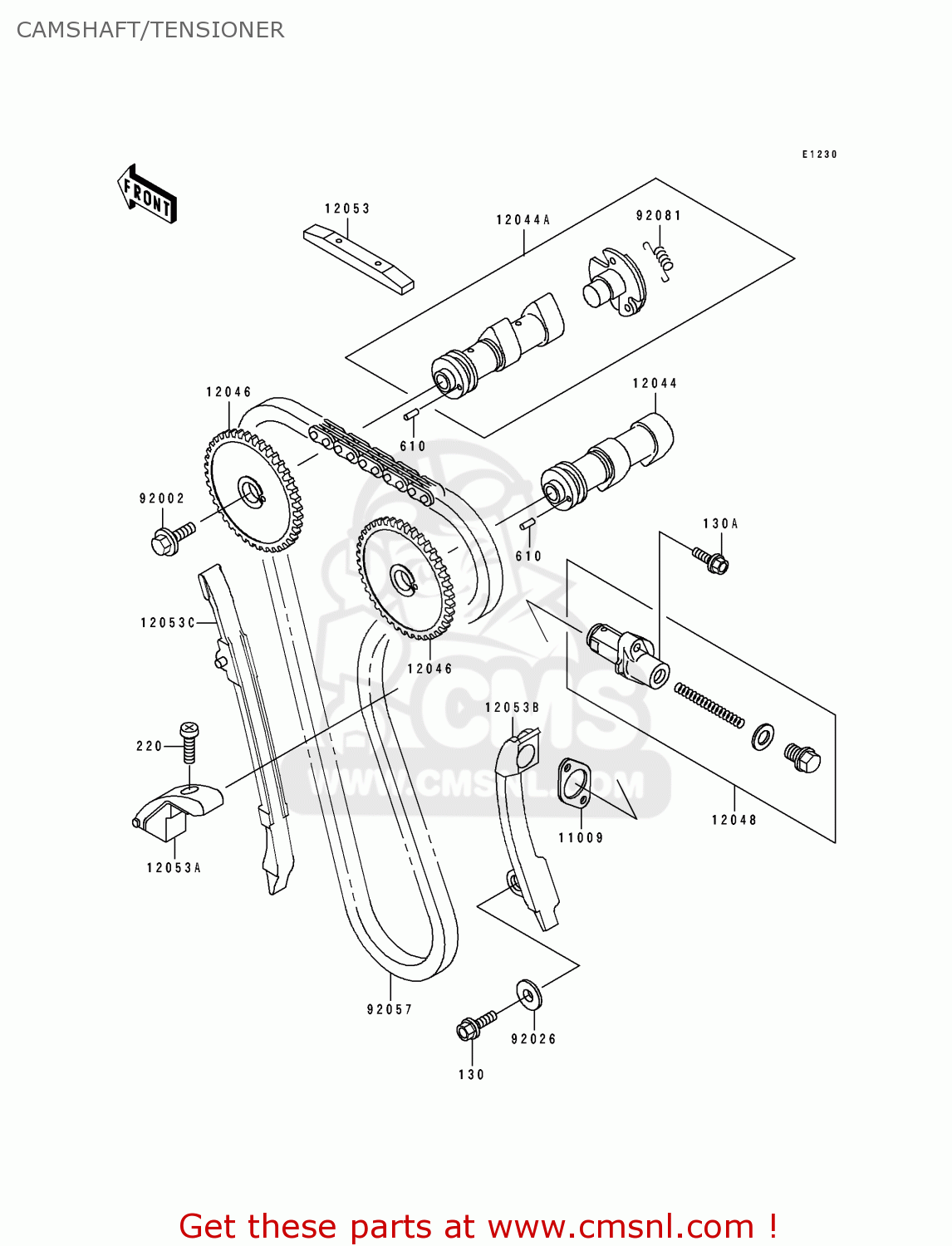

Camshaft/tensioner diagram KL650B1 TENGAI 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130G0825
ref: 130

BOLT,FLANGED,8X25

€ 0.50

130A

130J0625
ref: 130A

BOLT-FLANGED,6X25

€ 2.00

220

220B0614
ref: 220

SCREW-PAN HEAD,6X14

€ 2.00

610

610A0410
ref: 610

ROLLER,4X10

€ 2.50

11009

110091858
ref: 11009

GASKET,TENSIONER (NAS)

€ 3.00

12044

120441114
ref: 12044

CAMSHAFT-VALVE,INTAKE

€ 101.50

12044A

120441197
ref: 12044A

CAMSHAFT-VALVE,EXHAUS

€ 213.50

12046

120461062
ref: 12046

SPROCKET,CAMSHAFT,48T

€ 51.00

12048

120481094
ref: 12048

TENSIONER-ASSY

€ 121.50

12053

120531107
ref: 12053

GUIDE-CHAIN,UPP

€ 12.50

12053A

120531134
ref: 12053A

GUIDE,CHAIN,LWR

€ 14.00

12053B

120531222
ref: 12053B

GUIDE-CHAIN,RR

€ 58.50

12053C

120531223
ref: 12053C

GUIDE-CHAIN,FR

€ 32.50

92002

920011859
ref: 92002

BOLT,10X23

€ 6.50

92026

920261146
ref: 92026

SPACER

€ 5.50

92057

920571226
ref: 92057

CHAIN,CAMSHAFT,L174

€ 40.50

92081

920811626
ref: 92081

SPRING,DECOMPRESSOR

€ 3.00

CAMSHAFT/TENSIONER

all assemblies
