FRONT FORK

KL650B1 TENGAI 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

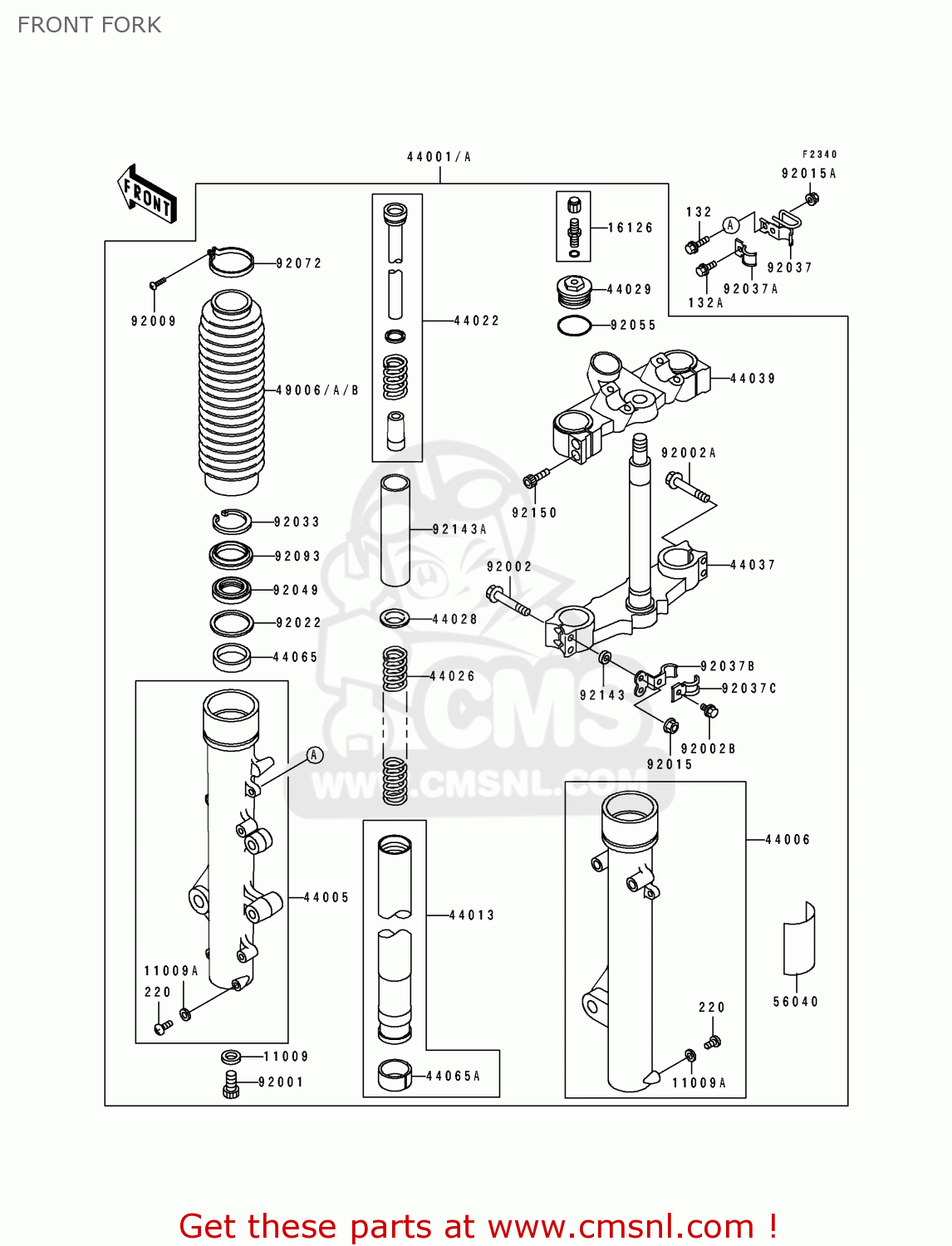

Front fork diagram KL650B1 TENGAI 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

FRONT FORK KL650B1 TENGAI 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
FRONT FORK KL650B1 TENGAI 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
FRONT FORK KL650B1 TENGAI 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
110091127
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
16126
161261052
ref: 16126
VALVE,AIR
161261052
€ 22.00
44001
440011717BC
ref: 44001
FORK-FRONT,BLUE
€ 1,660.50
44001A
440011717BL
ref: 44001A
FORK-FRONT,RED
€ 1,660.50
44005
440051293
ref: 44005
PIPE-LEFT FORK OUTER
440051293
€ 198.50
44006
440061290
ref: 44006
PIPE-RIGHT FORK OUTER
440061290
€ 198.50
44013
440131296
ref: 44013
PIPE-FORK INNER
440131296
€ 150.00
44022
440221241
ref: 44022
CYLINDER-FORK
440221241
€ 79.00
44026
440261433
ref: 44026
SPRING-FRONT FORK
€ 41.50
44028
440281004
ref: 44028
GUIDE-FORK SPRING
440281004
€ 7.50
44029
440291042
ref: 44029
SEAT-FORK SPRING
440291042
€ 51.50
44037
440371251
ref: 44037
HOLDER-FORK UNDER
€ 283.50
44039
440391188
ref: 44039
HOLDER-FORK UPPER
440391188
€ 115.50
44065
440651091
ref: 44065
BUSHING-FRONT FORK,OU
440651091
€ 17.00
44065A
440651092
ref: 44065A
BUSHING-FRONT FORK,IN
440651092
€ 16.50
49006
490061222BC
ref: 49006
BOOT,FORK,BLUE
490061222BC
€ 56.50
49006A
490061222BL
ref: 49006A
BOOT,FORK,RED
490061222BL
€ 45.00
56040
560401120
ref: 56040
LABEL,FRONT FORK
560401120
€ 3.50
92001
920011309
ref: 92001
BOLT,FORK CYLINDER
920011309
€ 4.50
92002
920021158
ref: 92002
BOLT,FLANGED,8X55
920021158
€ 6.00
92002A
920021848
ref: 92002A
BOLT,FLANGED,8X50
920021848
€ 9.00
92002B
920021982
ref: 92002B
BOLT
€ 3.00
92009
920091348
ref: 92009
SCREW
920091348
€ 3.50
92015
920151408
ref: 92015
NUT,FLANGED,8MM
920151408
€ 1.00
92015A
920151603
ref: 92015A
EUFRGRITNRSDSPSTUKWG
NUT
920151603
€ 3.00
92022
920221262
ref: 92022
WASHER,FORK OUTER PIP
920221262
€ 5.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
920331047
€ 4.00
92037
920371897
ref: 92037
CLAMP,HOSE
920371897
€ 8.50
92037A
920371898
ref: 92037A
CLAMP,HOSE
920371898
€ 5.50
92037B
920371913
ref: 92037B
CLAMP
920371913
€ 14.00
92037C
920371931
ref: 92037C
CLAMP
€ 7.00
92049
920491180
ref: 92049
SEAL-OIL,FRONT FORK
920491180
€ 14.50
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
920551050
€ 4.00
132
132E0620
ref: 132
EUFRGRITNRSDSPSTUKWG
BOLT-FLANGED-SMALL
132E0620
€ 2.00
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
132J0612
€ 2.50
220
220E0408
ref: 220
SCREW-PAN HEAD,4X8
220E0408
€ 2.50
92072
920721171
ref: 92072
BAND,BOOT
€ 6.50
92093
920931166
ref: 92093
SEAL,FRONT FORK
920931166
€ 12.50
92143
921431134
ref: 92143
COLLAR
921431134
€ 8.00
92143A
921431337
ref: 92143A
COLLAR,FORK,L=150
€ 13.50
92150
921501307
ref: 92150
BOLT
921501307
€ 3.00
