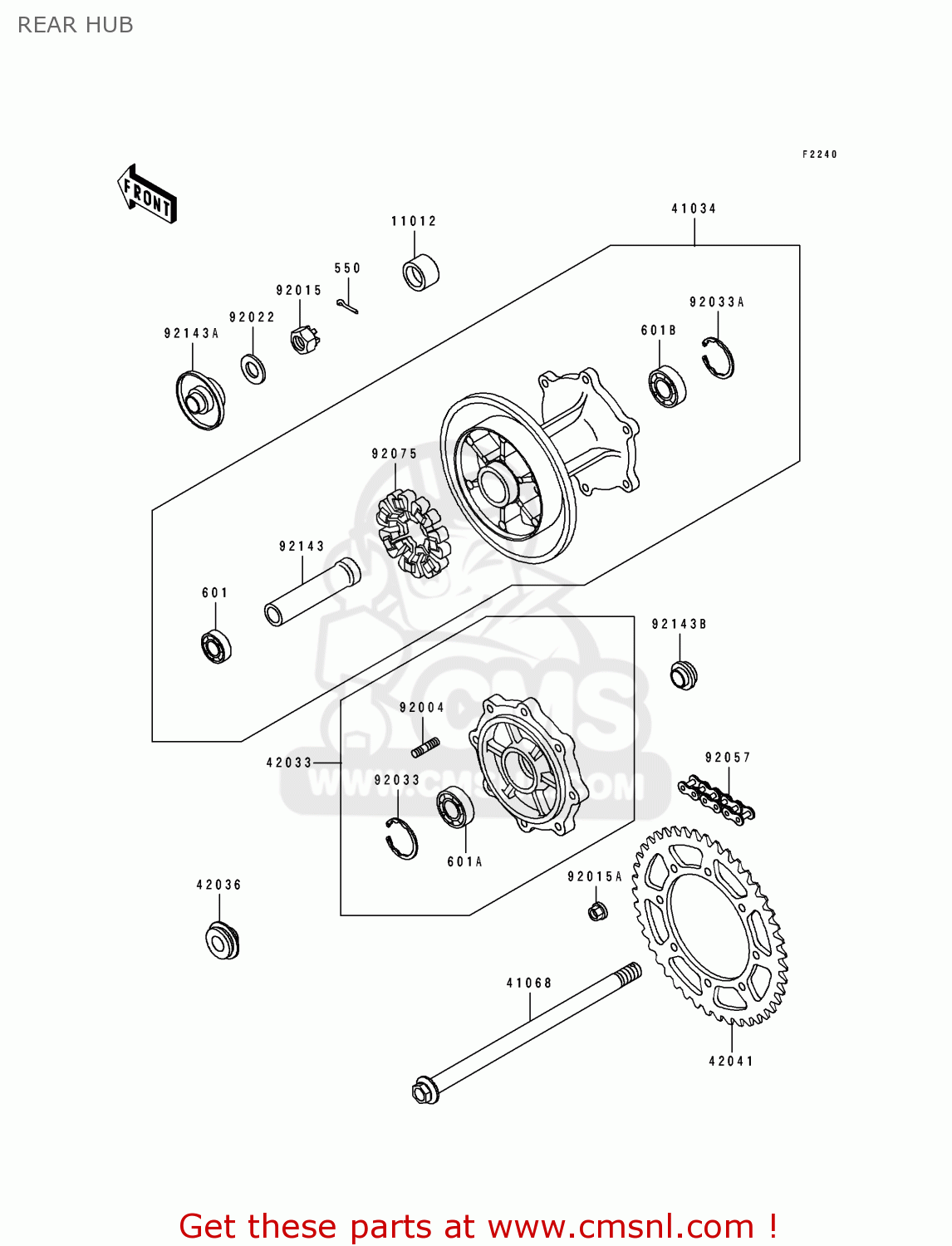

REAR HUB

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6003G
ref: 601

BEARING BALL

€ 17.00

601A

601B6004UG
ref: 601A

BEARING-BALL,#6004U

€ 27.50

601B

601B6204UG
ref: 601B

BEARING BALL

€ 24.50

11012

110121592
ref: 11012
WG

CAP,AXLE NUT

€ 5.00

41034

410341154
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 530.50

41068

410681237
ref: 41068

AXLE,RR

€ 62.50

42033

420331112
ref: 42033

COUPLING-ASSY,REAR HU

€ 197.00

42036

420361206
ref: 42036

SLEEVE,REAR AXLE,L=16

€ 13.00

42041

420411260
ref: 42041

SPROCKET-HUB,43T

€ 39.50

92004

920041150
ref: 92004

STUD, 8X16

€ 3.50

92015

42045014
ref: 92015

NUT CASTLE, 16M/M

€ 6.50

92015A

920151668
ref: 92015A

NUT

€ 3.00

92022

42046009
ref: 92022

WASHER-SLEEVE

€ 5.00

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92033A

920331042
ref: 92033A

CIRCLIP,47M/M

€ 4.00

92057

920571253
ref: 92057

CHAIN,DRIVE,DID520V2X

€ 44.00

92075

920751068
ref: 92075

DAMPER,SHOCK,RR HUB

€ 34.50

92143

921431060
ref: 92143

COLLAR,REAR BRAKE DRU

€ 26.00

92143A

921431061
ref: 92143A

COLLAR,REAR AXLE,L=30

€ 16.50

92143B

921431062
ref: 92143B

COLLAR,REAR AXLE,L=17

€ 19.50
