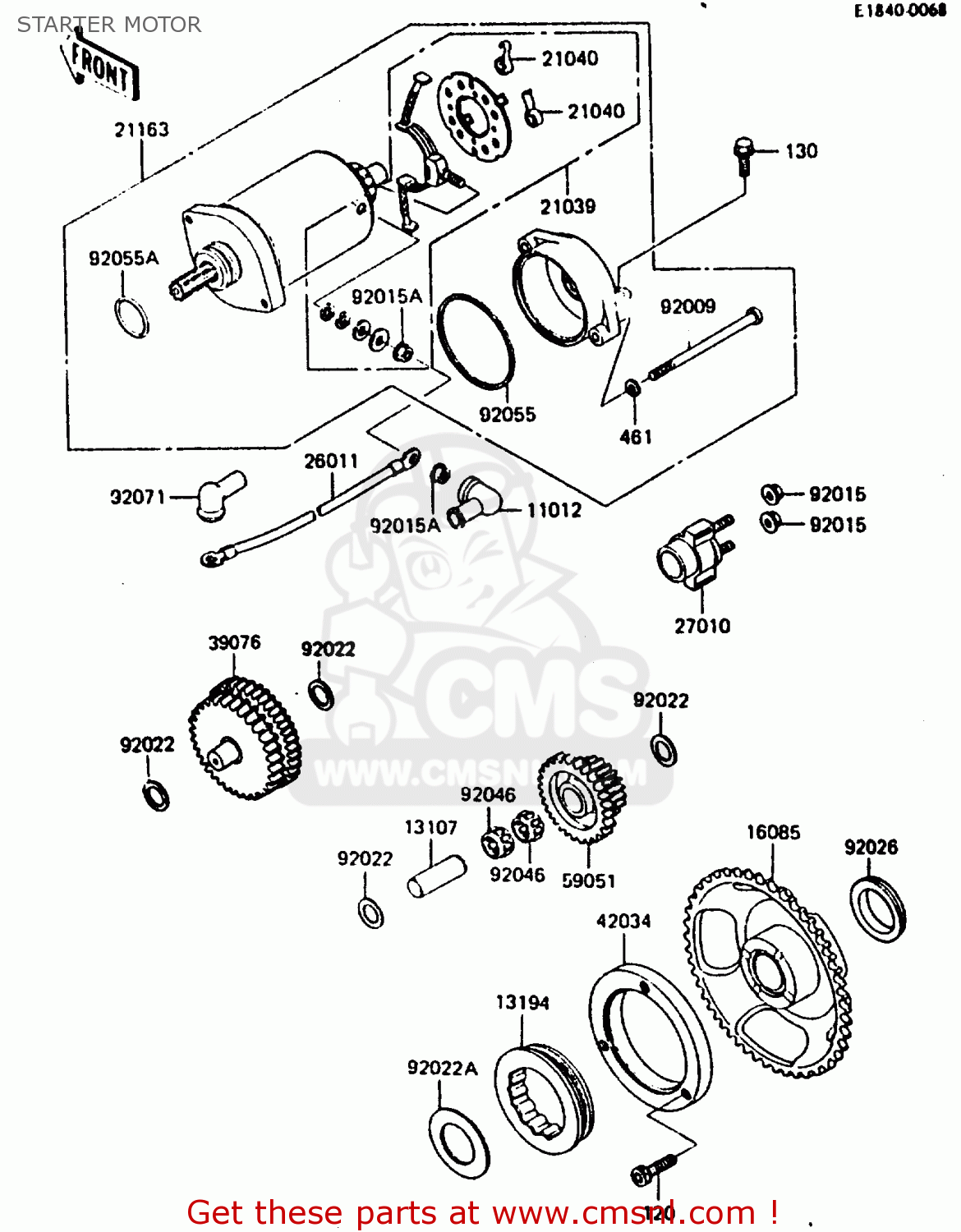

STARTER MOTOR

ref

part #

description

quantity

11012

110121354
ref: 11012

CAP,TERMINAL

€ 7.00

13107

131071135
ref: 13107

SHAFT,IDLER

€ 13.00

13194

131941056
ref: 13194

CLUTCH-ONEWAY

€ 112.00

16085

160851206
ref: 16085

GEAR,ONEWAY CLUTCH

€ 261.00

21039

210391053
ref: 21039

BRUSH,CARBON

€ 89.50

21040

210401003
ref: 21040

SPRING-BRUSH

€ 6.00

21163

211631077
ref: 21163

STARTER-ELECTRIC

€ 369.50

26011

260111325
ref: 26011

WIRE-LEAD,STARTER MOT

€ 34.00

27010

270101075
ref: 27010

SWITCH STARTER

€ 51.50

39076

390761056
ref: 39076

LIMITER

€ 189.50

42034

420341067
ref: 42034

COUPLING

€ 89.50

59051

590511133
ref: 59051

GEAR-SPUR,20T & 37T

€ 94.50

92009

920091369
ref: 92009

SCREW

€ 6.50

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92015A

920151476
ref: 92015A

NUT,6MM

€ 2.50

92022

920221649
ref: 92022

WASHER,10.2X20X0.5

€ 2.50

92022A

920221650
ref: 92022A

WASHER,32.2X50X1.0

€ 4.50

92026

920261264
ref: 92026

SPACER

€ 24.00

92046

920461134
ref: 92046

BEARING-NEEDLE,K10X14

€ 17.00

92055

920551086
ref: 92055

O RING,64MM

€ 6.50

92055A

920551276
ref: 92055A

RING-O

€ 6.50

92071

21017017
ref: 92071

GROMMET-CORD

€ 6.50

120

120P0818
ref: 120

BOLT-SOCKET

€ 2.00

130

130G0625
ref: 130

BOLT,FLANGED,6X25

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50
