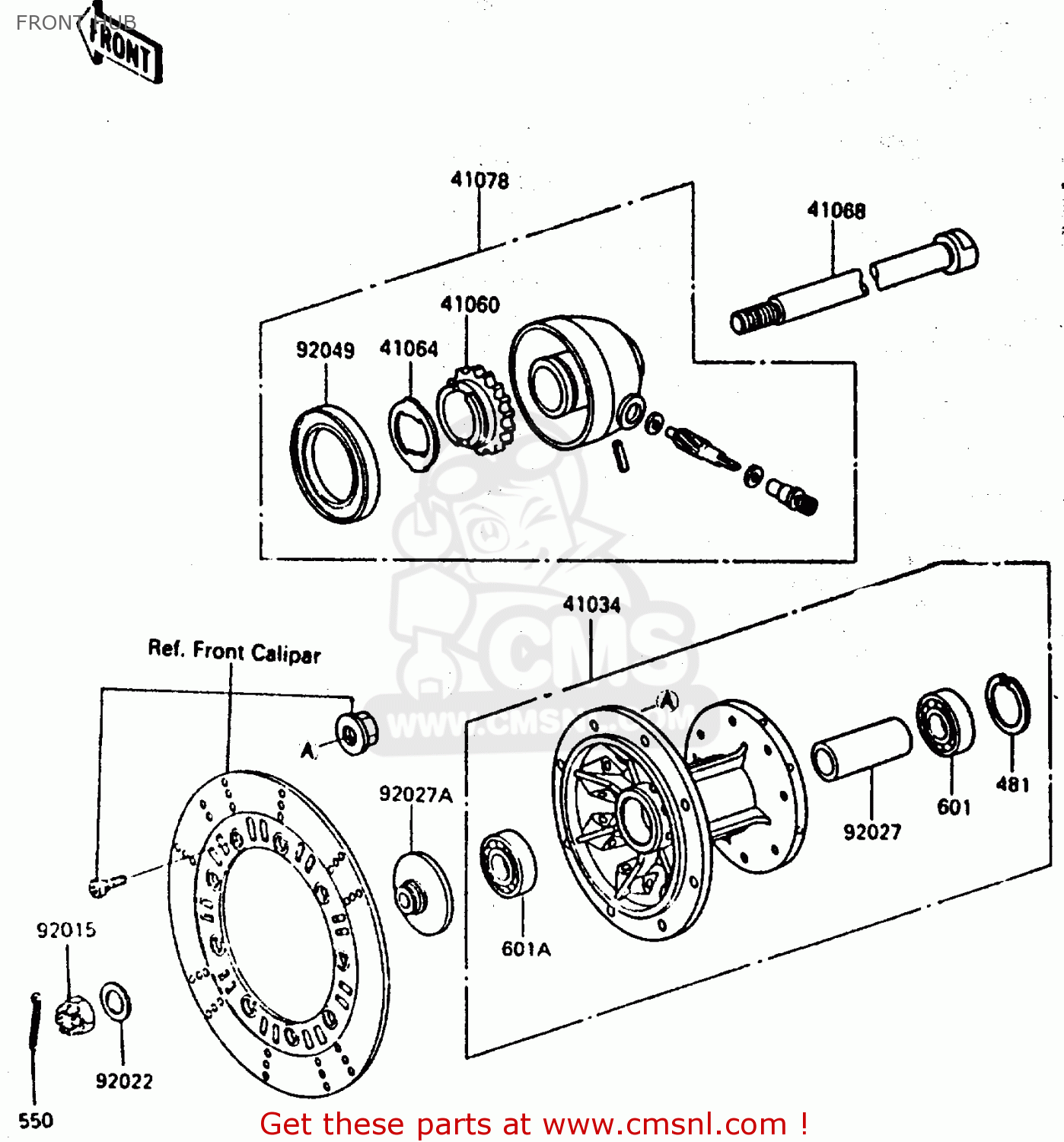

FRONT HUB

KL600B2 1986 EUROPE UK FR CP GR IT NR SD SP WG

Front hub diagram KL600B2 1986 EUROPE UK FR CP GR IT NR SD SP WG

prices are in EUR

ref

part #

description

quantity

41034

410341128
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 437.00

41060

410601101
ref: 41060

GEAR-METER SCREW,24T

€ 27.00

41064

410641051
ref: 41064

RECEIVER-SPEEDOMETER

€ 8.00

41068

410681185
ref: 41068

AXLE,FR

€ 55.00

41078

410781051
ref: 41078

CASE-ASSY-METER GEAR

€ 103.00

92015

42045020
ref: 92015

NUT,14MM

€ 6.50

92022

920221550
ref: 92022

WASHER,15.5X28X2

€ 2.50

92027

920271683
ref: 92027

COLLAR,FRONT BRAKE DR

€ 28.50

92027A

920271864
ref: 92027A

COLLAR

€ 21.50

92049

920491172
ref: 92049

SEAL-OIL,METER GEAR C

€ 12.00

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

550

550D3035
ref: 550

PIN-COTTER,3.0X35

€ 2.00

601

601B6202U
ref: 601

BEARING-BALL,#6202UC3

€ 19.50

601A

601B6203U
ref: 601A

BEARING-BALL,#6203LUC

€ 35.50

FRONT HUB

all assemblies
