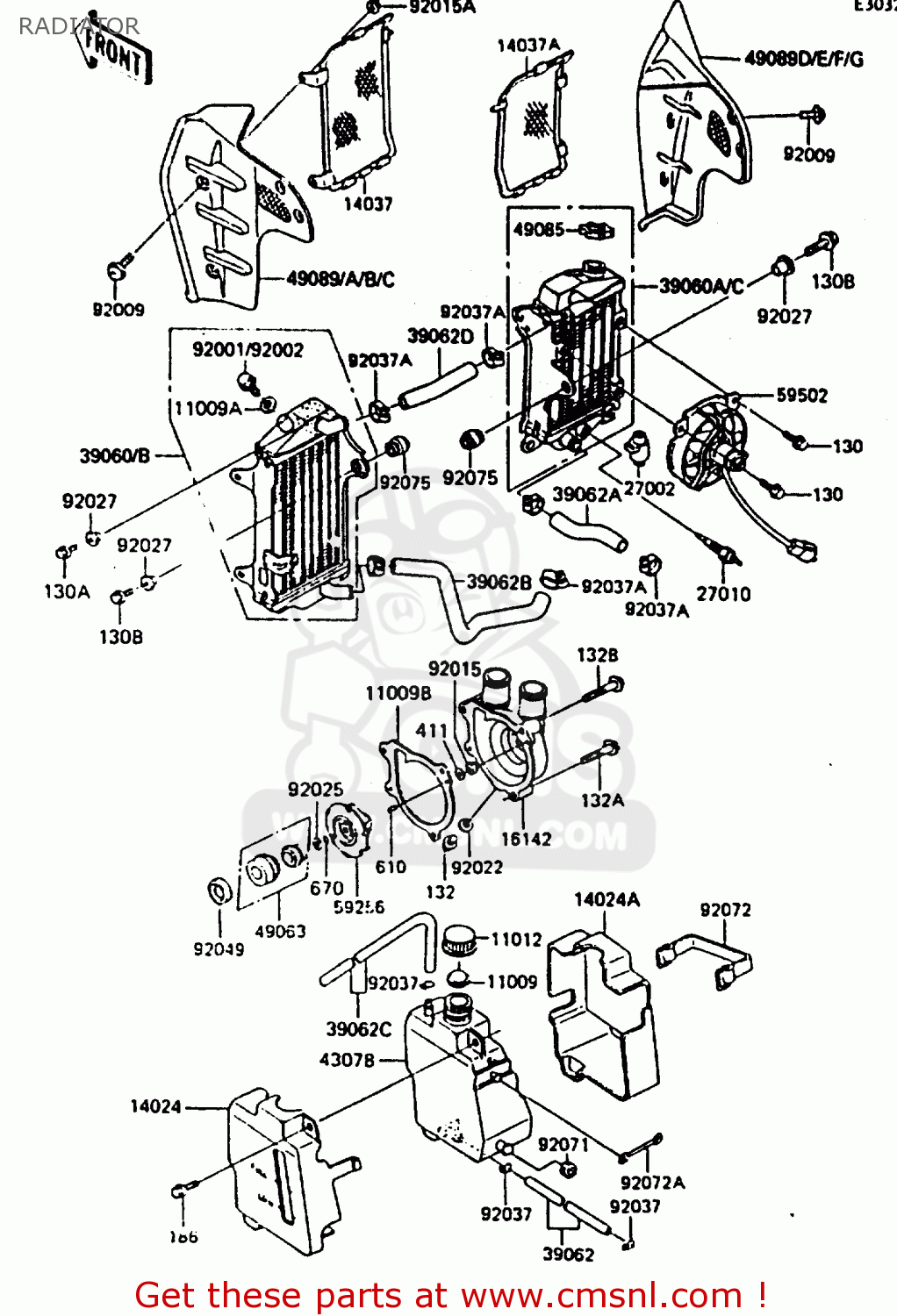

RADIATOR

ref

part #

description

quantity

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11009A

110091152
ref: 11009A

GASKET,DRAIN BOLT (NAS)

€ 4.50

11009B

110091367
ref: 11009B

GASKET,WATER PUMP COV (MCA)

€ 5.00

11012

110121084
ref: 11012

CAP

€ 1.50

14024

140251991
ref: 14024

COVER,RESERVOIR

€ 28.00

14024A

140251092
ref: 14024A

COVER GEAR CASE

€ 86.00

14037

140371056
ref: 14037

SCREEN,RADIATOR,LH

€ 38.50

14037A

140371057
ref: 14037A

SCREEN,RADIATOR,RH

€ 34.50

16142

161421057
ref: 16142

COVER-PUMP,WATER

€ 44.50

27002

270021051
ref: 27002

RELAY-ASSY

€ 32.00

27010

270101167
ref: 27010

SWITCH,FAN

€ 108.50

39060

390601051
ref: 39060
FR, GR, IT, NR, SD,

RADIATOR,LH

€ 547.50

3060A

390601052
ref: 3060A
FR, GR, IT, NR, SD,

RADIATOR,RH

€ 527.50

39060B

390601055
ref: 39060B
EU, SP

RADIATOR,LH

€ 526.00

39060C

390601056
ref: 39060C
EU, SP

RADIATOR,RH

€ 552.50

39062

390621060
ref: 39062

HOSE-COOLING,5.5X10.5

€ 17.00

39062A

390621062
ref: 39062A

HOSE-COOLING,CYLINDER

€ 10.50

39062B

390621090
ref: 39062B

HOSE-COOLING,RADIATOR

€ 20.00

39062C

390621111
ref: 39062C

HOSE-COOLING,PUMP-CYL

€ 21.00

39062D

390621133
ref: 39062D

HOSE-COOLING,RADIATOR

€ 17.00

43078

430781061
ref: 43078

RESERVOIR,TANK

€ 30.00

49063

490631054
ref: 49063

SEAL-MECHANICAL

€ 19.00

49085

490851052
ref: 49085

CAP-ASSY-PRESSURE

€ 39.50

49089

4908910536B
ref: 49089
EU, GR, IT, SD, SP,

SHROUD-ENGINE,LH,S.RE

€ 26.00

49089B

4908910536F
ref: 49089B
RU, GR, IT, SD, SP,

SHROUD-ENGINE,LH,P.WH

€ 24.50

49089C

4908910536W
ref: 49089C
EU, FR, SP, UK, WG

SHROUD-ENGINE,LH,L.GR

€ 23.50

49089D

4908910546B
ref: 49089D
EU, GR, IT, SD, SP,

SHROUD-ENGINE,RH,S.RE

€ 24.50

49089E

4908910546C
ref: 49089E

SHROUD-ENGINE,RH,EBON

€ 24.50

49089F

4908910546F
ref: 49089F
EU, GR, IT, SD, SP,

SHROUD-ENGINE,RH,P.WH

€ 24.50

49089G

4908910546W
ref: 49089G
EU, FR, SP, UK, WG

SHROUD-ENGINE,RH,L.GR

€ 23.50

59254

592561055
ref: 59254

IMPELLER

€ 20.00

59502

595021052
ref: 59502

FAN-ASSY

€ 515.50

92001

920011277
ref: 92001
EU, SP

PLUG,RADIATOR DRAIN

€ 13.50

92002

920021682
ref: 92002
FR, GR, IT, NR, SD,

BOLT,RADIATOR DRAIN

€ 13.50

92009

920091287
ref: 92009

SCREW,6X14

€ 1.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92015A

920151170
ref: 92015A

NUT,CAP 6MM,BLACK

€ 0.50

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92025

920251507
ref: 92025

SHIM,T=0.8

€ 2.50

92027

920271183
ref: 92027

COLLAR,6.5X10X14.1

€ 3.50

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92037A

920371589
ref: 92037A

CLAMP,COOLING HOSE

€ 13.00

92049

920491157
ref: 92049

SEAL-OIL,SC10227

€ 6.50

92071

920711115
ref: 92071

GROMMET,RESERVOIR TAN

€ 3.50

92072

92072053
ref: 92072

BAND-SPARK PLUG COVER

€ 8.50

92072A

920721156
ref: 92072A

BAND,L=58

€ 3.50

92075

920751352
ref: 92075

DAMPER,RADIATOR

€ 4.00

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

130A

130J0620
ref: 130A

BOLT-FLANGED,6X20

€ 2.50

130B

130J0625
ref: 130B

BOLT-FLANGED,6X25

€ 2.00

132

132J0608
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

132A

132W0630
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132W0635
ref: 132B

BOLT-FLANGED-SMALL

€ 2.50

186

186J0618
ref: 186

BOLT-UPSET-WP

€ 2.50

411

411F0600
ref: 411

WASHER-PLAIN,6MM,BLAC

€ 0.50

610

610A0408
ref: 610

ROLLER,4X8

€ 2.50

670

670B1506
ref: 670

O RING,6MM

€ 1.00

all assemblies
