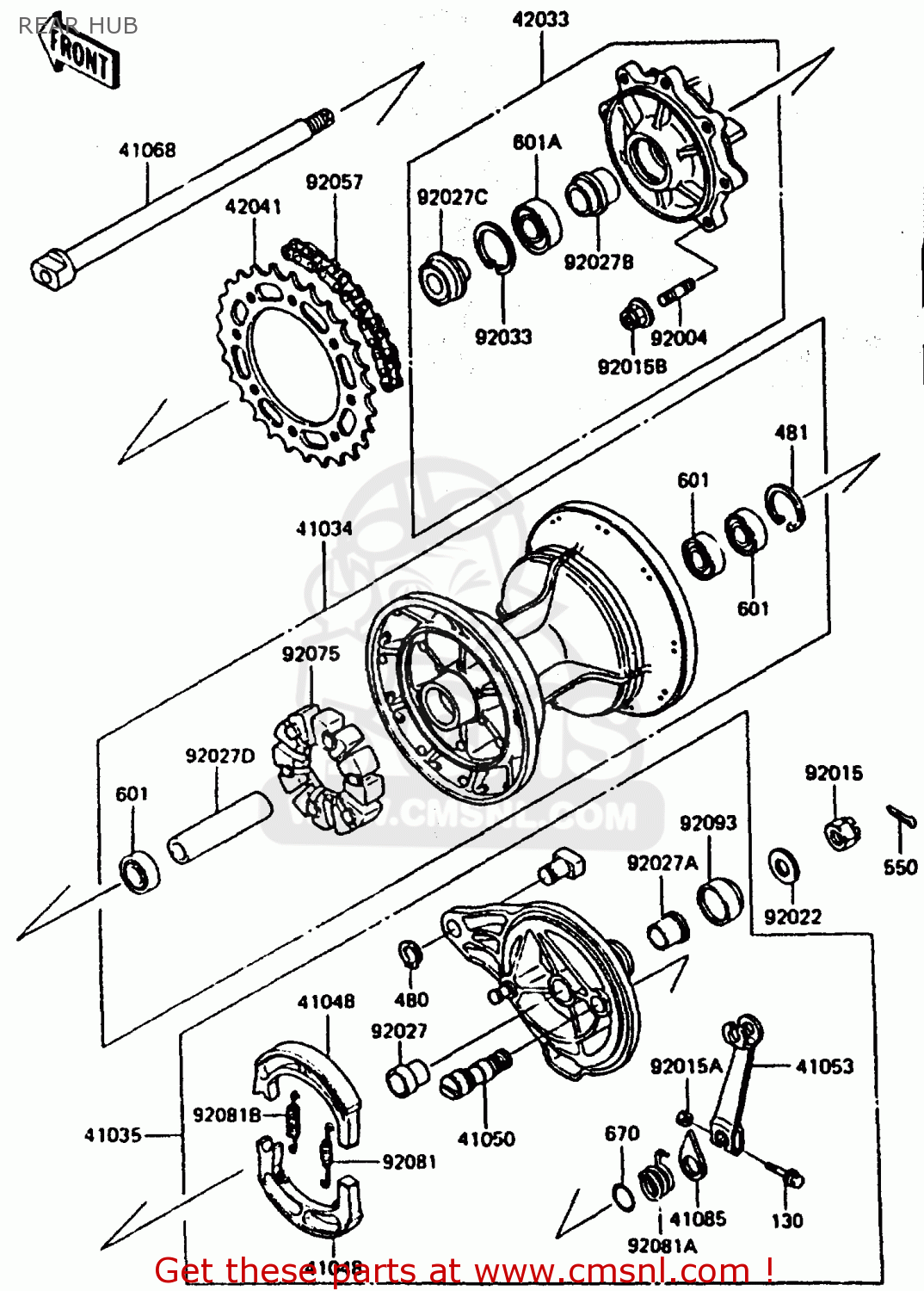

REAR HUB

ref

part #

description

quantity

41034

410341107
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 386.50

41035

410351194
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 260.50

41048

410481060
ref: 41048

SHOE-BRAKE (MCA)

€ 26.00

41050

410501060
ref: 41050

CAM-BRAKE

€ 25.50

41053

410531051
ref: 41053

LEVER-BRAKE CAM

€ 55.00

41068

410681194
ref: 41068

AXLE,RR

€ 110.00

41085

41085005
ref: 41085

INDICATOR,FRONT BRAK

€ 9.00

42033

420331112
ref: 42033

COUPLING-ASSY,REAR HU

€ 197.00

42041

420411185
ref: 42041

SPROCKET-HUB,43T

€ 29.50

92004

920041150
ref: 92004

STUD, 8X16

€ 3.50

92015

42045014
ref: 92015

NUT CASTLE, 16M/M

€ 6.50

92015A

920151078
ref: 92015A

NUT,6M/M

€ 1.50

92015B

920151306
ref: 92015B

NUT,FLANGED,5MM,BLACK

€ 2.50

92022

42046009
ref: 92022

WASHER-SLEEVE

€ 5.00

92027

920271689
ref: 92027

COLLAR,REAR BRAKE PAN

€ 13.50

92027A

920271690
ref: 92027A

COLLAR,REAR BRAKE PAN

€ 11.00

92027B

920271770
ref: 92027B

COLLAR,REAR HUB COUPL

€ 14.50

92027C

920271771
ref: 92027C

COLLAR,REAR HUB COUPL

€ 12.00

92027D

920271772
ref: 92027D

COLLAR,REAR BRAKE DRU

€ 9.50

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92057

920571177
ref: 92057

CHAIN,DRIVE,EK520LDOX

€ 71.00

92075

920751068
ref: 92075

DAMPER,SHOCK,RR HUB

€ 34.50

92081

920811550
ref: 92081

SPRING,BRAKE SHOE

€ 6.00

92081A

920811615
ref: 92081A

SPRING,BRAKE CAM LEVE

€ 13.00

92081B

920811766
ref: 92081B

SPRING,BRAKE SHOE

€ 5.50

92093

920931004
ref: 92093

OIL SEAL

€ 3.50

130

130G0630
ref: 130

BOLT, FLANGED, 6X30

€ 0.50

480

480J1400
ref: 480

CIRCLIP-TYPE-C,14MM

€ 3.00

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6003U
ref: 601

BEARING-BALL,#6003UC3

€ 21.50

601A

601B6004U
ref: 601A

BEARING-BALL,#6004UC3

€ 27.50

670

670B2015
ref: 670

O RING,15MM

€ 1.00

all assemblies
