ENGINE COVER

KL600B2 1986 EUROPE UK FR CP GR IT NR SD SP WG

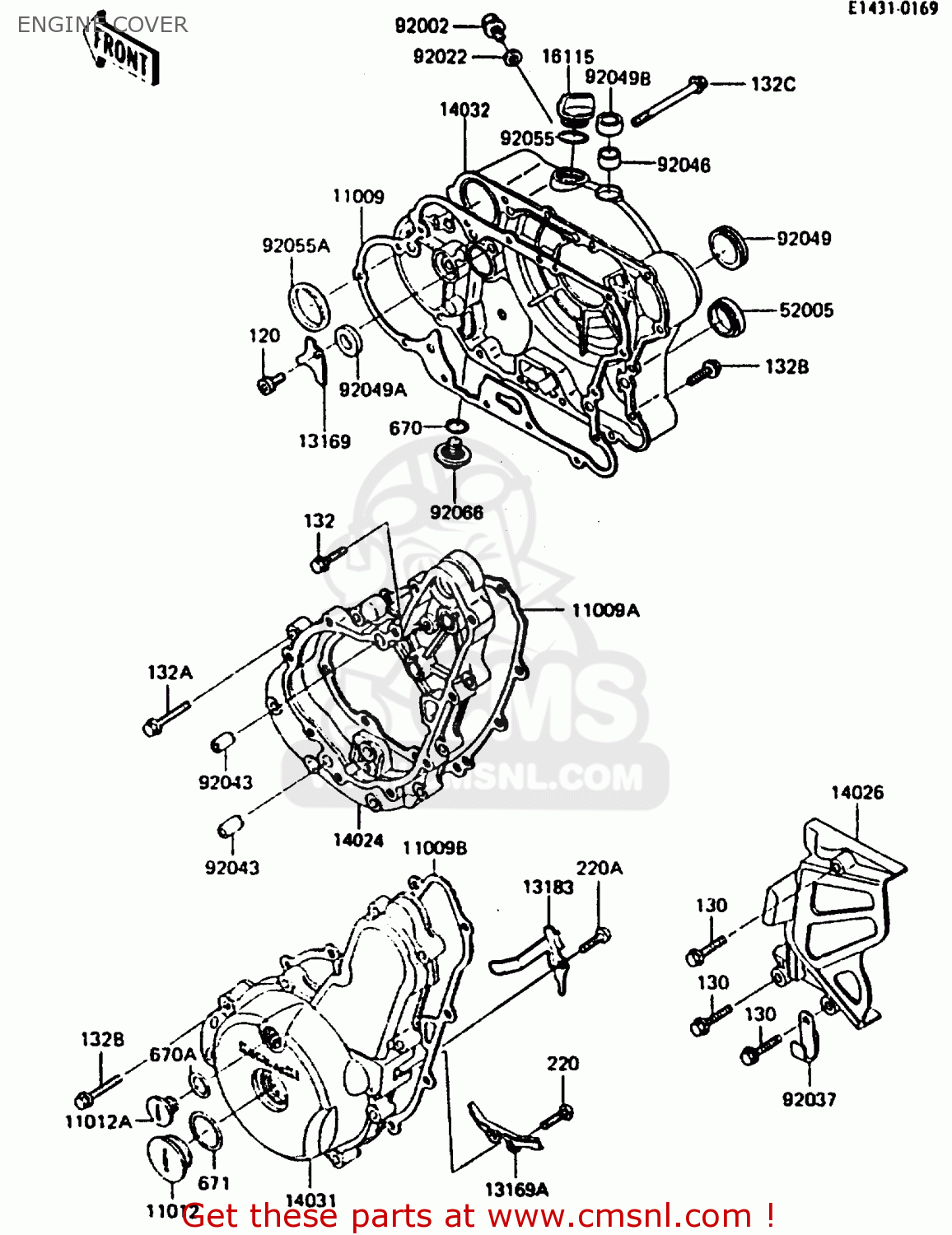

Engine cover diagram KL600B2 1986 EUROPE UK FR CP GR IT NR SD SP WG

ENGINE COVER KL600B2 1986 EUROPE UK FR CP GR IT NR SD SP WG
ENGINE COVER KL600B2 1986 EUROPE UK FR CP GR IT NR SD SP WG
ENGINE COVER KL600B2 1986 EUROPE UK FR CP GR IT NR SD SP WG
prices are in EUR
ref
part #
description
quantity
11009
110091368
ref: 11009
GASKET,CLUTCH COVER (MCA)
110091368
€ 23.00
11009A
110091369
ref: 11009A
GASKET,GENERATOR CASE (MCA)
110091369
€ 18.00
11009B
110091481
ref: 11009B
GASKET,GENERATOR COVE (MCA)
110091481
€ 18.00
11012
110121362
ref: 11012
CAP
110121362
€ 6.00
11012A
110121363
ref: 11012A
CAP,TOP MARK
110121363
€ 4.00
13169
131691735
ref: 13169
PLATE,OIL SEAL
131691735
€ 4.00
13169A
131691882
ref: 13169A
PLATE,PULSING COIL LE
131691882
€ 6.00
13183
131831144
ref: 13183
PLATE,GENERATOR
131831144
€ 6.50
14024
140251990
ref: 14024
COVER,GENERATOR CASE
140251990
€ 215.50
14026
140261115
ref: 14026
COVER-CHAIN
140261115
€ 29.50
14031
140311210
ref: 14031
COVER-GENERATOR
140311210
€ 140.50
14032
140321187
ref: 14032
COVER-CLUTCH
140321187
€ 131.50
16115
161151009
ref: 16115
CAP-OIL FILLER
161151009
€ 10.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
520051009
€ 12.00
92002
920021356
ref: 92002
BOLT
920021356
€ 4.00
92022
92022304
ref: 92022
WASHER,PLAIN
92022304
€ 2.50
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
920461010
€ 17.00
92049
920491048
ref: 92049
OIL SEAL,SC22325
920491048
€ 6.00
92049A
920491158
ref: 92049A
SEAL-OIL,SCY 15X30X7
920491158
€ 16.50
92049B
92051004
ref: 92049B
OIL SEAL,TB12205.5
92051004
€ 7.00
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92055A
920551221
ref: 92055A
RING-O,62.6X66X3.1
920551221
€ 6.00
92066
920661156
ref: 92066
PLUG,DRAIN
920661156
€ 9.50
120
120P0610
ref: 120
BOLT-SOCKET,6X10
120P0610
€ 1.00
130
130J0625
ref: 130
BOLT-FLANGED,6X25
130J0625
€ 2.00
132
132W0620
ref: 132
BOLT-FLANGED-SMALL
132W0620
€ 2.00
132A
132W0625
ref: 132A
BOLT-FLANGED-SMALL
132W0625
€ 2.50
132B
132W0630
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132W0680
ref: 132C
BOLT-FLANGED-SMALL
132W0680
€ 4.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
220B0510
€ 0.50
220A
220B0612
ref: 220A
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
670
670B2011
ref: 670
O RING,11MM
670B2011
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
670B2018
€ 1.00
671
671B2540
ref: 671
O RING,40MM
671B2540
€ 4.00
