REAR MASTER CYLINDER
KL500-A3 1989 AUSTRIA

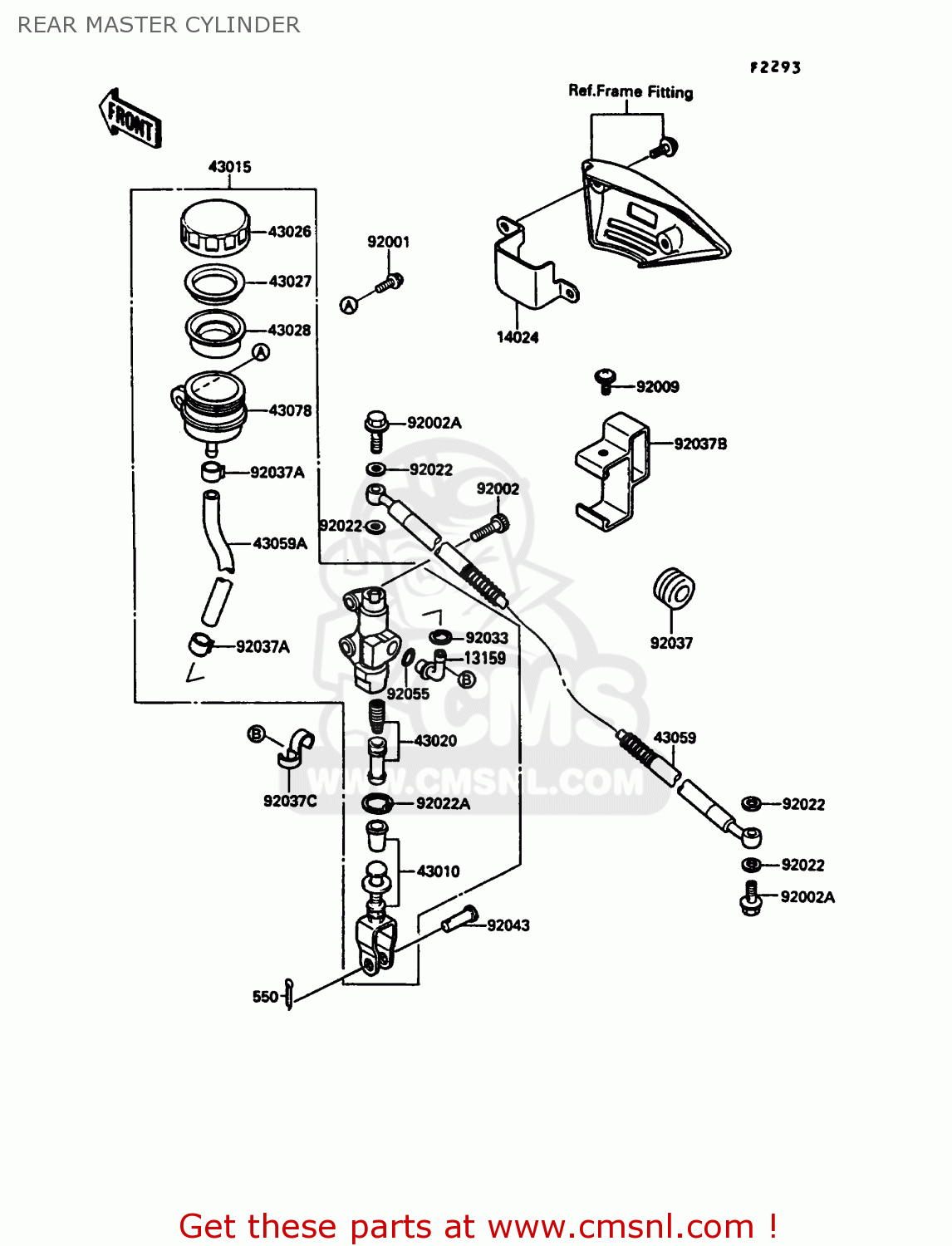

Rear master cylinder diagram KL500-A3 1989 AUSTRIA
REAR MASTER CYLINDER KL500-A3 1989 AUSTRIA
×
prices are in EUR
ref
part #
description
quantity
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
13159
131591056
ref: 13159
CONNECTOR
€ 9.50
14024
140241531
ref: 14024
COVER,RESERVOIR TANK
€ 7.00
43010
430101062
ref: 43010
ROD-ASSY-BRAKE
€ 38.50
43015
430151339
ref: 43015
CYLINDER-ASSY-MASTER,
€ 237.00
43020
430201063
ref: 43020
PISTON-COMP-BRAKE
€ 47.50
43026
430261062
ref: 43026
CAP-BRAKE
€ 25.00
43027
430271053
ref: 43027
PLATE-DIAPHRAGM
€ 4.00
43028
430281065
ref: 43028
DIAPHRAGM
€ 13.00
43059
430591376
ref: 43059
HOSE-BRAKE,RR
€ 74.00
43059A
430591408
ref: 43059A
HOSE-BRAKE
€ 15.50
43078
430781080
ref: 43078
RESERVOIR
€ 19.00
92001
920011860
ref: 92001
BOLT,W/P,6X16
€ 2.50
92002
920021485
ref: 92002
BOLT,FLANGED,8X22
€ 2.50
92002A
920021888
ref: 92002A
BOLT,OIL,L=23
€ 3.50
92009
920091294
ref: 92009
SCREW,6X8
€ 2.50
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
€ 1.50
92022A
920221601
ref: 92022A
WASHER,CIRCRIP
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
€ 3.00
92037
43064007
ref: 92037
43064007
92037A
920371710
ref: 92037A
CLAMP
€ 6.50
92037B
920371895
ref: 92037B
CLAMP,HOSE
€ 6.50
92037C
920371914
ref: 92037C
CLAMP,HOSE
€ 3.50
92043
920431303
ref: 92043
PIN,8MM
€ 2.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
€ 2.50
