IGNITION SWITCH
KL500-A3 1989 AUSTRIA

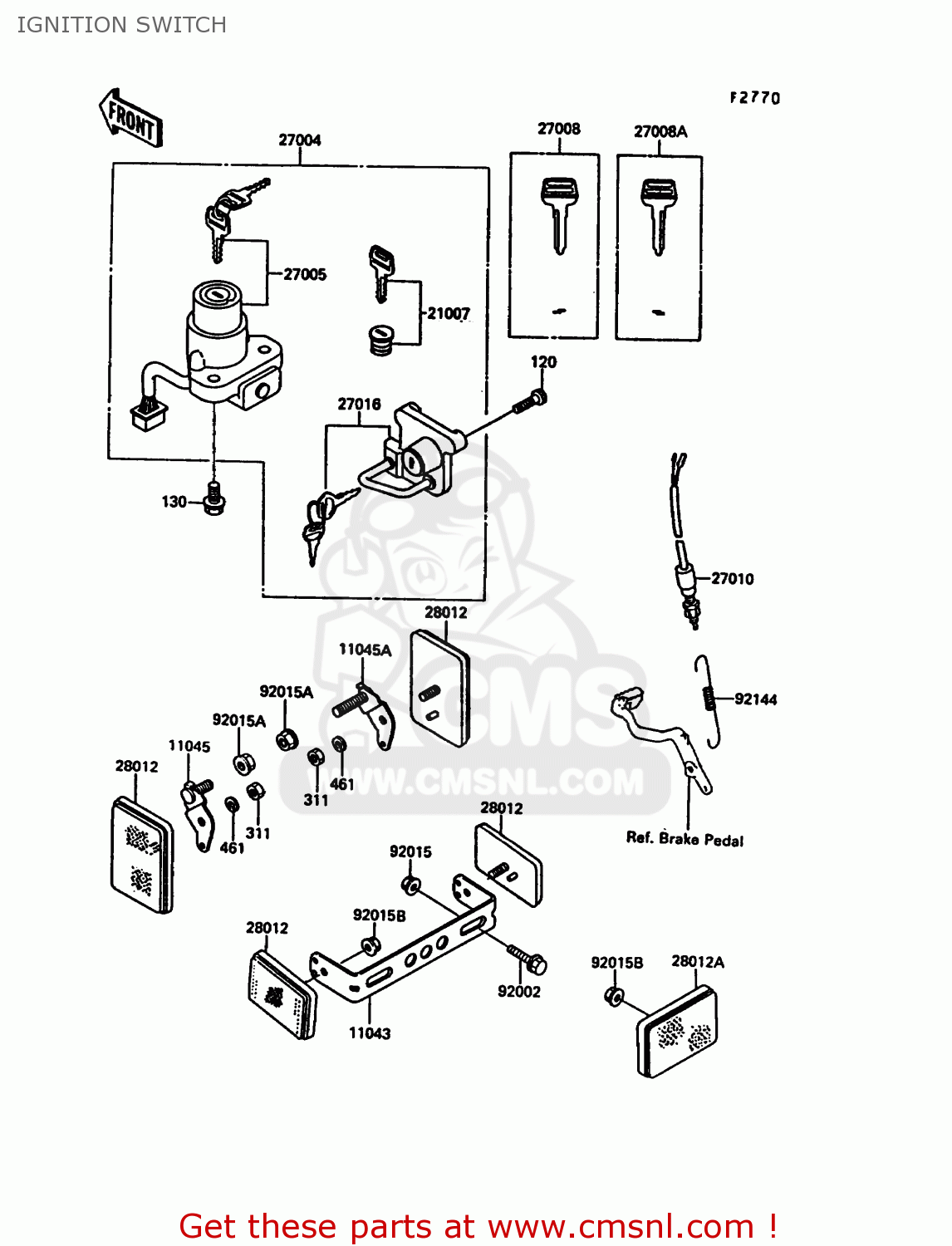

Ignition switch diagram KL500-A3 1989 AUSTRIA
IGNITION SWITCH KL500-A3 1989 AUSTRIA
×
prices are in EUR
ref
part #
description
quantity
120
120S0612
ref: 120
BOLT-SOCKET
€ 1.50
130
130D0614
ref: 130
BOLT-FLANGED,6X14
€ 0.50
311
311B0500
ref: 311
NUT-HEX
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
11043
110431619
ref: 11043
BRACKET,REFLECTOR,RR
€ 9.00
11045
110451354
ref: 11045
BRACKET,REFLECTOR,FR
€ 5.50
11045A
110451355
ref: 11045A
BRACKET,REFLECTOR,FR
€ 6.00
21007
210075022
ref: 21007
ROTOR,LOCK,TANK CAP
€ 50.50
27004
270045322
ref: 27004
SWITCH-ASSY
€ 256.50
27005
270051129
ref: 27005
SWITCH-ASSY-IGNITION
€ 229.00
27008
270081034
ref: 27008
KEY,BLANK
€ 13.00
27008A
270081035
ref: 27008A
KEY,BLANK
€ 12.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
€ 23.00
27016
270165075
ref: 27016
LOCK-ASSY,HELMET
€ 84.00
28012
280121003
ref: 28012
REFLECTOR,REFLEX
€ 15.00
28012A
280121054
ref: 28012A
REFLECTOR-REFLEX,RR
€ 15.00
92002
920021132
ref: 92002
BOLT,6X12
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151233
ref: 92015A
NUT,FLANGED,6MM
€ 3.50
92015B
920151259
ref: 92015B
NUT,FLANGED,5MM
€ 2.50
92144
921441093
ref: 92144
SPRING,REAR BRAKE SWI
€ 3.00
