HEADLIGHT(S)
KL500-A3 1989 AUSTRIA

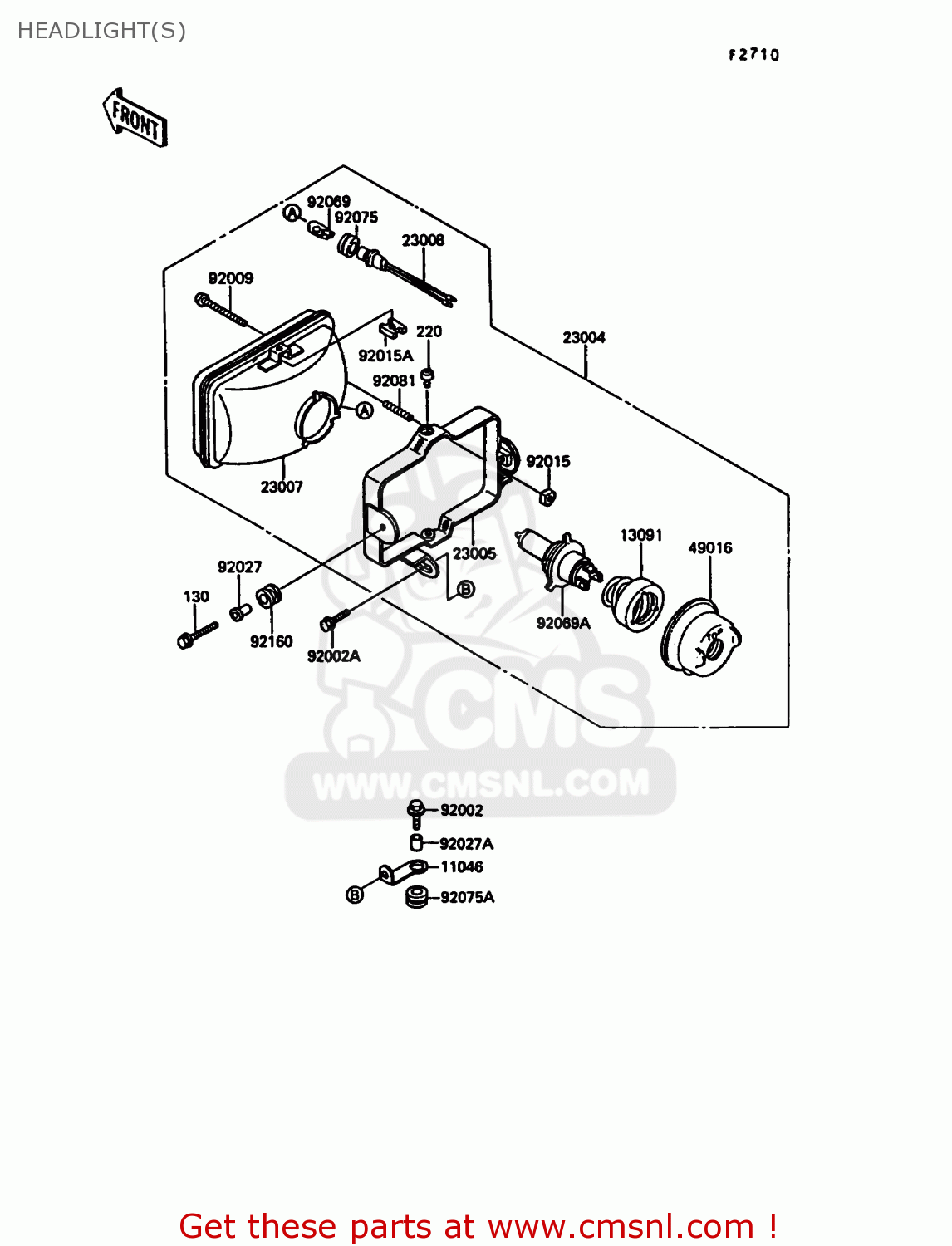

Headlight(s) diagram KL500-A3 1989 AUSTRIA
HEADLIGHT(S) KL500-A3 1989 AUSTRIA
×
prices are in EUR
ref
part #
description
quantity
130
130B0825
ref: 130
BOLT,FLANGED,8X25
€ 1.00
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
€ 0.50
11046
110461041
ref: 11046
BRACKET,HEAD LAMP
€ 3.00
13091
130911558
ref: 13091
HOLDER,SOCKET
€ 9.00
23004
230041247
ref: 23004
LAMP-HEAD
€ 336.50
23005
230051052
ref: 23005
BODY-COMP-HEAD LAMP
€ 27.50
23007
230071175
ref: 23007
LENS-COMP,HEAD LAMP
€ 88.50
23008
230081339
ref: 23008
SOCKET-ASSY,PARKING L
€ 8.00
49016
490161037
ref: 49016
COVER-SEAL,SOCKET
€ 7.50
92002
920021135
ref: 92002
BOLT,6X25
€ 2.50
92002A
920021260
ref: 92002A
BOLT,6X14
€ 0.50
92009
920091065
ref: 92009
SCREW,4MM
€ 3.00
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
920151354
ref: 92015A
NUT,5MM
€ 3.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92027A
92027162
ref: 92027A
COLLAR-REAR FENDER
€ 4.50
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
BULB,12V-60155W
€ 15.00
92075
23066008
ref: 92075
DAMPER,PARKING LAMP
€ 3.00
92075A
92075209
ref: 92075A
DAMPER RUBBER
€ 3.00
92081
23014005
ref: 92081
SPRING-FOCUS ADJUST
€ 2.50
92160
921601007
ref: 92160
DAMPER
€ 3.50
