CHASSIS ELECTRICAL EQUIPMENT

KL500-A3 1989 AUSTRIA

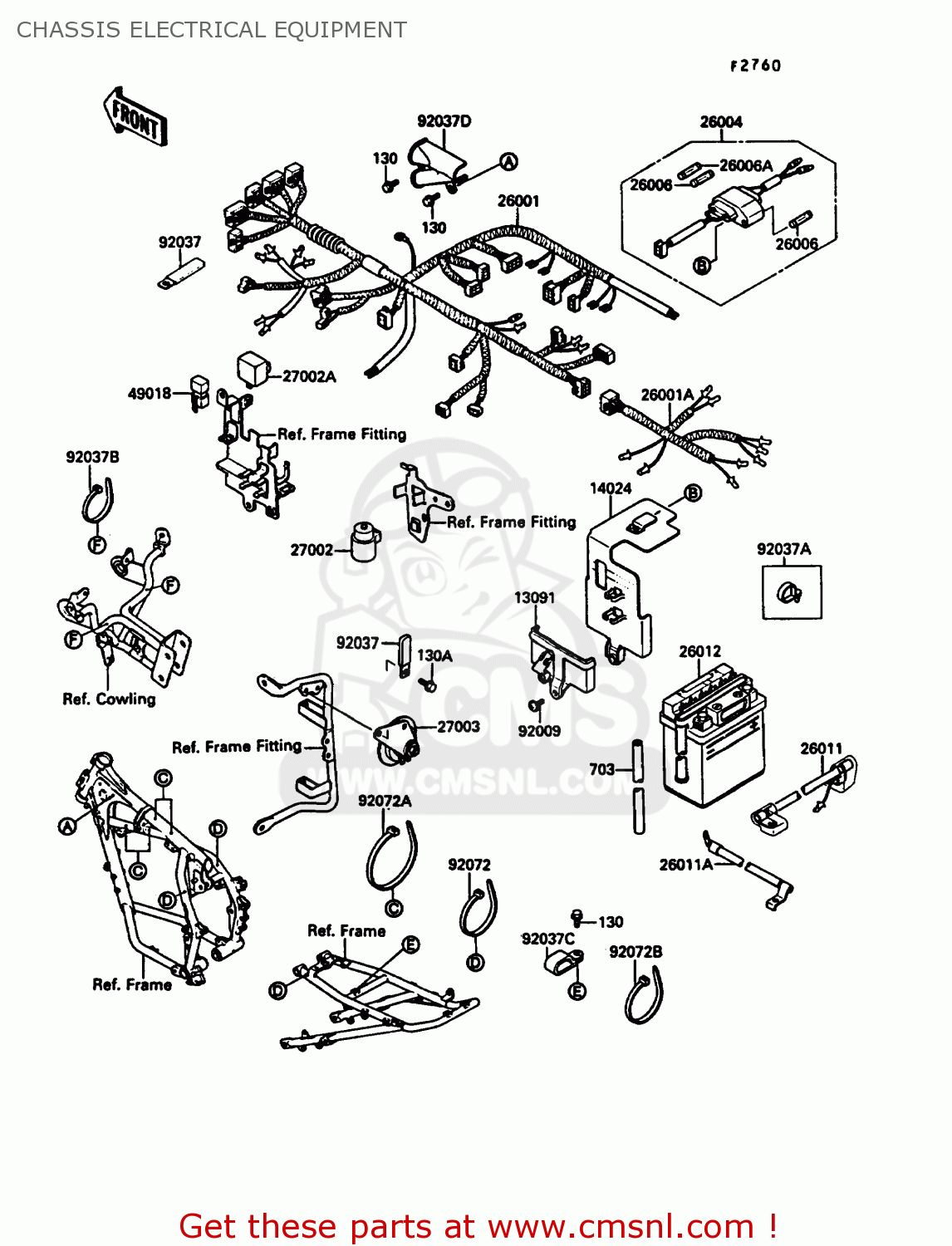

Chassis electrical equipment diagram KL500-A3 1989 AUSTRIA

CHASSIS ELECTRICAL EQUIPMENT KL500-A3 1989 AUSTRIA
CHASSIS ELECTRICAL EQUIPMENT KL500-A3 1989 AUSTRIA
CHASSIS ELECTRICAL EQUIPMENT KL500-A3 1989 AUSTRIA
prices are in EUR
ref
part #
description
quantity
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
130A
130D0614
ref: 130A
BOLT-FLANGED,6X14
130D0614
€ 0.50
703
703A08580
ref: 703
TUBE-RUBBER,8X12X580
€ 13.50
13091
130911484
ref: 13091
HOLDER,BATTERY COVER
130911484
€ 13.00
14024
140241375
ref: 14024
COVER,BATTERY
140241375
€ 24.50
26001
260011821
ref: 26001
HARNESS,MAIN
260011821
€ 156.50
26001A
260011822
ref: 26001A
HARNESS,RR
€ 30.50
26004
260041076
ref: 26004
FUSE-ASSY
260041076
€ 30.50
26006
260061002
ref: 26006
FUSE,10A,L=30M/M
260061002
€ 3.00
26006A
260061056
ref: 26006A
FUSE,20A,L=30
260061056
€ 3.00
26011
260111386
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 19.00
26011A
260111387
ref: 26011A
WIRE-LEAD,BATTERY(-)
260111387
€ 26.00
26012
260121219
ref: 26012
BATTERY,12V 14AH,FB14
€ 61.50
27002
270021051
ref: 27002
RELAY-ASSY
270021051
€ 32.00
27002A
270021053
ref: 27002A
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27003
270031273
ref: 27003
HORN
€ 64.00
49018
490181052
ref: 49018
DIODE
490181052
€ 35.50
92009
920091402
ref: 92009
SCREW,6X10
920091402
€ 1.50
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
920371163
€ 4.50
92037B
920371173
ref: 92037B
CLAMP,SPARK PLUG CAP
920371173
€ 1.00
92037C
920371608
ref: 92037C
CLAMP
920371608
€ 5.50
92037D
920371906
ref: 92037D
CLAMP,HARNESS
920371906
€ 10.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721197
ref: 92072A
BAND
920721197
€ 5.00
92072B
920721237
ref: 92072B
BAND,L=250
920721237
€ 2.00
