HANDLEBAR
KL500-A3 1989 AUSTRIA

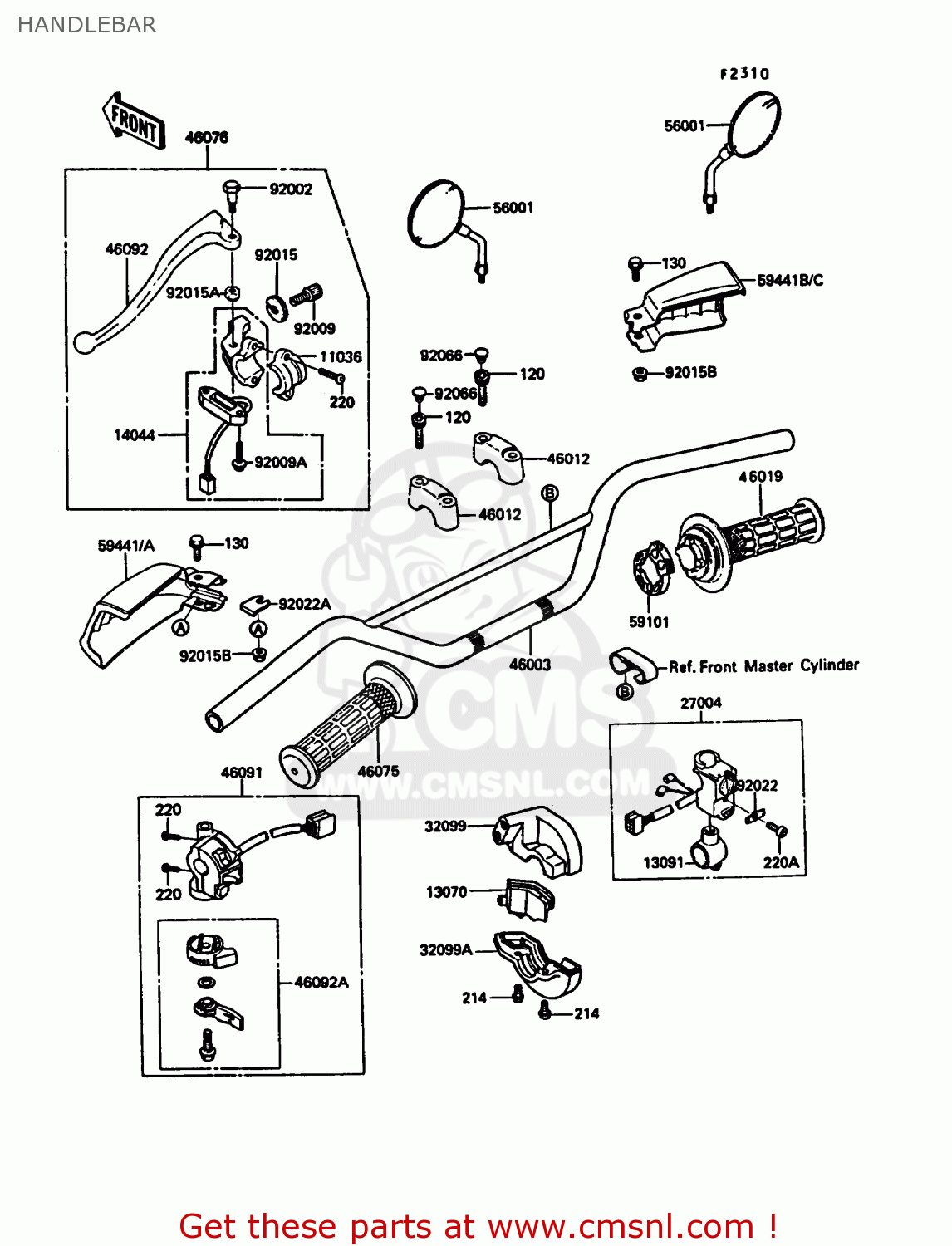

Handlebar diagram KL500-A3 1989 AUSTRIA
HANDLEBAR KL500-A3 1989 AUSTRIA
×
prices are in EUR
ref
part #
description
quantity
120
120S0830
ref: 120
BOLT-SOCKET,8X30,BLAC
€ 3.00
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
€ 1.50
214
214C0518
ref: 214
SCREW-PAN+-
€ 2.00
220
220C0514
ref: 220
SCREW-PAN-CROS
€ 1.00
220A
220C0620
ref: 220A
SCREW-PAN-CROS,6X20,B
€ 1.50
11036
110361297
ref: 11036
BRACKET-A,LEVER HOLDE
€ 12.00
13070
130701131
ref: 13070
GUIDE,THROTTLE PEACE
€ 5.50
13091
130911255
ref: 13091
HOLDER,ENGINE STOP SW
€ 55.00
14044
140441062
ref: 14044
HOLDER-CABLE,CLUTCH
€ 76.50
27004
270041053
ref: 27004
SWITCH-ASSY,ENGINE ST
€ 62.50
32099
320991072
ref: 32099
CASE,THROTTLE,UPP
€ 22.50
32099A
320991073
ref: 32099A
CASE,THROTTLE,LWR
€ 22.50
46003
460031153
ref: 46003
HANDLE
€ 106.50
46012
460121102
ref: 46012
HOLDER-HANDLE,UPP
€ 17.00
46019
460191054
ref: 46019
GRIP-ASSY,THROTTLE
€ 27.50
46075
460751051
ref: 46075
GRIP,LH
€ 14.50
46076
460761142
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 60.00
46091
460911418
ref: 46091
HOUSING-ASSY-CONTROL,
€ 155.00
46092
460921111
ref: 46092
LEVER-GRIP,CLUTCH
€ 13.00
46092A
460921123
ref: 46092A
LEVER-GRIP,CHOKE
€ 10.00
56001
560011204
ref: 56001
MIRROR-ASSY
€ 48.00
59101
591011106
ref: 59101
REEL,THROTTLE
€ 10.00
59441
5944110736B
ref: 59441
COVER-HANDLE,LH,S.RED
€ 18.00
59441A
5944110736K
ref: 59441A
COVER-HANDLE,LH,B.BLU
€ 15.50
59441B
5944110746B
ref: 59441B
COVER-HANDLE,RH,S.RED
€ 17.50
59441C
5944110746K
ref: 59441C
COVER-HANDLE,RH,B.BLU
€ 15.50
92002
920021880
ref: 92002
BOLT,LEVER SET
€ 14.50
92009
46055009
ref: 92009
SCREW,CABLE ASJUST
€ 13.00
92009A
920091390
ref: 92009A
SCREW
€ 2.50
92015
46056006
ref: 92015
NUT,CABLE ADJUST NUT
€ 6.00
92015A
920151191
ref: 92015A
NUT,LOCK,6MM,BLACK
€ 2.00
92015B
920151603
ref: 92015B
NUT
€ 3.00
92022
920221474
ref: 92022
WASHER,ENGINE STOP SW
€ 2.50
92022A
920221896
ref: 92022A
WASHER
€ 2.50
92066
920661216
ref: 92066
PLUG,HANDLE HOLDER
€ 3.00
