TAILLIGHT(S)
KL500-A2 KLR500 1988 AR

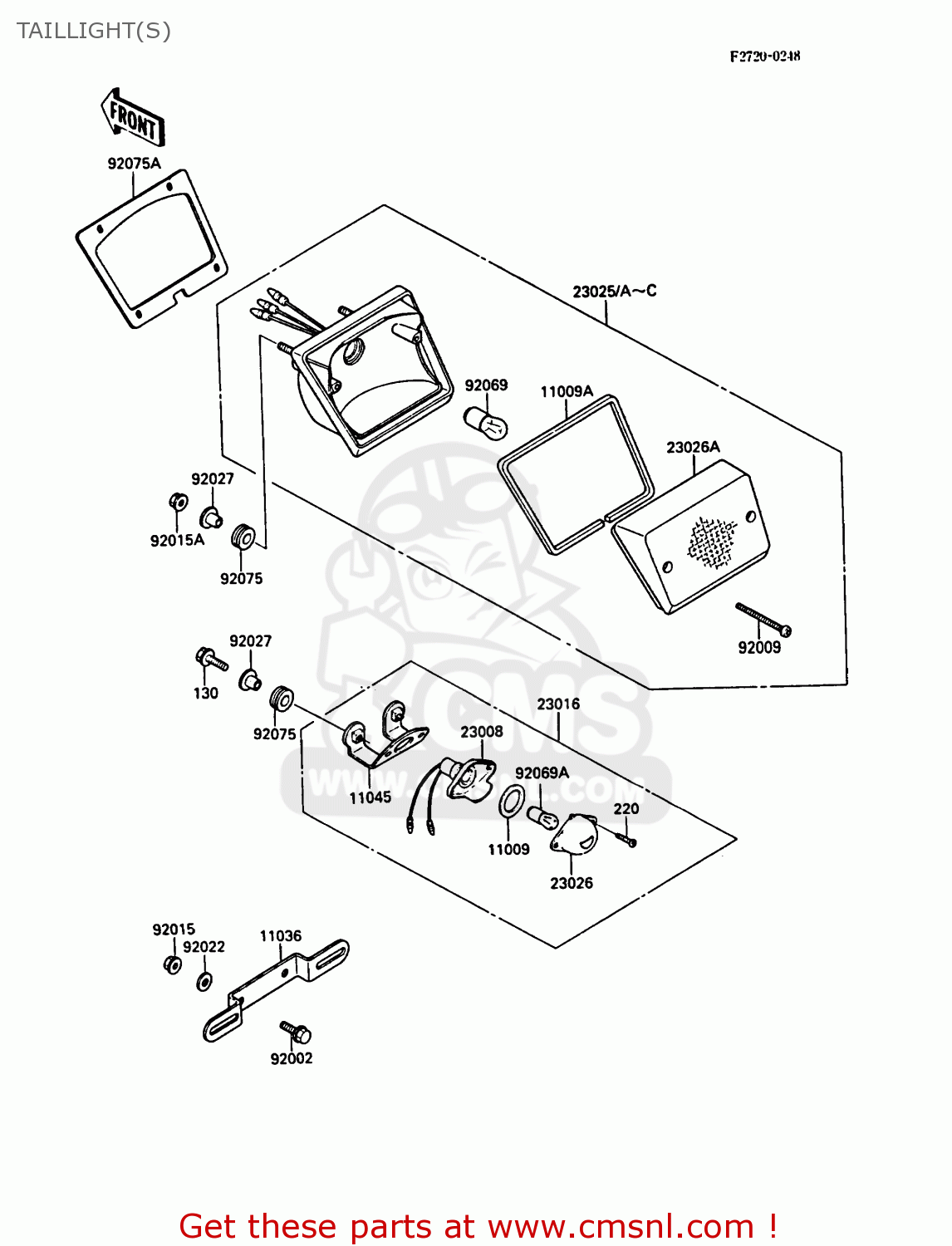

Taillight(s) diagram KL500-A2 KLR500 1988 AR
TAILLIGHT(S) KL500-A2 KLR500 1988 AR
×
prices are in EUR
ref
part #
description
quantity
130
130D0625
ref: 130
BOLT-FLANGED
€ 0.50
220
220B0410
ref: 220
SCREW-PAN-CROS
€ 2.00
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
€ 3.00
11009A
110091636
ref: 11009A
GASKET,TAIL LAMP LENS (NAS)
€ 10.00
11036
110361040
ref: 11036
BRACKET-A,LICENSE PLT
€ 13.00
11045
110451927
ref: 11045
BRACKET,LICENSE PLATE
€ 15.00
23008
230081205
ref: 23008
SOCKET-ASSY,LICENSE P
€ 8.00
23016
230161087
ref: 23016
LAMP-ASSY,LICENSE PLA
€ 52.50
23025A
2302511626C
ref: 23025A
LAMP-TAIL,EBONY
€ 36.50
23025B
2302511626F
ref: 23025B
LAMP-TAIL,P.WHITE
€ 36.50
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
€ 7.00
23026A
230261086
ref: 23026A
LENS,TAIL LAMP
€ 26.50
92002
920021124
ref: 92002
BOLT,6X16
€ 2.50
92009
920091069
ref: 92009
SCREW,TAPPING,4X25
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
€ 4.00
92075
920751690
ref: 92075
DAMPER,10X24X12
€ 3.00
92075A
920751889
ref: 92075A
DAMPER,TAIL LAMP
€ 8.00
