FRONT FORK
KL500-A2 KLR500 1988 AR

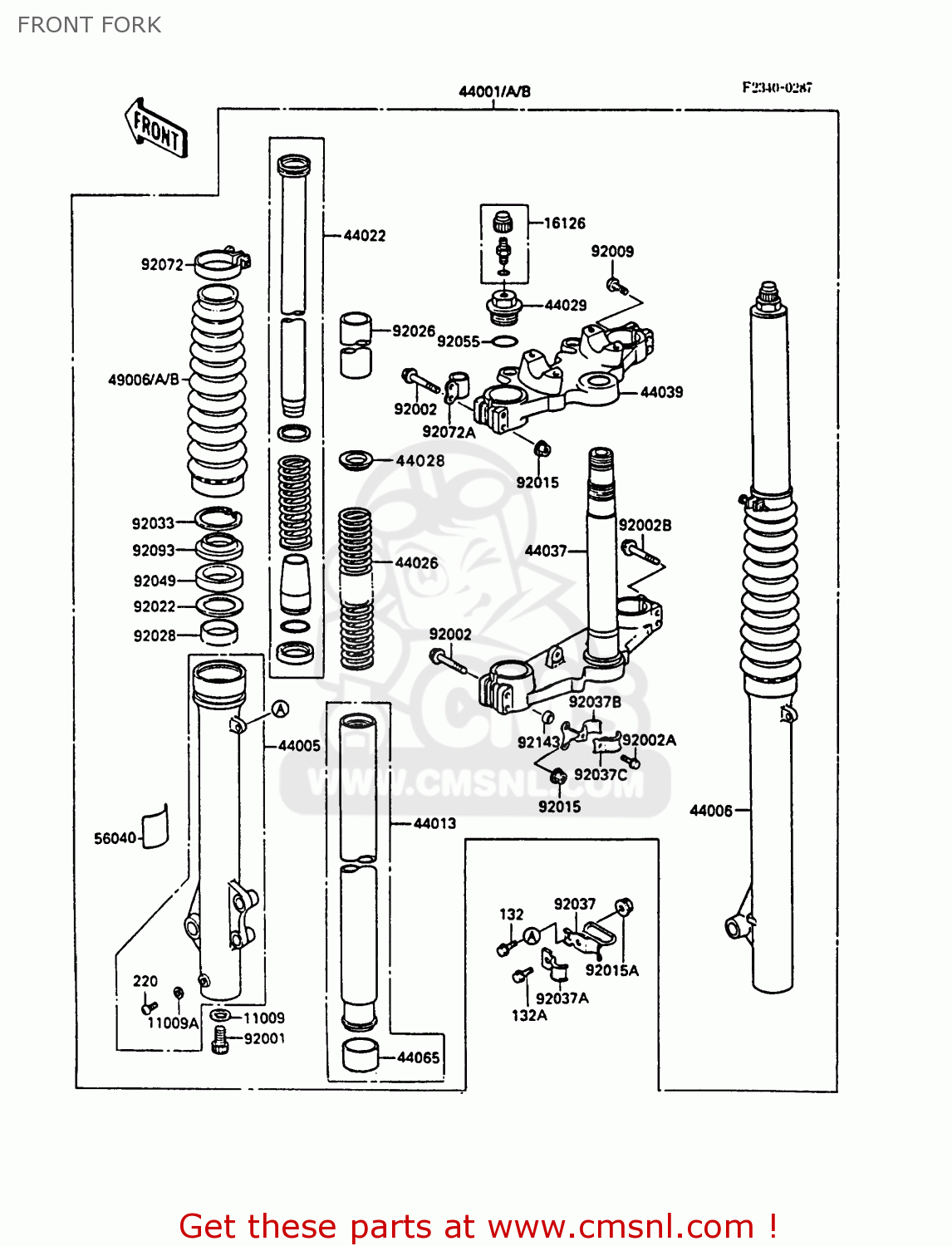

Front fork diagram KL500-A2 KLR500 1988 AR
FRONT FORK KL500-A2 KLR500 1988 AR
×
prices are in EUR
ref
part #
description
quantity
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
44001A
440011648BC
ref: 44001A
FORK-FRONT,BLUE
€ 1,709.50
44001B
440011648BL
ref: 44001B
FORK-FRONT,RED
€ 1,945.50
44005
440051262
ref: 44005
PIPE-LEFT FORK OUTER
€ 171.50
44006
440061259
ref: 44006
PIPE-RIGHT FORK OUTER
€ 304.50
44013
440131264
ref: 44013
PIPE-FORK INNER
€ 208.50
44022
440221211
ref: 44022
CYLINDER-FORK
€ 149.00
44026
440261369
ref: 44026
SPRING-FRONT FORK
€ 52.50
44028
440281003
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029
440291042
ref: 44029
SEAT-FORK SPRING
€ 51.50
44037
440371207
ref: 44037
HOLDER-FORK UNDER
€ 449.00
44039
440391160
ref: 44039
HOLDER-FORK UPPER
€ 248.00
44065
440651057
ref: 44065
BUSHING,FRON.PIPE
€ 31.50
49006A
490061222BC
ref: 49006A
BOOT,FORK,BLUE
€ 56.50
49006B
490061222BL
ref: 49006B
BOOT,FORK,RED
€ 45.00
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92001
920011309
ref: 92001
BOLT,FORK CYLINDER
€ 4.50
92002
920021158
ref: 92002
BOLT,FLANGED,8X55
€ 6.00
92002A
920021982
ref: 92002A
BOLT
€ 3.00
92002B
920021983
ref: 92002B
BOLT
€ 10.50
92009
920091348
ref: 92009
SCREW
€ 3.50
92015
920151408
ref: 92015
NUT,FLANGED,8MM
€ 1.00
92022
920221242
ref: 92022
WASHER
€ 5.50
92026
920261294
ref: 92026
SPACER
€ 30.00
92028
920281125
ref: 92028
BUSHING
€ 17.00
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92037
920371897
ref: 92037
CLAMP,HOSE
€ 8.50
92037A
920371898
ref: 92037A
CLAMP,HOSE
€ 5.50
92037B
920371913
ref: 92037B
CLAMP
€ 14.00
92037C
920371931
ref: 92037C
CLAMP
€ 7.00
92049
920491180
ref: 92049
SEAL-OIL,FRONT FORK
€ 14.50
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
€ 4.00
132A
132W0612
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
92072
920721171
ref: 92072
BAND,BOOT
€ 6.50
92072A
920721225
ref: 92072A
BAND,CABLE
€ 13.00
92093
920931166
ref: 92093
SEAL,FRONT FORK
€ 12.50
92143
921431134
ref: 92143
COLLAR
€ 8.00
