OPTIONAL PARTS
KL500-A2 KLR500 1988 AR

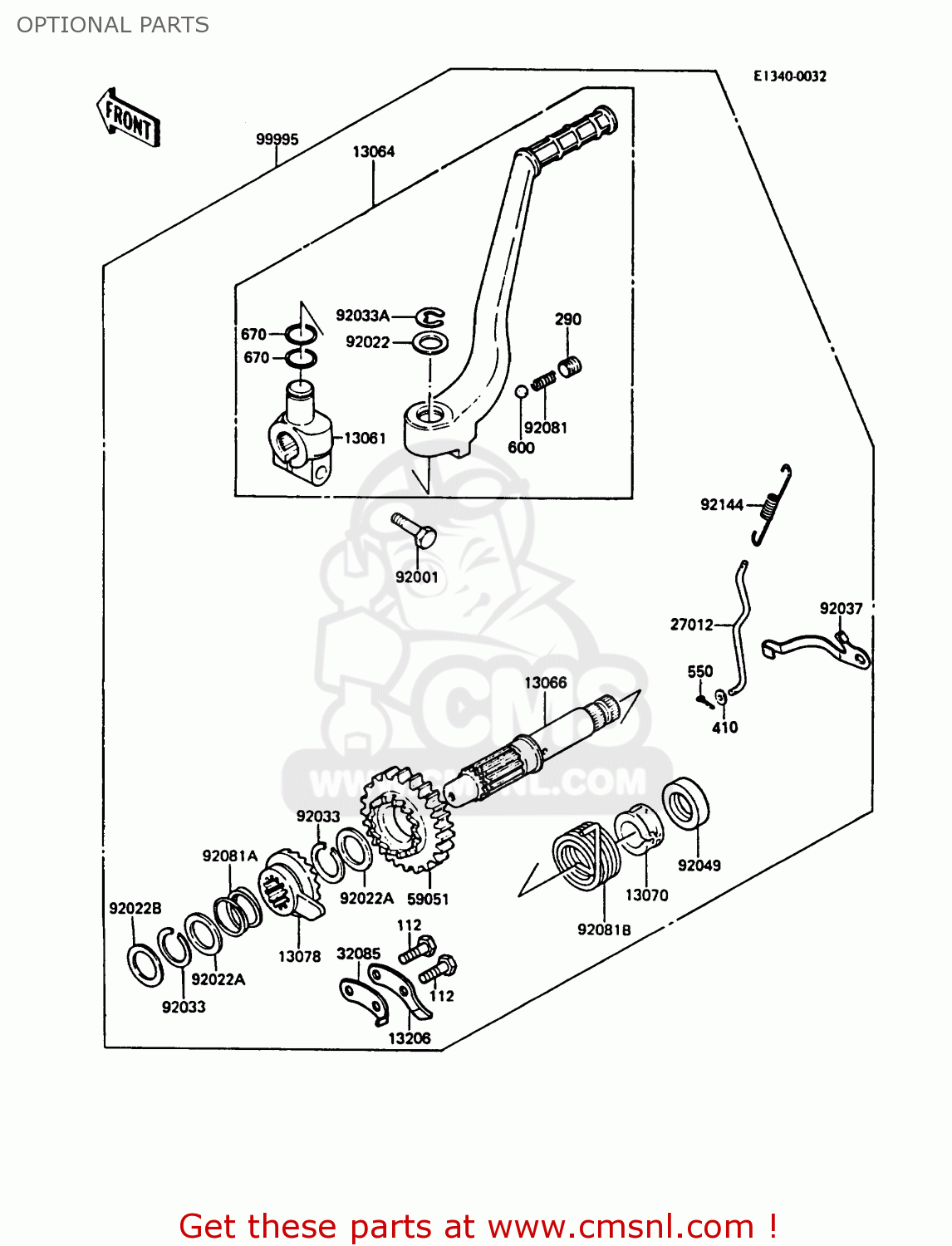

Optional parts diagram KL500-A2 KLR500 1988 AR
OPTIONAL PARTS KL500-A2 KLR500 1988 AR
×
prices are in EUR
ref
part #
description
quantity
112
112G0618
ref: 112
BOLT-UPSET
€ 0.50
290
290Q0808
ref: 290
SCREW,8X8
€ 2.50
410
410B0400
ref: 410
WASHER-PLAIN-SMALL,4M
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
670
670B2015
ref: 670
O RING,15MM
€ 1.00
13061
130611106
ref: 13061
BOSS,KICK PEDAL
€ 47.50
13064
130641133
ref: 13064
LEVER-ASSY-KICK,PEDAL
€ 157.50
13066
130661058
ref: 13066
SHAFT-KICK
€ 88.00
13070
130701106
ref: 13070
GUIDE,KICK SPRING
€ 11.50
13078
130781051
ref: 13078
RATCHET
€ 45.00
13206
132061051
ref: 13206
GUIDE-KICK
€ 4.50
27012
270121383
ref: 27012
HOOK
€ 13.50
32085
13072014
ref: 32085
STOPPER,KICKSTARTER
€ 6.50
59051
590511142
ref: 59051
GEAR-SPUR,KICK
€ 90.50
92001
920011042
ref: 92001
BOLT,HEX HEAD,8X28
€ 4.00
92022
920221019
ref: 92022
WASHER,15.2X20X1
€ 3.50
92022A
92022159
ref: 92022A
WASHER-THRUST,25MM
€ 5.50
92022B
92022252
ref: 92022B
WASHER
€ 4.00
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
920331166
ref: 92033A
RING-SNAP,10MM
€ 2.50
92037
920371938
ref: 92037
CLAMP
€ 9.00
92049
920491048
ref: 92049
OIL SEAL,SC22325
€ 6.00
92081
92081020
ref: 92081
SPRING-KICK PEDAL
€ 2.50
92081A
92081097
ref: 92081A
SPRING
€ 7.50
92081B
92082003
ref: 92081B
SPRING-KICKSTARTER
€ 19.00
92144
921441143
ref: 92144
SPRING,REAR BRAKE SWI
€ 5.50
99995
999951007
ref: 99995
KIT.,KICKSTARTER
€ 222.50
