BRAKE PEDAL

KL500-A2 KLR500 1988 AR

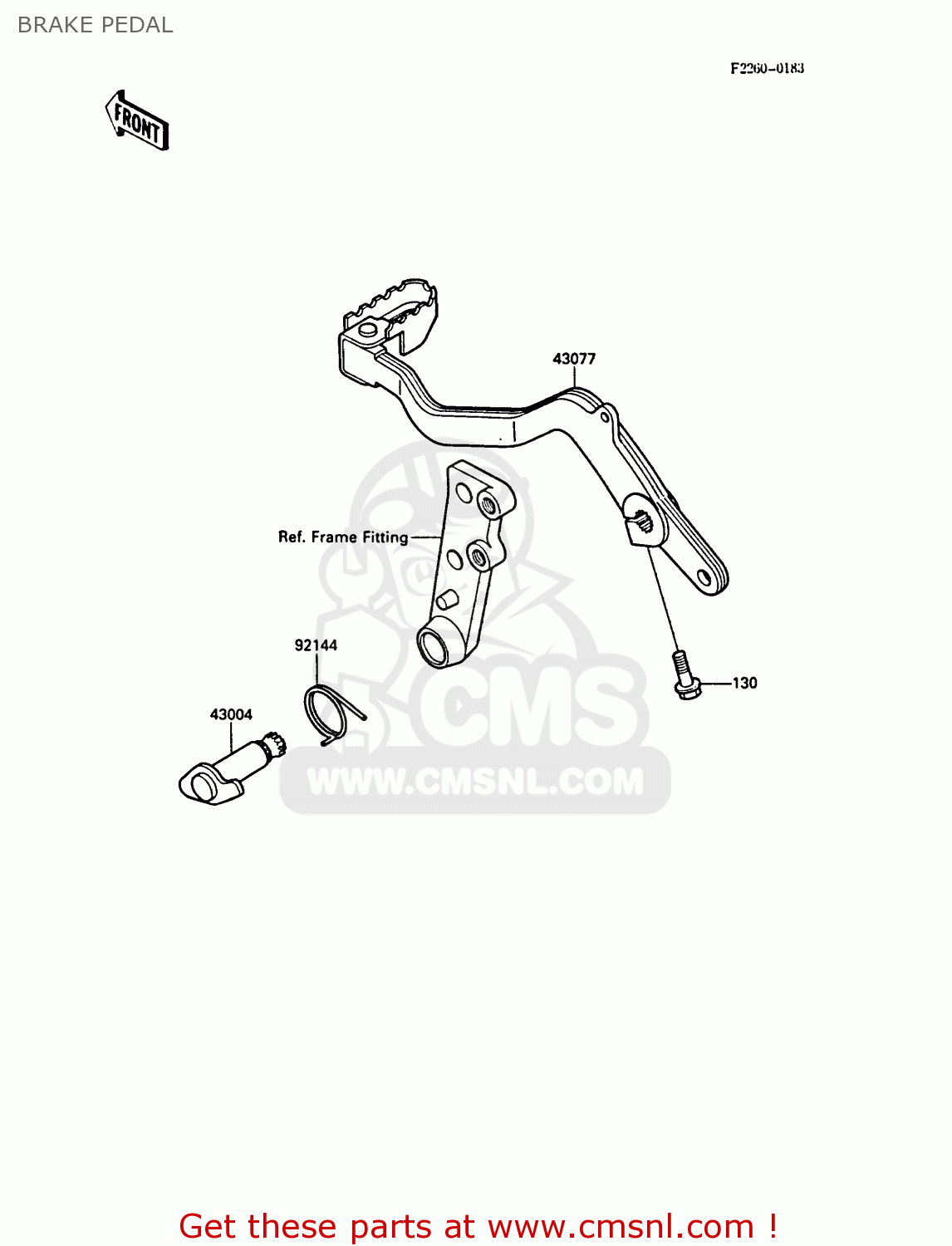

Brake pedal diagram KL500-A2 KLR500 1988 AR

BRAKE PEDAL KL500-A2 KLR500 1988 AR
BRAKE PEDAL KL500-A2 KLR500 1988 AR
BRAKE PEDAL KL500-A2 KLR500 1988 AR
prices are in EUR
ref
part #
description
quantity
130
130G0622
ref: 130
BOLT-FLANGED,6X22
€ 1.50
43004
430041120
ref: 43004
SHAFT-BRAKE
430041120
€ 27.00
43077
430771065
ref: 43077
LEVER-ASSY-BRAKE,PEDA
430771065
€ 103.50
92144
921441082
ref: 92144
SPRING,BRAKE PEDAL RE
921441082
€ 5.00
