METER(S)
KL500-A2 KLR500 1988 AR

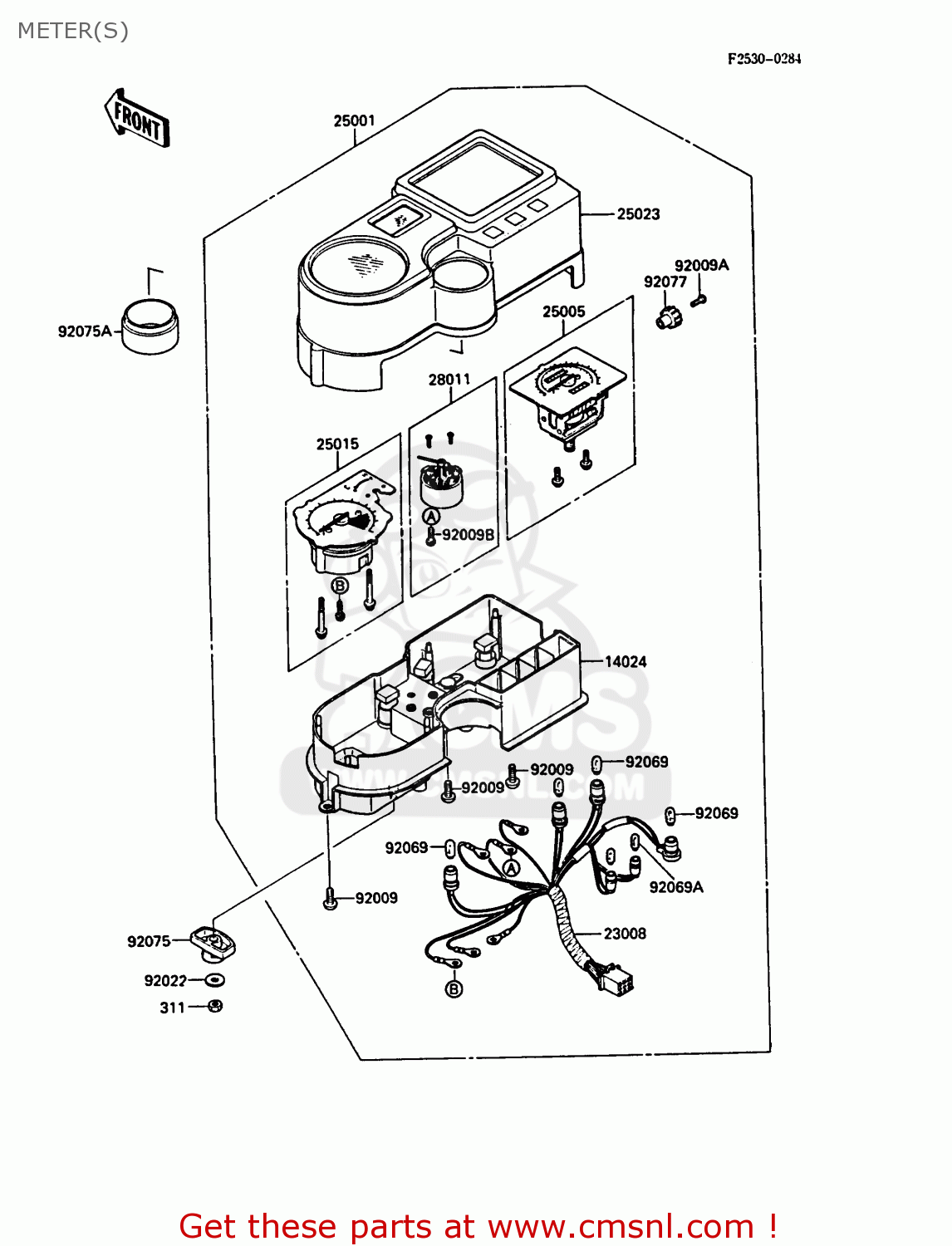

Meter(s) diagram KL500-A2 KLR500 1988 AR
METER(S) KL500-A2 KLR500 1988 AR
×
prices are in EUR
ref
part #
description
quantity
311
311C0500
ref: 311
NUT-HEX
€ 0.50
14024
140241407
ref: 14024
COVER,METER CASE,LWR
€ 73.50
23008
230081332
ref: 23008
SOCKET-ASSY,METER
€ 94.50
25001
250011673
ref: 25001
METER-ASSY,KPH
€ 600.00
25005
250051345
ref: 25005
SPEEDOMETER,KPH
€ 139.50
25015
250151263
ref: 25015
TACHOMETER,X1000R/MIN
€ 277.50
25023
250231152
ref: 25023
COVER-METER CASE,UPP
€ 77.00
28011
280111091
ref: 28011
METER,TEMP
€ 108.00
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
€ 2.50
92009A
920091172
ref: 92009A
SCREW,2X6,BLACK
€ 2.00
92009B
920091293
ref: 92009B
SCREW,3X22
€ 2.50
92022
25009004
ref: 92022
WASHER,5.2X16X1.2T
€ 2.50
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691068
ref: 92069A
BULB,14V 3W
€ 2.50
92075
920751581
ref: 92075
DAMPER,METER BRACKET
€ 4.00
92075A
920751890
ref: 92075A
DAMPER
€ 6.00
92077
920771054
ref: 92077
KNOB,METER
€ 6.00
