SWINGARM
KL250G7 SUPER SHERPA 2003 USA CANADA

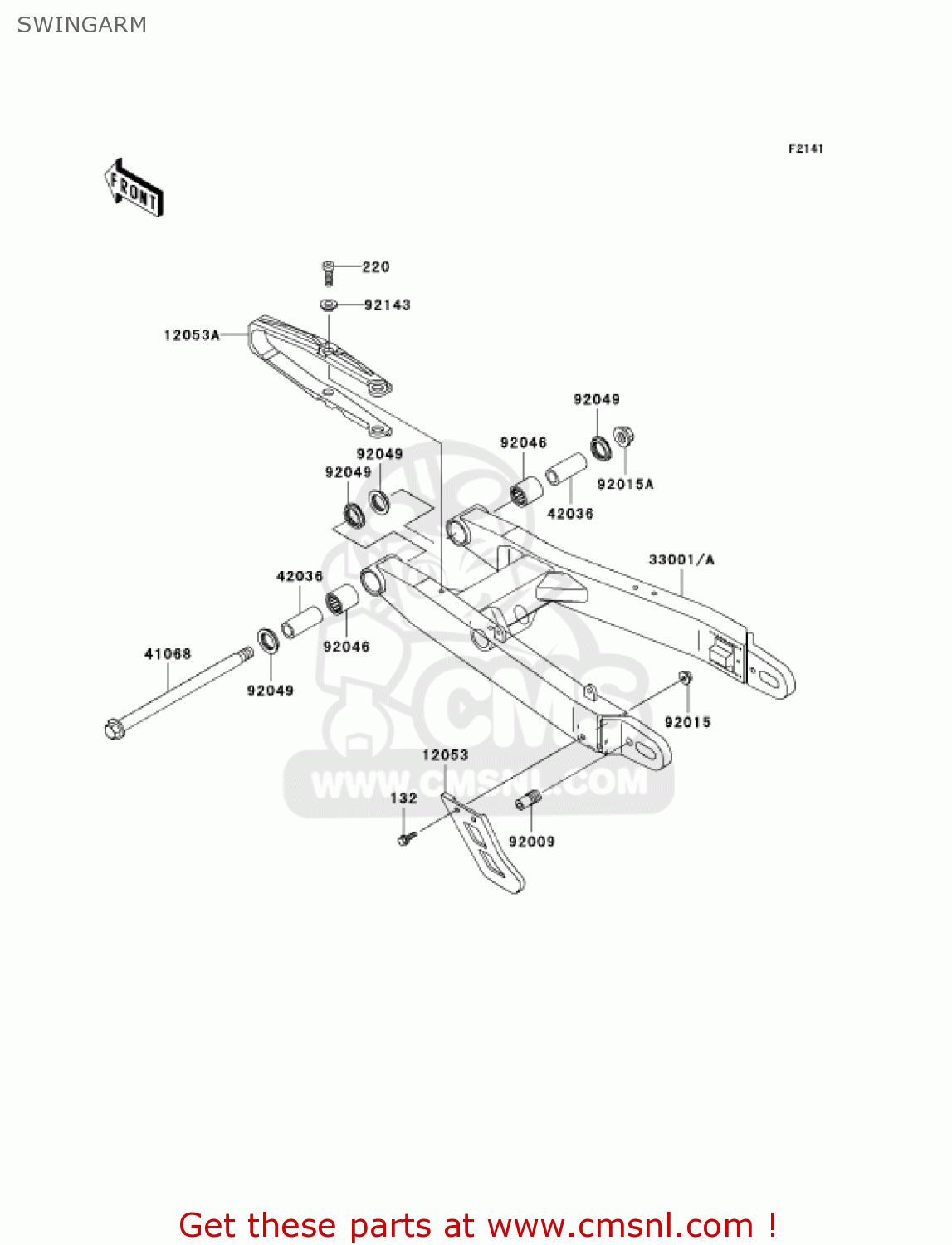

Swingarm diagram KL250G7 SUPER SHERPA 2003 USA CANADA
SWINGARM KL250G7 SUPER SHERPA 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132V0616
ref: 132
BOLT-FLANGED-SMALL,6X
€ 1.00
220
220B0608
ref: 220
SCREW-PAN HEAD,6X8
€ 0.50
12053
120531389
ref: 12053
GUIDE-CHAIN,RR
€ 44.00
12053A
120531392
ref: 12053A
GUIDE-CHAIN,FR
€ 24.50
33001
330011526CE
ref: 33001
ARM-COMP-SWING,SILVER
€ 477.50
41068
410681078
ref: 41068
AXLE, FR. 15X242
€ 24.00
42036
420361335
ref: 42036
SLEEVE,15.1X22X52
€ 17.50
92009
920091789
ref: 92009
SCREW,SET,SOCKET,10X2
€ 4.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151407
ref: 92015A
NUT,14MM
€ 6.50
92046
920461174
ref: 92046
BEARING-NEEDLE,TA2230
€ 37.50
92049
920491289
ref: 92049
SEAL-OIL
€ 6.00
92143
921431156
ref: 92143
COLLAR
€ 4.00
