REAR SUSPENSION
KL250G7 SUPER SHERPA 2003 USA CANADA

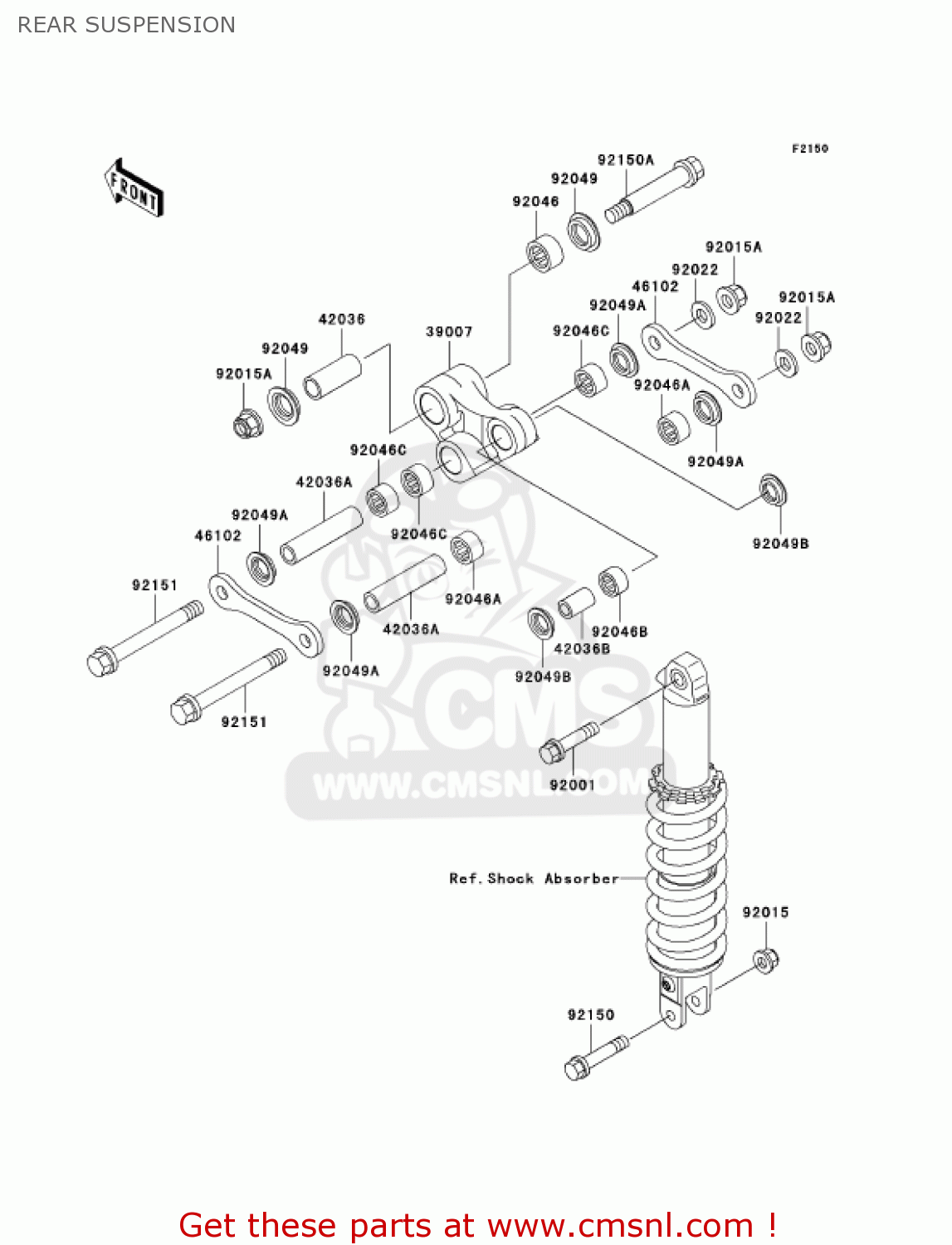

Rear suspension diagram KL250G7 SUPER SHERPA 2003 USA CANADA
REAR SUSPENSION KL250G7 SUPER SHERPA 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
39007
390071265
ref: 39007
ARM-SUSP,UNI TRAK
€ 254.00
42036
420361204
ref: 42036
SLEEVE,15X20X47.5
€ 12.50
42036A
420361336
ref: 42036A
SLEEVE,12.1X18X77.5
€ 17.50
42036B
420361337
ref: 42036B
SLEEVE,10.1X16X26.5
€ 10.00
46102
461021428
ref: 46102
SUSPENSION ROD
€ 23.00
92001
920011499
ref: 92001
BOLT,10X44
€ 3.50
92015
920151335
ref: 92015
NUT,FLANGED,10MM
€ 1.50
92015A
920151433
ref: 92015A
NUT,12MM
€ 6.00
92022
920221196
ref: 92022
WASHER,12.4X28X4.5
€ 3.00
92046
920461110
ref: 92046
BEARING-NEEDLE,BM2027
€ 22.50
92046A
920461144
ref: 92046A
BEARING-NEEDLE,18BM24
€ 27.50
92046B
920461192
ref: 92046B
BEARING-NEEDLE,16BM22
€ 19.50
92046C
920461238
ref: 92046C
BEARING-NEEDLE,7E-HVS
€ 19.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
€ 6.50
92049A
920491328
ref: 92049A
SEAL-OIL
€ 21.00
92049B
920491466
ref: 92049B
SEAL-OIL,SD03 16 22 5
€ 8.50
92150
921501125
ref: 92150
BOLT
€ 4.50
92150A
921501213
ref: 92150A
BOLT,ROD,12X85
€ 16.50
92151
921511169
ref: 92151
BOLT,FLANGED,12X105
€ 6.50
