OIL PUMP
KL250G7 SUPER SHERPA 2003 USA CANADA

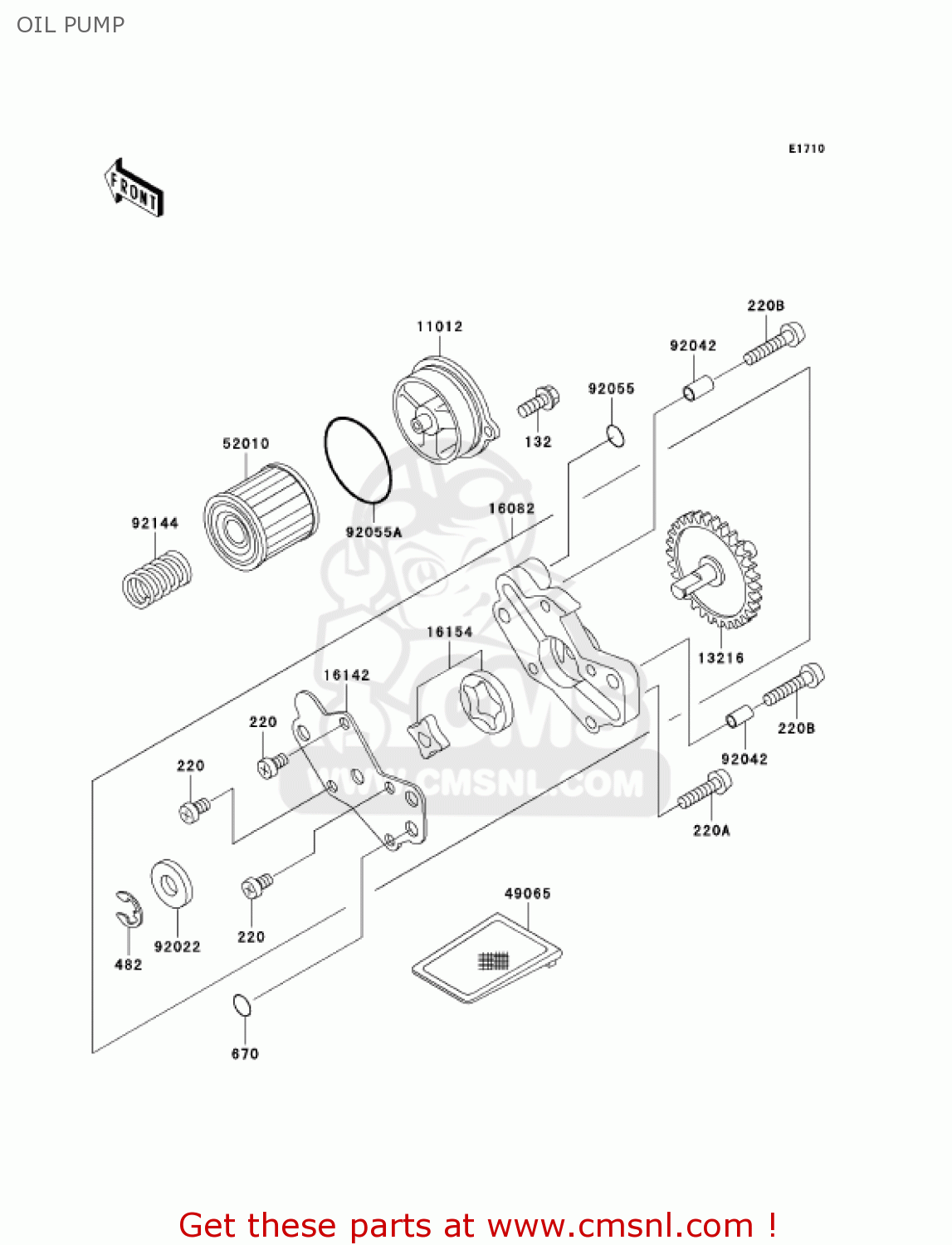

Oil pump diagram KL250G7 SUPER SHERPA 2003 USA CANADA
OIL PUMP KL250G7 SUPER SHERPA 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132Y0616
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
220
220B0610
ref: 220
SCREW-PAN HEAD,6X10
€ 2.00
220A
220B0625
ref: 220A
SCREW-PAN HEAD,6X25
€ 1.50
220B
220B0630
ref: 220B
SCREW-PAN HEAD,6X30
€ 2.50
482
482J6000
ref: 482
CIRCLIP-TYPE-E,6MM
€ 0.50
670
670B2010
ref: 670
O RING,10MM
€ 1.00
11012
110121995
ref: 11012
CAP,OIL FILTER
€ 35.50
13216
132161162
ref: 13216
GEAR-COMP
€ 90.50
16082
160821151
ref: 16082
PUMP-ASSY-OIL
€ 156.00
16142
161421123
ref: 16142
COVER-PUMP
€ 30.50
16154
161541077
ref: 16154
ROTOR-PUMP
€ 26.50
49065
490651058
ref: 49065
FILTER-OIL
€ 9.00
52010
520101053
ref: 52010
ELEMENT-OIL FILTER
€ 8.00
92022
920221181
ref: 92022
WASHER,10.2X14.5X1.0
€ 2.50
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92055
92055074
ref: 92055
O RING
€ 5.50
92055A
920551577
ref: 92055A
RING-O
€ 3.00
92144
921441761
ref: 92144
SPRING
€ 3.00
