ENGINE COVER(S)
KL250G7 SUPER SHERPA 2003 USA CANADA

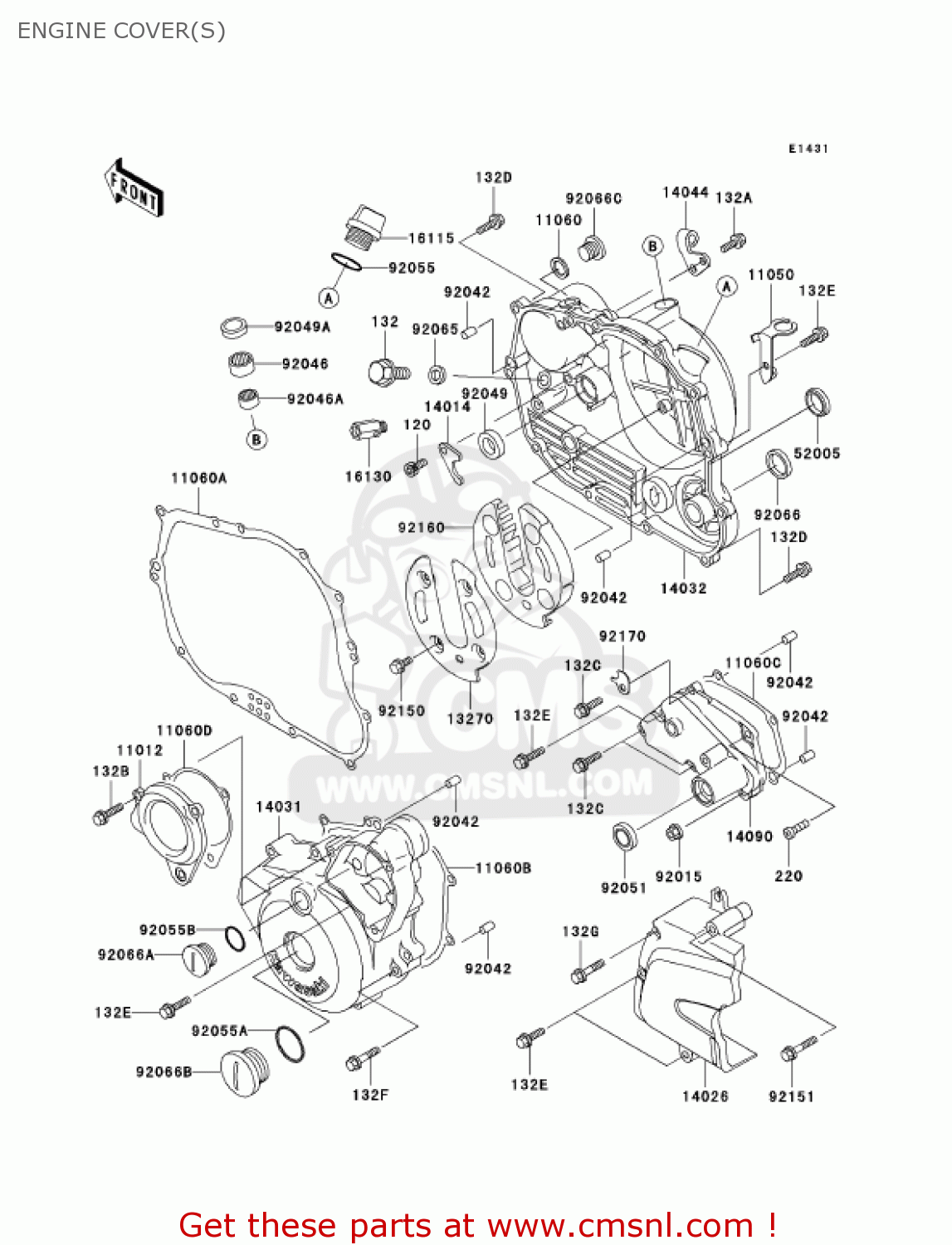

Engine cover(s) diagram KL250G7 SUPER SHERPA 2003 USA CANADA
ENGINE COVER(S) KL250G7 SUPER SHERPA 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120P0610
ref: 120
BOLT-SOCKET,6X10
€ 1.00
132
132L0812
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132Y0616
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132Y0618
ref: 132B
BOLT-FLANGED-SMALL
€ 2.00
11012
110121994
ref: 11012
CAP
€ 49.00
11050
110501139
ref: 11050
BRACKET
€ 7.00
11060
110601287
ref: 11060
GASKET,ROCKER SHAFT (NAS)
€ 2.50
11060A
110601324
ref: 11060A
GASKET,CLUTCH COVER I (NAS)
€ 28.50
11060B
110601326
ref: 11060B
GASKET,GENERATOR COVE (NAS)
€ 13.50
11060C
110601327
ref: 11060C
GASKET,TRANSMISSION C (NAS)
€ 9.00
11060D
110601641
ref: 11060D
GASKET,CAP (NAS)
€ 6.50
13270
132701781
ref: 13270
PLATE
€ 9.00
14014
140141062
ref: 14014
PLATE-POSITION
€ 5.50
14026
140261248
ref: 14026
COVER-CHAIN
€ 43.50
14031
140311341
ref: 14031
COVER-GENERATOR
€ 153.00
14032
140321458
ref: 14032
COVER-CLUTCH
€ 256.50
14044
140441093
ref: 14044
HOLDER-CABLE
€ 7.50
14090
140901793
ref: 14090
COVER,TRANSMISSION
€ 98.00
16115
161151053
ref: 16115
CAP-OIL FILLER
€ 12.50
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
€ 28.50
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
€ 17.00
92046A
920461230
ref: 92046A
BEARING-NEEDLE
€ 15.50
92049
920491191
ref: 92049
SEAL-OIL
€ 16.00
92049A
920491262
ref: 92049A
SEAL-OIL
€ 4.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92055
92055012
ref: 92055
'O' RING 18MM
€ 1.00
92055A
92055091
ref: 92055A
0 RING
€ 4.00
92055B
920551146
ref: 92055B
RING-O
€ 5.50
92065
92065023
ref: 92065
GASKET-CHECK VALVE (NAS)
€ 3.00
92066
920661411
ref: 92066
PLUG,RCA297
€ 10.00
92066A
920661456
ref: 92066A
PLUG,TOP MAKE
€ 10.00
92066B
920661457
ref: 92066B
PLUG,CRANK
€ 7.50
92066C
920661481
ref: 92066C
PLUG
€ 5.00
92150
921501406
ref: 92150
BOLT
€ 2.00
92151
921511287
ref: 92151
BOLT,6X55
€ 2.50
92160
921601823
ref: 92160
DAMPER
€ 14.50
92170
921701785
ref: 92170
CLAMP
€ 2.00
132C
132Y0620
ref: 132C
BOLT-FLANGED-SMALL
€ 2.50
132D
132Y0625
ref: 132D
BOLT-FLANGED-SMALL
€ 3.50
132E
132Y0630
ref: 132E
BOLT-FLANGED-SMALL
€ 2.50
132F
132Y0640
ref: 132F
BOLT-FLANGED-SMALL
€ 3.50
132G
132Y0645
ref: 132G
BOLT-FLANGED-SMALL,6X
€ 2.50
220
220X0616
ref: 220
SCREW-PAN-CROS
€ 2.00
