HANDLEBAR
KL250G7 SUPER SHERPA 2003 USA CANADA

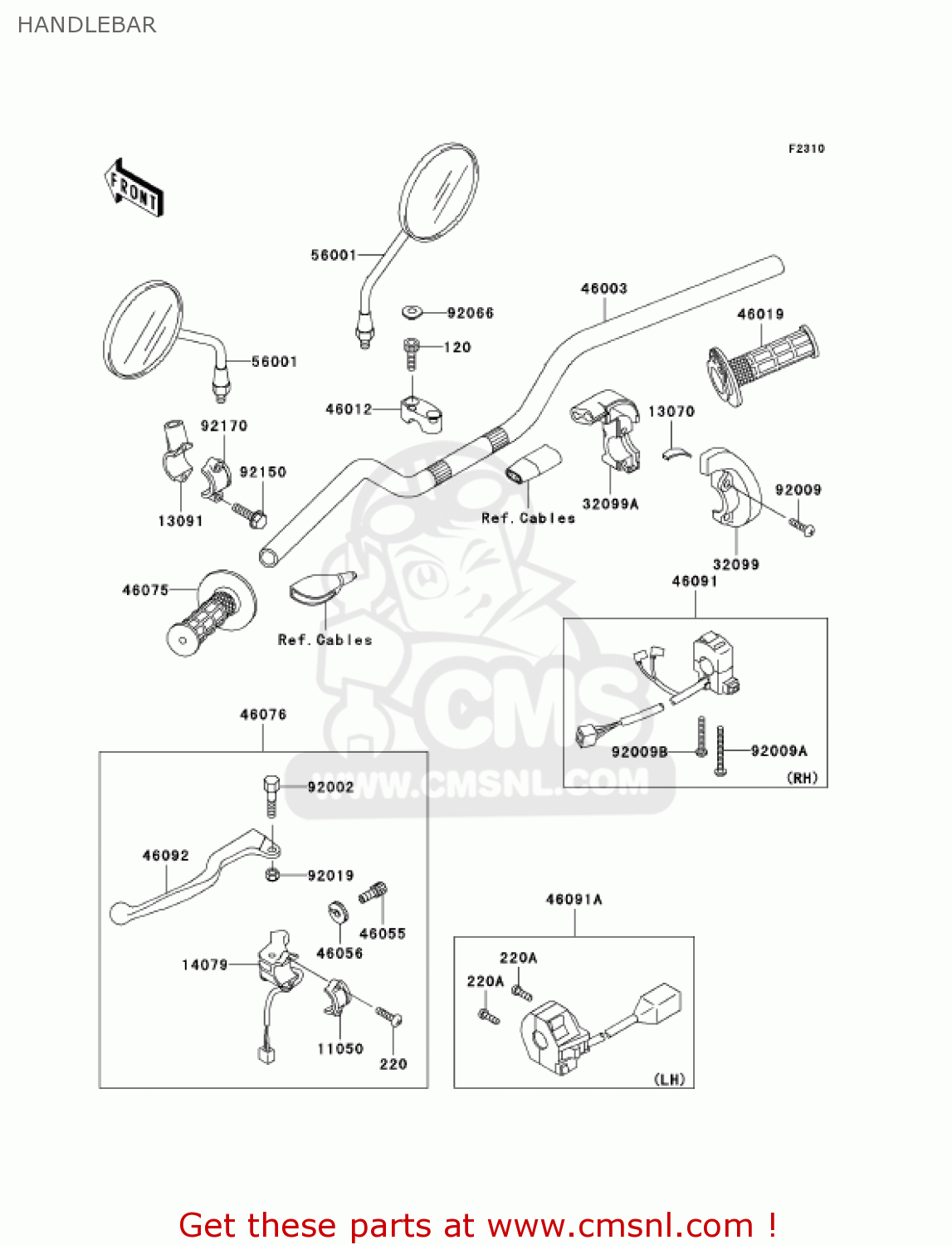

Handlebar diagram KL250G7 SUPER SHERPA 2003 USA CANADA
HANDLEBAR KL250G7 SUPER SHERPA 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120S0830
ref: 120
BOLT-SOCKET,8X30,BLAC
€ 3.00
220
220B0514
ref: 220
ACREW-PAN HEAD,5X14
€ 2.50
220A
220C0530
ref: 220A
SCREW-PAN-CROS
€ 0.50
11050
110501310
ref: 11050
BRACKET,LEVER HOLDER
€ 45.50
13070
130701274
ref: 13070
GUIDE,THROTTLE CABLE
€ 3.00
13091
130911995
ref: 13091
HOLDER,MIRROR
€ 32.50
14079
140791122
ref: 14079
HOLDER-ASSY,CLUTCH CA
€ 40.00
32099
320991146
ref: 32099
CASE,THROTTLE,UPP
€ 20.50
32099A
320991186
ref: 32099A
CASE,THROTTLE,LWR
€ 22.50
46003
460031465
ref: 46003
HANDLE
€ 74.00
46012
460121276
ref: 46012
HOLDER-HANDLE,UPP
€ 17.00
46019
460191093
ref: 46019
GRIP-ASSY,THROTTLE
€ 27.50
46055
46055009
ref: 46055
SCREW,CABLE ASJUST
€ 13.00
46056
46056006
ref: 46056
NUT,CABLE ADJUST NUT
€ 6.00
46075
460751149
ref: 46075
GRIP,LH
€ 13.50
46076
460761211
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 49.50
46091
460911678
ref: 46091
HOUSING-ASSY-CONTROL,
€ 94.00
46091A
460911690
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 121.00
46092
460921159
ref: 46092
LEVER-GRIP,CLUTCH
€ 13.00
56001
560011339
ref: 56001
MIRROR-ASSY
€ 29.00
92002
920021150
ref: 92002
BOLT,LEVER SET
€ 4.50
92009
920091699
ref: 92009
SCREW,5X16
€ 2.00
92009A
920091803
ref: 92009A
SCREW
€ 2.50
92009B
920091804
ref: 92009B
SCREW
€ 2.50
92019
92019008
ref: 92019
NUT-LOCK,6MM
€ 3.00
92066
920661277
ref: 92066
PLUG
€ 4.00
92150
921501474
ref: 92150
BOLT,LEVER HOLDER
€ 3.00
92170
921701226
ref: 92170
CLAMP
€ 18.50
