TRANSMISSION
KL250G5 SUPER SHERPA 2001 USA CANADA

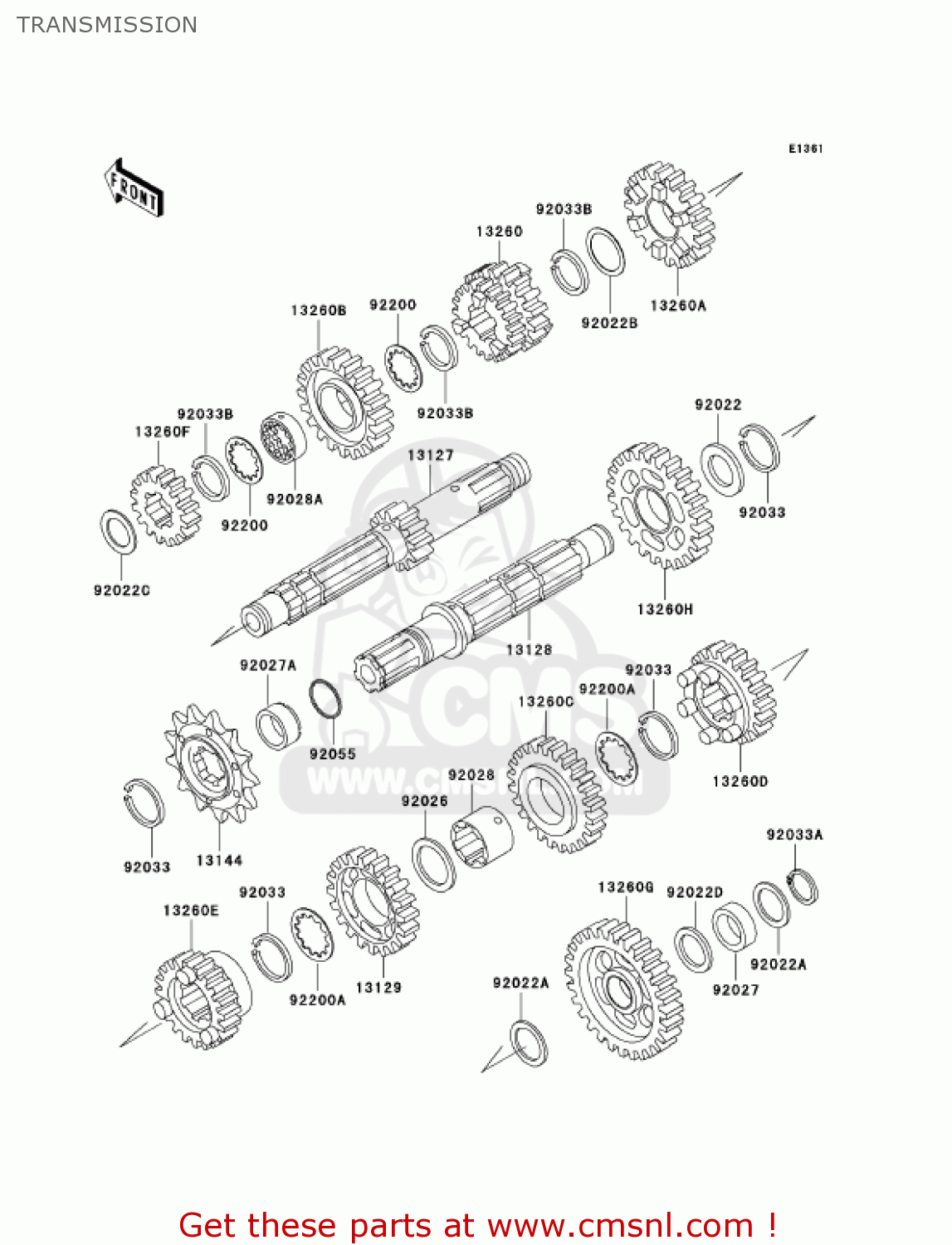

Transmission diagram KL250G5 SUPER SHERPA 2001 USA CANADA
TRANSMISSION KL250G5 SUPER SHERPA 2001 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13127
131271258
ref: 13127
SHAFT-TRANSMISSION IN
€ 177.50
13128
131281224
ref: 13128
SHAFT-TRANSMISSION OU
€ 163.00
13129
131291650
ref: 13129
GEAR,OUTPUT 3RD,27T
€ 106.50
13144
131441237
ref: 13144
SPROCKET-OUTPUT,14T
€ 28.50
13260
132601656
ref: 13260
GEAR,INPUT 3RD&4TH,18
€ 123.00
13260A
132601657
ref: 13260A
GEAR,INPUT 5TH,26T
€ 110.00
13260B
132601658
ref: 13260B
GEAR,INPUT TOP,27T
€ 109.00
13260C
132601660
ref: 13260C
GEAR,OUTPUT 4TH,31T
€ 106.00
13260D
132601661
ref: 13260D
GEAR,OUTPUT 5TH,25T
€ 106.00
13260E
132601662
ref: 13260E
GEAR,OUTPUT TOP,23T
€ 106.00
13260F
132601672
ref: 13260F
GEAR,INPUT 2ND,16T
€ 106.00
13260G
132601673
ref: 13260G
GEAR,OUTPUT LOW,34T
€ 106.00
13260H
132601674
ref: 13260H
GEAR,OUTPUT 2ND,34T
€ 106.00
92022
92022159
ref: 92022
WASHER-THRUST,25MM
€ 5.50
92022A
920221614
ref: 92022A
WASHER,17.3X25X0.5
€ 2.50
92022B
92022198
ref: 92022B
WASHER-PLAIN
€ 3.50
92022C
92022255
ref: 92022C
WASHER
€ 5.50
92022D
92022270
ref: 92022D
WASHER,PLAIN
€ 7.00
92026
92026079
ref: 92026
WASHER,30X38X1
€ 6.00
92027
920271315
ref: 92027
COLLAR,17X22X8.5
€ 9.50
92027A
920271800
ref: 92027A
COLLAR
€ 19.50
92028
920281822
ref: 92028
BUSHING,OUTPUT 3RD&4T
€ 20.50
92028A
920281823
ref: 92028A
BUSHING,INPUT TOP GEA
€ 17.00
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
92033032
ref: 92033A
CIRCLIP
€ 3.00
92033B
920331293
ref: 92033B
RING-SNAP
€ 2.00
92055
920551293
ref: 92055
RING-O, 21.5MM
€ 3.00
92200
922001370
ref: 92200
WASHER,INPUT
€ 2.50
92200A
922001371
ref: 92200A
WASHER,OUTPUT
€ 2.50
