CRANKCASE

KL250G5 SUPER SHERPA 2001 USA CANADA

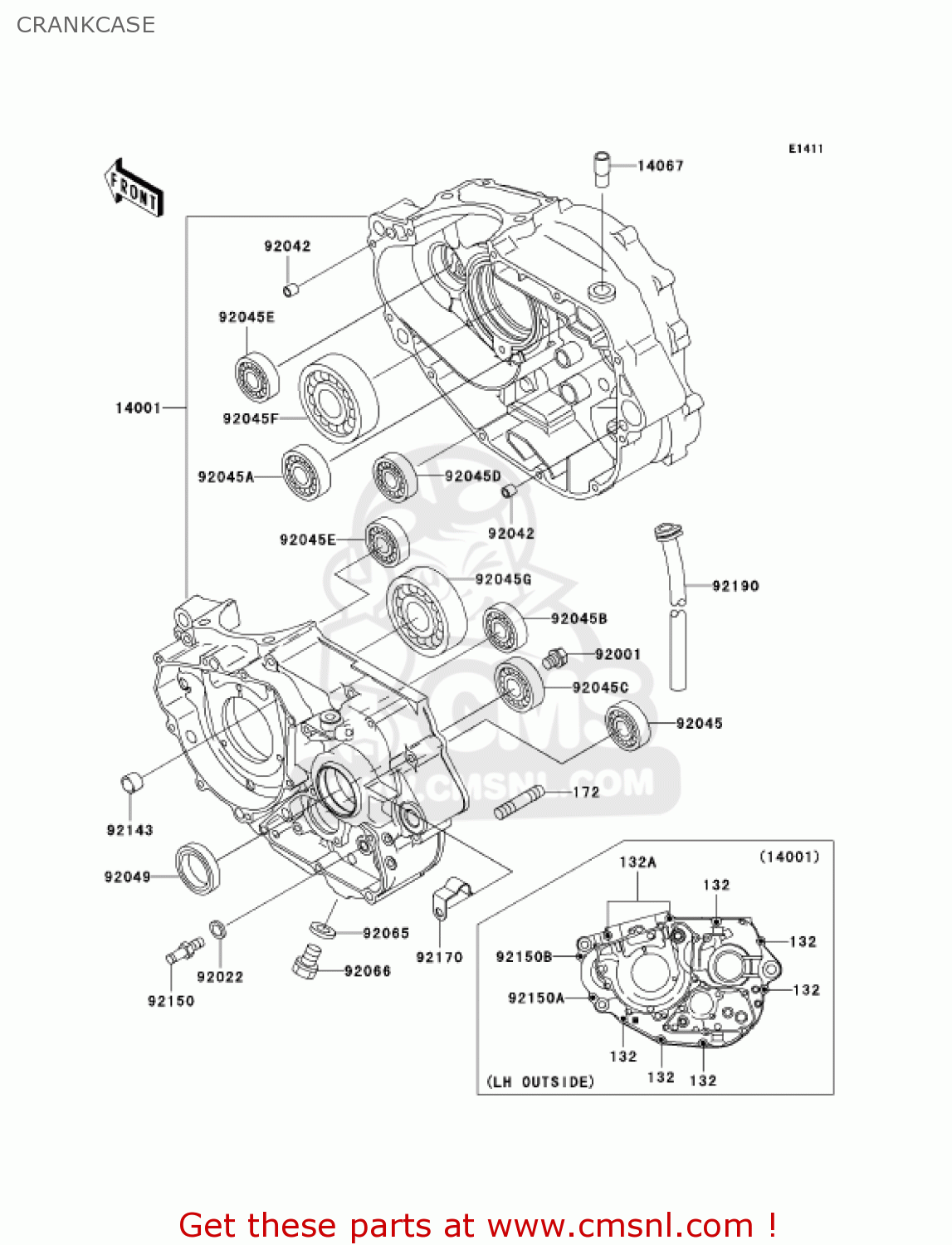

Crankcase diagram KL250G5 SUPER SHERPA 2001 USA CANADA

CRANKCASE KL250G5 SUPER SHERPA 2001 USA CANADA
CRANKCASE KL250G5 SUPER SHERPA 2001 USA CANADA
CRANKCASE KL250G5 SUPER SHERPA 2001 USA CANADA
prices are in EUR
ref
part #
description
quantity
132
132Y0650
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132Y0670
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
172
172G0680
ref: 172
STUD,6X80
172G0680
€ 1.50
14001
140015359
ref: 14001
SET-CRANKCASE
€ 970.00
14067
14067006
ref: 14067
BREATHER JOINT
14067006
€ 14.00
92001
920011829
ref: 92001
BOLT,W/WASHER,6X14
920011829
€ 2.50
92022
920221415
ref: 92022
WASHER,10.2X18X1.0,SK
920221415
€ 3.00
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92045
92045036
ref: 92045
BEARING-BALL,#6905
92045036
€ 29.00
92045A
920451041
ref: 92045A
BEARING-BALL,TMB204 J
920451041
€ 32.50
92045B
920451287
ref: 92045B
BEARING-BALL,TMB203LU
920451287
€ 25.00
92045C
920451288
ref: 92045C
BEARING-BALL,TMB205LU
920451288
€ 32.00
92045D
920451291
ref: 92045D
BEARING-BALL,TMB203
920451291
€ 19.50
92045E
920451346
ref: 92045E
BEARING-BALL,TMB302JR
920451346
€ 17.50
92045F
920451347
ref: 92045F
BEARING-BALL,TMB306JR
920451347
€ 40.50
92045G
920451348
ref: 92045G
BEARING-BALL,3TM-6207
920451348
€ 40.50
92049
920491577
ref: 92049
SEAL-OIL
920491577
€ 8.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
92066
920661241
ref: 92066
PLUG
920661241
€ 4.00
92143
921431263
ref: 92143
COLLAR
921431263
€ 3.00
92150
921501803
ref: 92150
BOLT,RETURN SPRING
921501803
€ 6.50
92150A
921501874
ref: 92150A
BOLT,SOCKET,6X50
€ 3.50
92150B
921501875
ref: 92150B
BOLT,SOCKET,6X35
921501875
€ 3.00
92170
921701803
ref: 92170
CLAMP,HARNESS
€ 3.50
92190
921901493
ref: 92190
TUBE
921901493
€ 8.00
