FENDERS
KL250G5 SUPER SHERPA 2001 USA CANADA

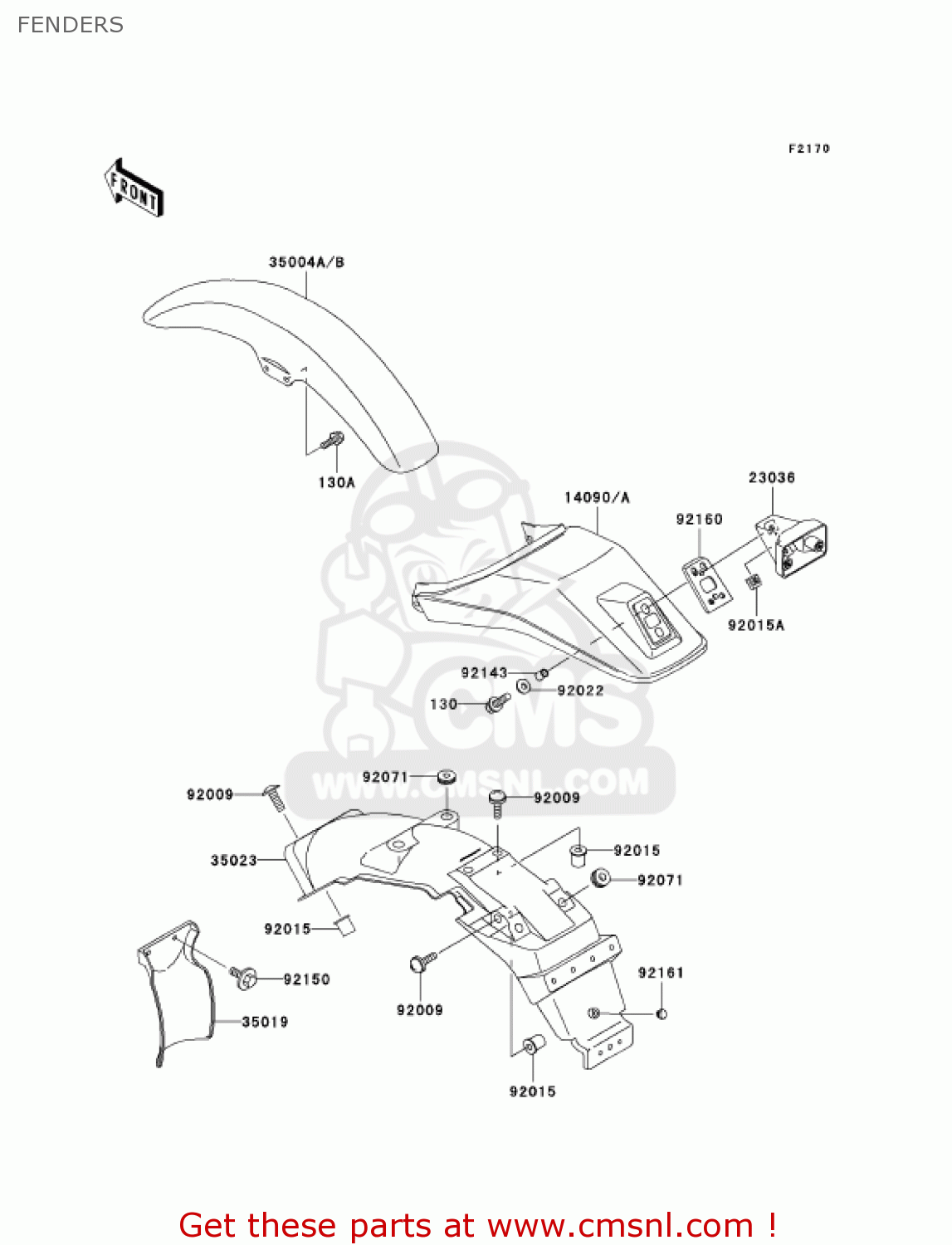

Fenders diagram KL250G5 SUPER SHERPA 2001 USA CANADA
FENDERS KL250G5 SUPER SHERPA 2001 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130G0520
ref: 130
BOLT-FLANGED
€ 1.00
130A
130G0616
ref: 130A
BOLT-FLANGED,6X16
€ 0.50
14090A
14090179668
ref: 14090A
COVER,SEAT,O.GREEN
€ 139.50
23036
230361146
ref: 23036
TAIL LAMP BRACKET
€ 34.50
35004B
35004136568
ref: 35004B
FRONT FENDER,LOW TYPE,OLIVE GREEN
€ 71.50
35019
350191345
ref: 35019
FLAP,RR FENDER,FR
€ 19.00
35023
350231530
ref: 35023
FENDER-REAR
€ 86.50
92009
920091663
ref: 92009
SCREW
€ 2.50
92015
920151700A
ref: 92015
NUT
€ 5.50
92015A
920151798
ref: 92015A
NUT
€ 4.50
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
€ 1.50
92071
92071056
ref: 92071
GROMMET
€ 2.50
92143
921431984
ref: 92143
COLLAR
€ 2.50
92150
921501133
ref: 92150
BOLT,6X14
€ 2.50
92160
921601826
ref: 92160
DAMPER,TAIL LAMP BRAC
€ 6.50
92161
921611084
ref: 92161
DAMPER
€ 1.50
