CARBURETOR
KL250G5 SUPER SHERPA 2001 USA CANADA

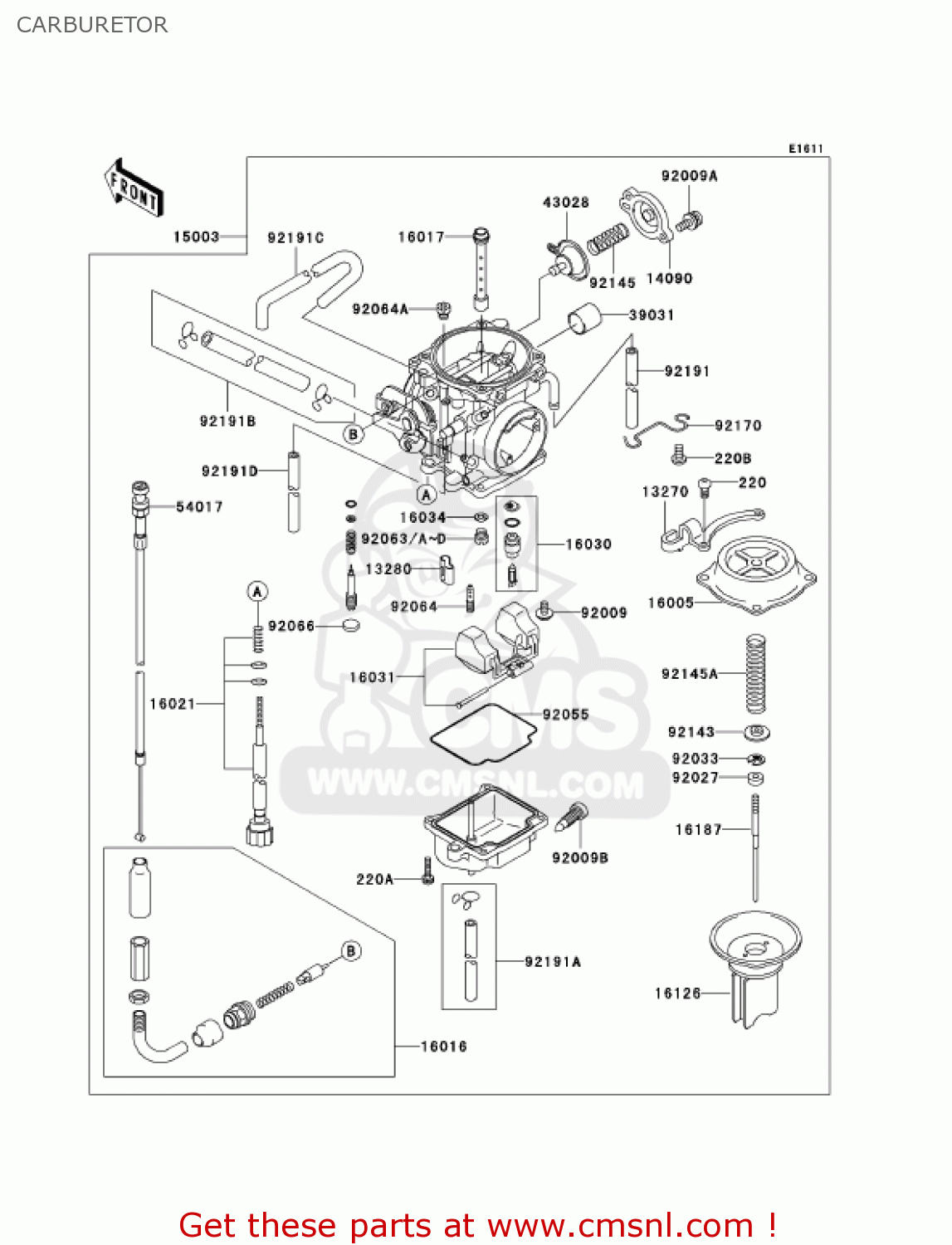

Carburetor diagram KL250G5 SUPER SHERPA 2001 USA CANADA
CARBURETOR KL250G5 SUPER SHERPA 2001 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13270
132701907
ref: 13270
PLATE,CHAMBER TOP
€ 46.00
13280
132801077
ref: 13280
HOLDER
€ 3.00
14090
140901873
ref: 14090
COVER,AIR CUT VALVE
€ 42.50
15003
150031641
ref: 15003
CARBURETOR-ASSY
€ 278.00
16005
160051080
ref: 16005
TOP-CHAMBER,MIXING
€ 29.50
16016
160161111
ref: 16016
STARTER PLUNGER
€ 33.00
16017
160171410
ref: 16017
JET,NEEDLE,P-3M
€ 25.50
16021
160211215
ref: 16021
SCREW-THROTTLE STOP
€ 32.50
16030
160301085
ref: 16030
VALVE-FLOAT
€ 37.50
16031
160311091
ref: 16031
FLOAT
€ 40.50
16034
16034001
ref: 16034
WASHER-MAIN JET
€ 2.50
16126
161261347
ref: 16126
VALVE,VACUUM
€ 156.50
16187
161871124
ref: 16187
JET,NEEDLE,#4C16
€ 21.00
39031
390311007
ref: 39031
CAP-END,CARBURETOR
€ 7.50
43028
430281026
ref: 43028
DIAPHGRAM,COASTING RC
€ 124.50
54017
540171196
ref: 54017
CABLE-STARTER
€ 27.50
92009
920091810
ref: 92009
SCREW
€ 2.50
92009A
920091811
ref: 92009A
SCREW
€ 2.50
92009B
920091812
ref: 92009B
SCREW,DRAIN
€ 8.00
92027
920271103
ref: 92027
RING,JET NEEDLE
€ 4.50
92033
920331290
ref: 92033
RING-SNAP
€ 3.00
92055
920551575
ref: 92055
RING-O,FLOAT CHAMBER
€ 13.00
92063
920631100
ref: 92063
JET-MAIN,#A127.5
€ 9.50
92063A
920631101
ref: 92063A
(OPTION)
JET-MAIN,#A122.5
€ 9.50
92063B
920631102
ref: 92063B
(OPTION)
JET-MAIN,#A125
€ 9.50
92063C
920631103
ref: 92063C
(OPTION)
JET-MAIN,#A130
€ 9.50
92063D
920631104
ref: 92063D
(OPTION)
JET-MAIN,#A132.5
€ 9.50
92064
920641183
ref: 92064
JET-PILOT,#A17.5
€ 12.00
92064A
920641205
ref: 92064A
JET,PILOT,#90
€ 9.50
92066
920661501
ref: 92066
PLUG,PILOT AIR SCREW
€ 2.50
92143
921431986
ref: 92143
COLLAR
€ 6.50
92145
921451103
ref: 92145
SPRING,AIR CUT VALVE
€ 9.00
92145A
921451104
ref: 92145A
SPRING,VACUUM VALVE
€ 16.00
92170
921701816
ref: 92170
CLAMP
€ 8.00
92191
921911199
ref: 92191
TUBE,5X8X400
€ 14.50
92191A
921911200
ref: 92191A
TUBE,3X7X350
€ 7.50
220
220D0410
ref: 220
SCREW-PAN-CROS
€ 2.00
220A
220D0412
ref: 220A
SCREW-PAN-CROSS,4X12
€ 0.50
220B
220D0510
ref: 220B
SCREW-PAN-CROS
€ 0.50
92191B
921911201
ref: 92191B
TUBE,5.3X10.5X175
€ 11.00
92191C
921911202
ref: 92191C
TUBE,L=290
€ 14.50
92191D
921911203
ref: 92191D
TUBE,3X5X350
€ 8.50
