FRAME
KL250G5 SUPER SHERPA 2001 USA CANADA

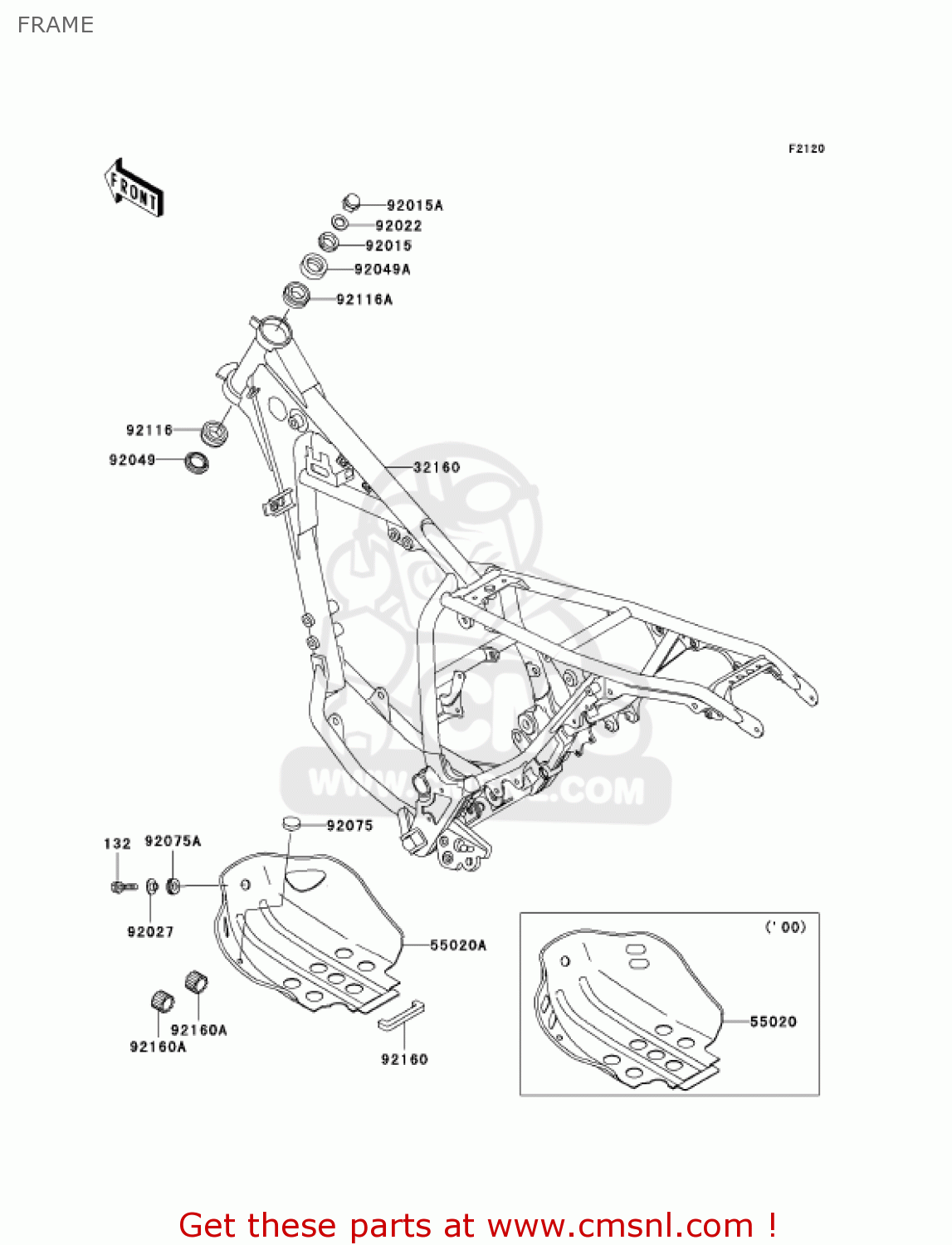

Frame diagram KL250G5 SUPER SHERPA 2001 USA CANADA
FRAME KL250G5 SUPER SHERPA 2001 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132V0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
32160
321601600EZ
ref: 32160
FRAME-COMP,C.GRAY
€ 1,212.50
55020A
550201734
ref: 55020A
GUARD,ENGINE
€ 209.50
92015
920151546
ref: 92015
NUT,25MM,T=12
€ 14.50
92015A
920151867
ref: 92015A
NUT,STEERING STEM,22M
€ 12.50
92022
920221873
ref: 92022
WASHER
€ 5.00
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92049
920491162
ref: 92049
SEAL-OIL,XMHE36X52X4J
€ 7.50
92049A
920491214
ref: 92049A
SEAL-OIL,STEERING STE
€ 11.00
92075
92075005
ref: 92075
DAMPER
€ 2.50
92075A
920751690
ref: 92075A
DAMPER,10X24X12
€ 3.00
92116
921161009
ref: 92116
BEARING R,HR320/28XJ
€ 41.00
92116A
921161052
ref: 92116A
BEARING-ROLLER,25X47X
€ 41.00
92160
921601835
ref: 92160
DAMPER
€ 4.00
92160A
921601884
ref: 92160A
DAMPER
€ 4.00
